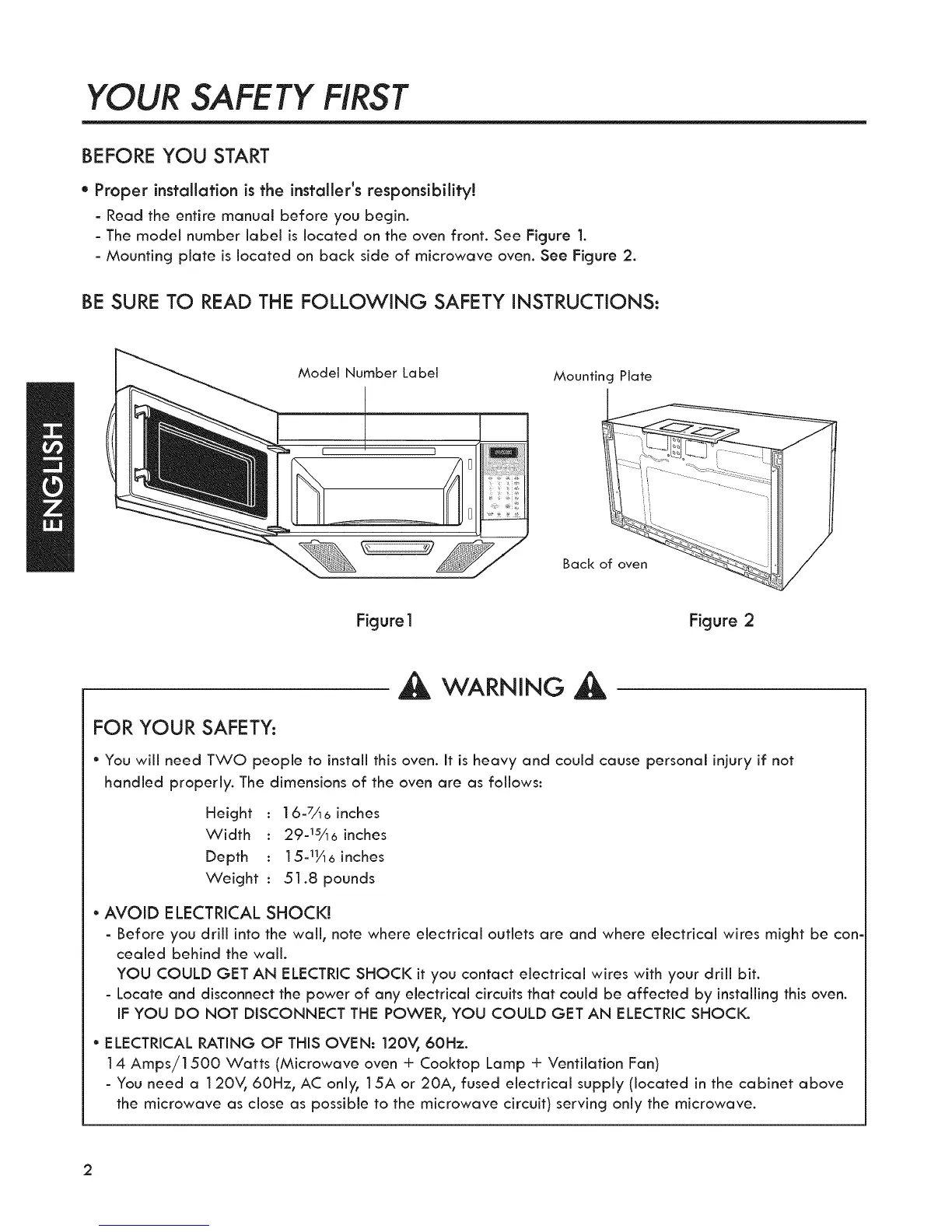

YOUR SAFETY FIRST
BEFORE YOU START
* Proper installation is the installer's responsibility!
- Read the entire manual before you begin.
- The model number label is located on the oven front. See Figure 1.
- Mounting plate is located on back side of microwave oven. See Figure 2.
BE SURE TO READ THE FOLLOWING SAFETY iNSTRUCTiONS:
Model Number Label
! J
Figurel
Mountinc Hate
Back of
Figure 2
WARNING
FOR YOUR SAFETY:
• You wiii need TWO people to install this oven. It is heavy and could cause personal injury if not
handled properly. The dimensions of the oven are as follows:
Height : 16-7,46 inches
Width : 29Js,46 inches
Depth : 15-1¼6 inches
Weight : 51.8 pounds
• AVOID ELECTRICAL SHOCK!
- Before you drill into the wail, note where electrical outlets are and where eiectricai wires might be con-
ceaied behind the wail.
YOU COULD GET AN ELECTRIC SHOCK it you contact electrical wires with your drill bit.
- Locate and disconnect the power of any electrical circuits that could be affected by installing this oven.
IF YOU DO NOT DISCONNECT THE POWER, YOU COULD GET AN ELECTRIC SHOCK.
• ELECTRICALRATING OF THiS OVEN: 120V, 60Hz.
14 Ampsi1500 Watts (Microwave oven + Cooktop Lamp + Ventilation Fan)
- You need a 120V, 60Hz, AC only, 15A or 20A, fused electrical supply (located in the cabinet above
the microwave as close as possible to the microwave circuit) serving only the microwave.
