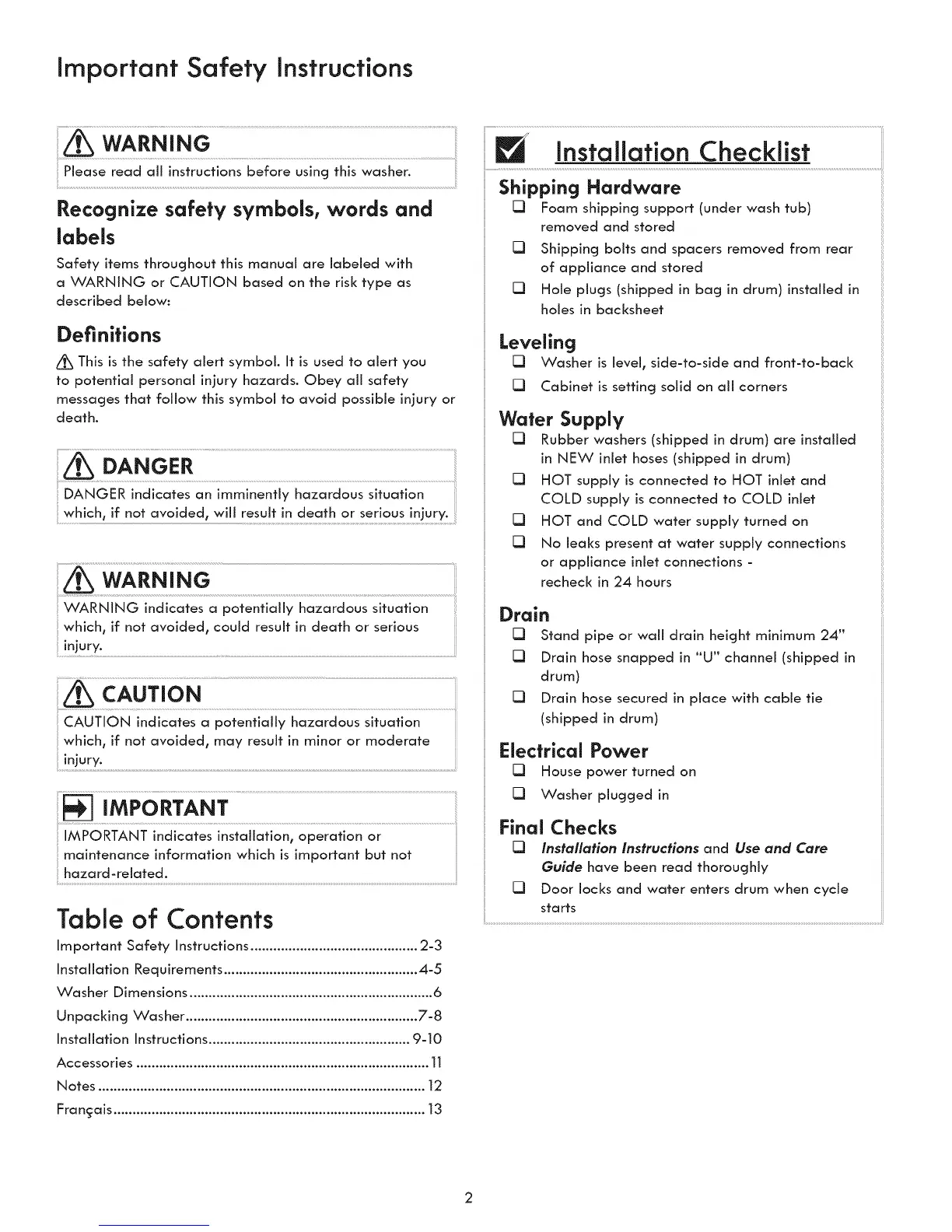

Important Safety Instructions
Please read all instructions before using this washer.
Recognize safety symbols, words and
labels
Safety items throughout this manual are labeled with
a WARNING or CAUTION based on the risk type as
described below:
Definitions
Z_ This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury or
death.
DANGER indicates an imminently hazardous situation
which, if not avoided, will ....
WARNING
which,ifnotavoided,couldresultindeathorserious
injury.
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
Table of Contents
Important Safety Instructions ............................................ 2-3
Installation Requirements ................................................... 4-5
Washer Dimensions ................................................................ 6
Unpacking Washer ............................................................. 7-8
Installation Instructions ..................................................... 9-10
Accessories ............................................................................. 11
Notes ...................................................................................... 12
Francois .................................................................................. 13
Installation Checklist
Shipping Hardware
[] Foam shipping support (under wash tub)
removed and stored
[] Shipping baits and spacers removed from rear
of appliance and stored
[] Hole plugs (shipped in bag in drum) installed in
holes in backsheet
Leveling
[] Washer is level, side-to-side and front-to-back
[] Cabinet is setting solid on aii corners
Water Supply
[] Rubber washers (shipped in drum) are installed
in NEW inlet hoses (shipped in drum)
[] HOT supply is connected to HOT inlet and
COLD supply is connected to COLD inlet
[] HOT and COLD water supply turned on
[] No leaks present at water supply connections
or appliance inlet connections -
recheck in 24 hours
[:)rain
[] Stand pipe or wall drain height minimum 24"
[] Drain hose snapped in "U" channel (shipped in
drum)
[] Drain hose secured in place with cable tie
(shipped in drum)
Electrical Power
[] House power turned on
[] Washer plugged in
Final Checks
[] Installation Instructions and Use and Care
Guide have been read thoroughly
[] Door Jacks and water enters drum when cycle
starts
