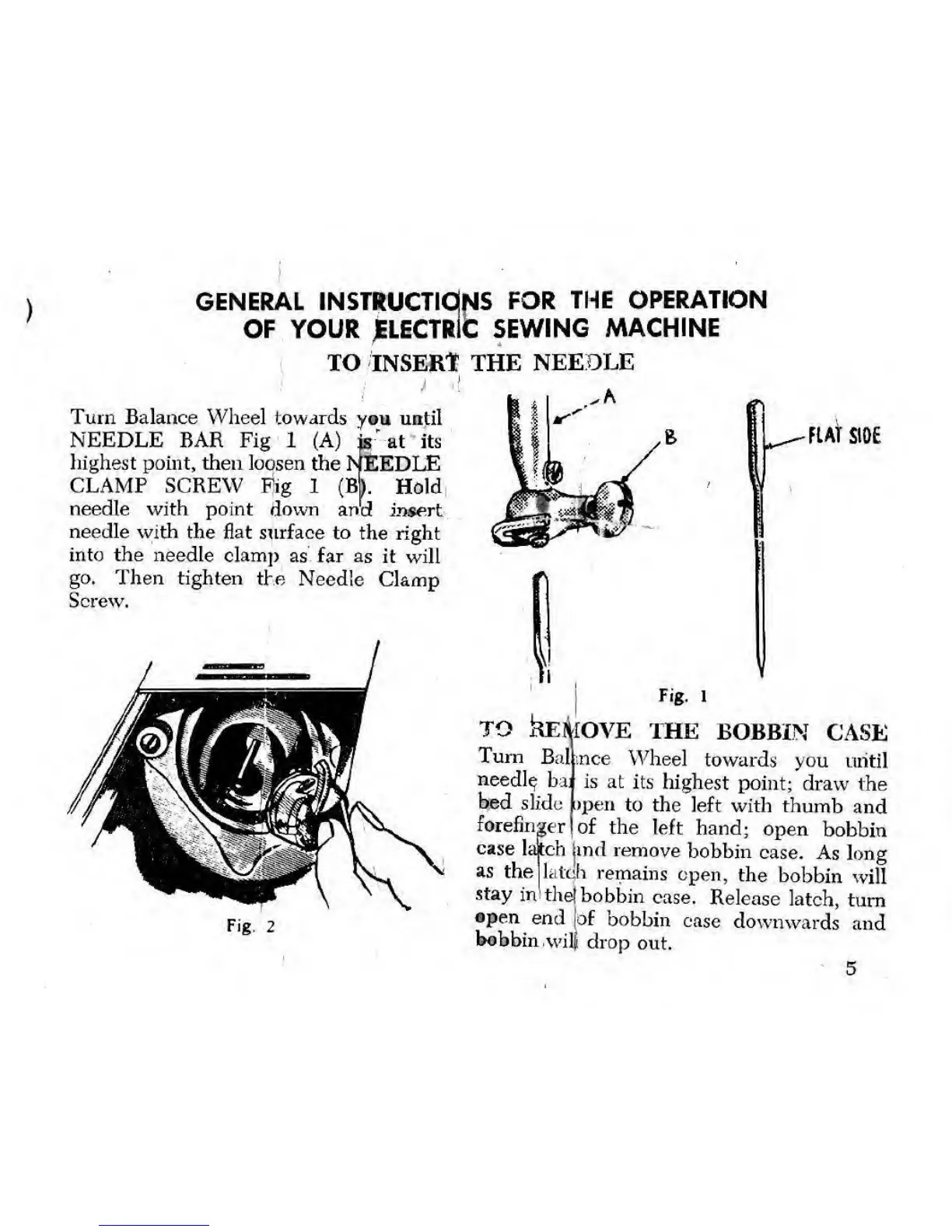

GENERAL INSTRUCTIONS
FOR
THE OPERATION
OF YOUR ELECTRIC
SEWING
MACHINE
TO
INSERT THE
NEEDLE
Turn Balance Wheel towards
yen until
NEEDLE
BAR Fig 1 (A)
fe at its
highest
point, then loosen the NEEDLE
CLAMP SCREW
Pig 1 (fil; Hold
needle
with point down and
insert
needle with the flat
surface to
the right
into the needle clamp
as far as
it will
go. Then
tighten the
Needle
Clamp
Screw.
FIAT
S10E
Fig.
2
Fig. 1
>VE
THE
BOBBIN
CASE
Turn
Bal.nce
Wheel
towards you
until
needl^
ba:
is at
its highest
point; draw
the
bed
slide:
>pen
to the
left with thumb
and
forefinger
|
of the left
hand;
open
bobbin
case laich
fend remove
bobbin
case.
As
long
as
the
I
latch
remains
open,
the
bobbin
will
stay
in: the|
bobbin
casei
Release
latch,
turn
open
end
[of bobbin
case
downwards
and
bobbin.
wili
drop
out.
5
