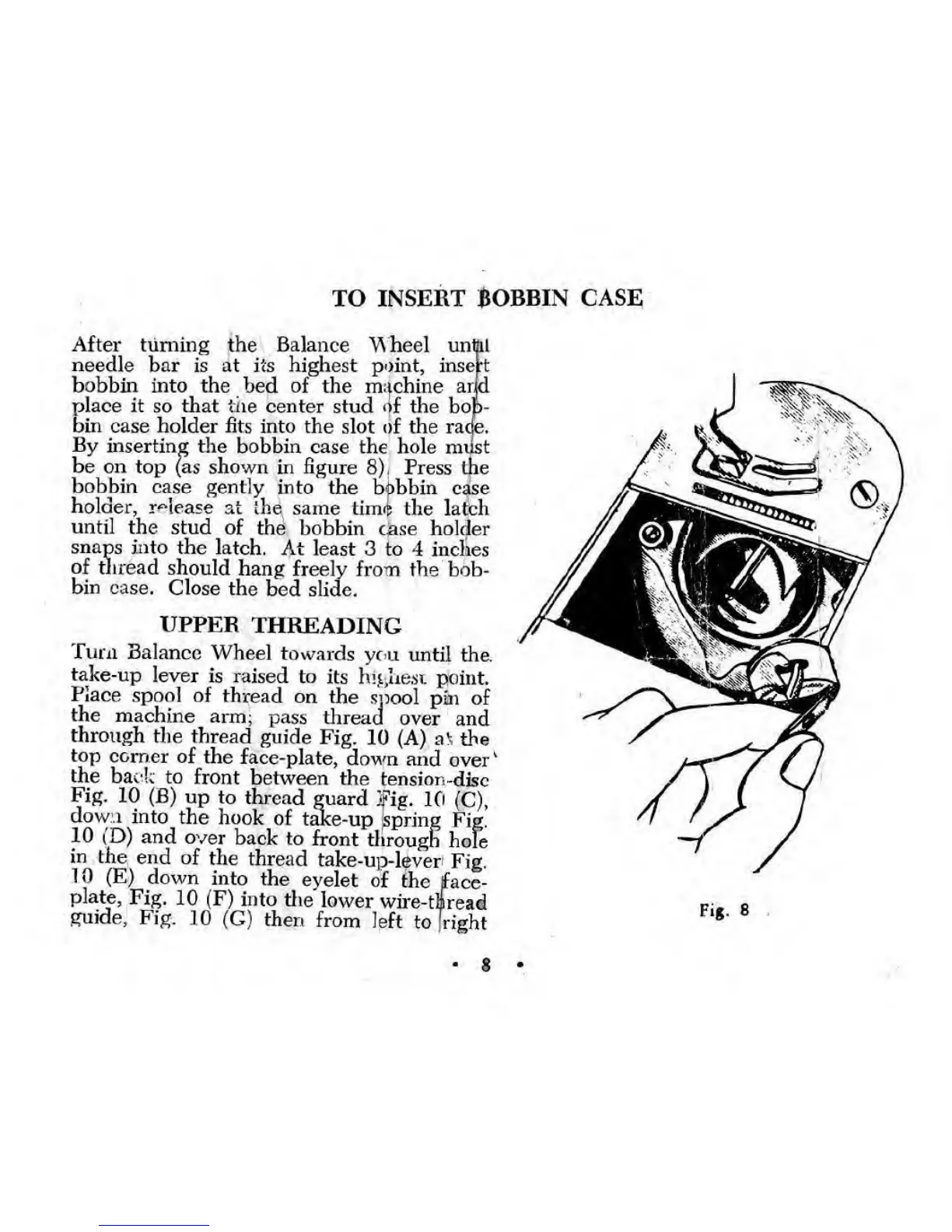

TO INSERT BOBBIN CASE
After turning the Balance "Wheel
unftl
needle bar
is
at
its
highest
point,
insert
bobbin into
the bed of the machine
arid
lace
it so that the center stud
of
the bop-
in case holder fits into
the slot of the rac(e.
By inserting
the bobbin case the hole must
be on
top (as shown in figure
8),
Press the
bobbin case gently into
the
bobbin
case
holder, release
at the
same
tim<fc
the lafch
until the
stud of the bobbin
case holder
snans into
the latch.
At least
3 to 4 inches
of thread
should
hang freely fro-n the
bob-
bin case.
Close the
bed
slide.
UPPER
THREADING
Turn
Balance Wheel
towards
you until
the.
take-up
lever
is raised
to its highest
point.
Place spool
of thread
on the
spool
pai of
the
machine
arm;
pass thread
over
and
through
the thread
guide
Fig. 10
(A)
the
top
corner
of the
face-plate,
down
and
over
v
the
back
to front
between the
tension-disc
Fig.
10 (B)
up to
thread
guard Fig.
10
(C),
dowii
into
the hook
of
take-up
Spring Fig.
10 (D) and
over
back to
front
through
hole
in the
end
of the
thread
take-up-lever
Fig.
10 (E)
down into
the
eyelet
of
the
face-
plate,
Fig.
10 (F) into
the
lower
wire-tttread
guide,
Fig.
10 (G)
then
from
left
to (right
•
