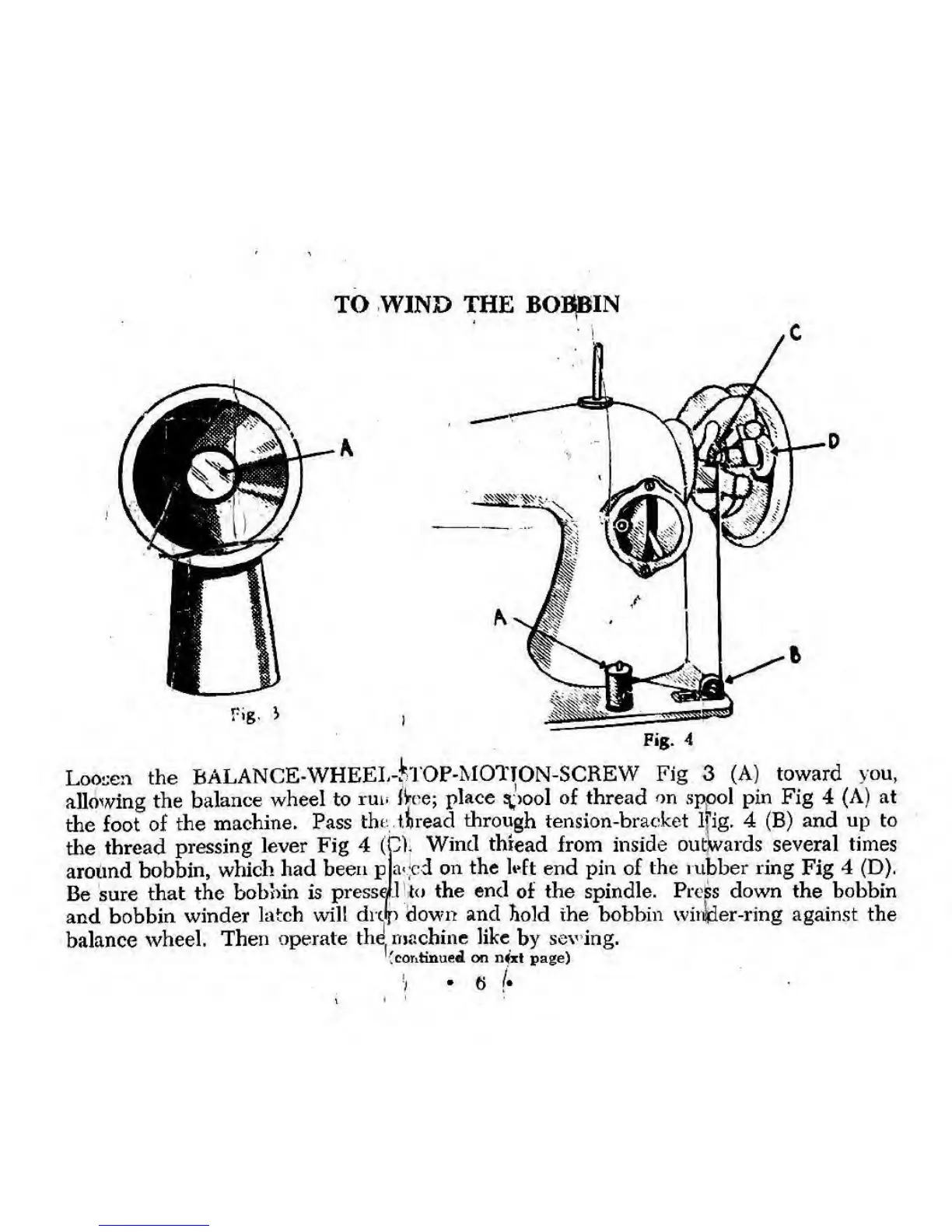

Kenmore C877.15 - Winding the Bobbin

TO WIND THE
BOBBIN
C
rig. \
Loosen the
BALANCE-
WHEEL-})!
OP-MOTION-SCREW Fig 3
(A)
toward
you,
allowing the
balance
wheel to
rut*
free;
place
spool of thread
on
sppol
pin
Fig 4
(A) at
the
foot of
the
machine.
Pass
the.. tiread
through tension-bracket
Ifig.
4 (B)
and up to
the thread
pressing
lever
Fig
4
(Ch Wind thread from
inside
oul
around
bobbin,
which had
been
p
a<;cd on the left
end
pin
of
the rubber ring
Fig
4 (D).
Be sure
that
the bobbin is
presse 1 to the
end
of
the spindle. Press down the bobbin
and
bobbin winder
latch will
drop down and hold the bobbin wirper-ring against the
balance
wheel. Then
operate
the machine like
by serving.
'
'continued on n«xt
page)
