8
9
1/4-20x1/2"
Machine Screw
Qty. 4
1/4-20
Flange Nut
Qty: 4
sheet metal screws
Qty. 3
#8x3/8"

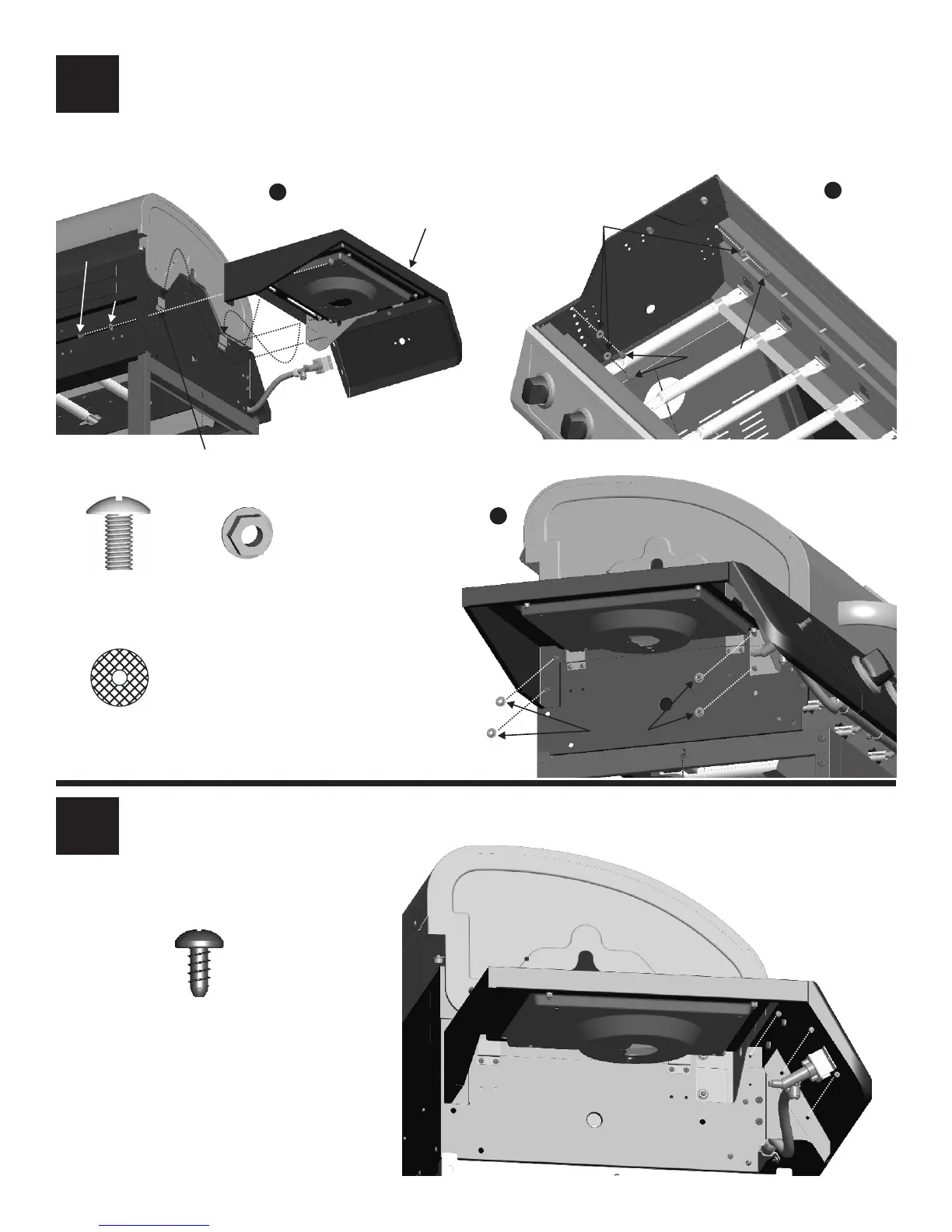

• Hook side wall of side burner shelf over support brackets on side of firebox.
washer and (1) 1/4-20x1/2” screw as shown (A).
• Inside firebox, insert (3) 7mm fiber washers and (3) 1/4-20x1/2” screws as shown (B).
• Attach side burner shelf with (4) 1/4-20 flange nuts on each side (C).
At back of firebox, insert (1) 7mm fiber
• Attach fascia to firebox with #8x3/8” sheet metal screws.
7mm
Fiber Washer
Qty. 4
A
B
C
Support Bracket
1/4-20x1/2"
Screw
7mm
Fiber Washer
1/4-20
Flange Nut
Back of Firebox
1/4-20x1/2"
Screw
7mm Fiber
Washer
Left Side Shelf
22 • 466225712
To Next Page
