#8 Wing Nut
Qty. 1
#8X3/8” SS Screw
Qty. 2
Burner Tube
Valve
Venturi Clip
Sideburner
Ignitor Wire
Sideburner Bezel
A
B
D
E
C
Side Burner
Sideburner Control Knob
#8 wing nut
Side Burner Tube
Valve

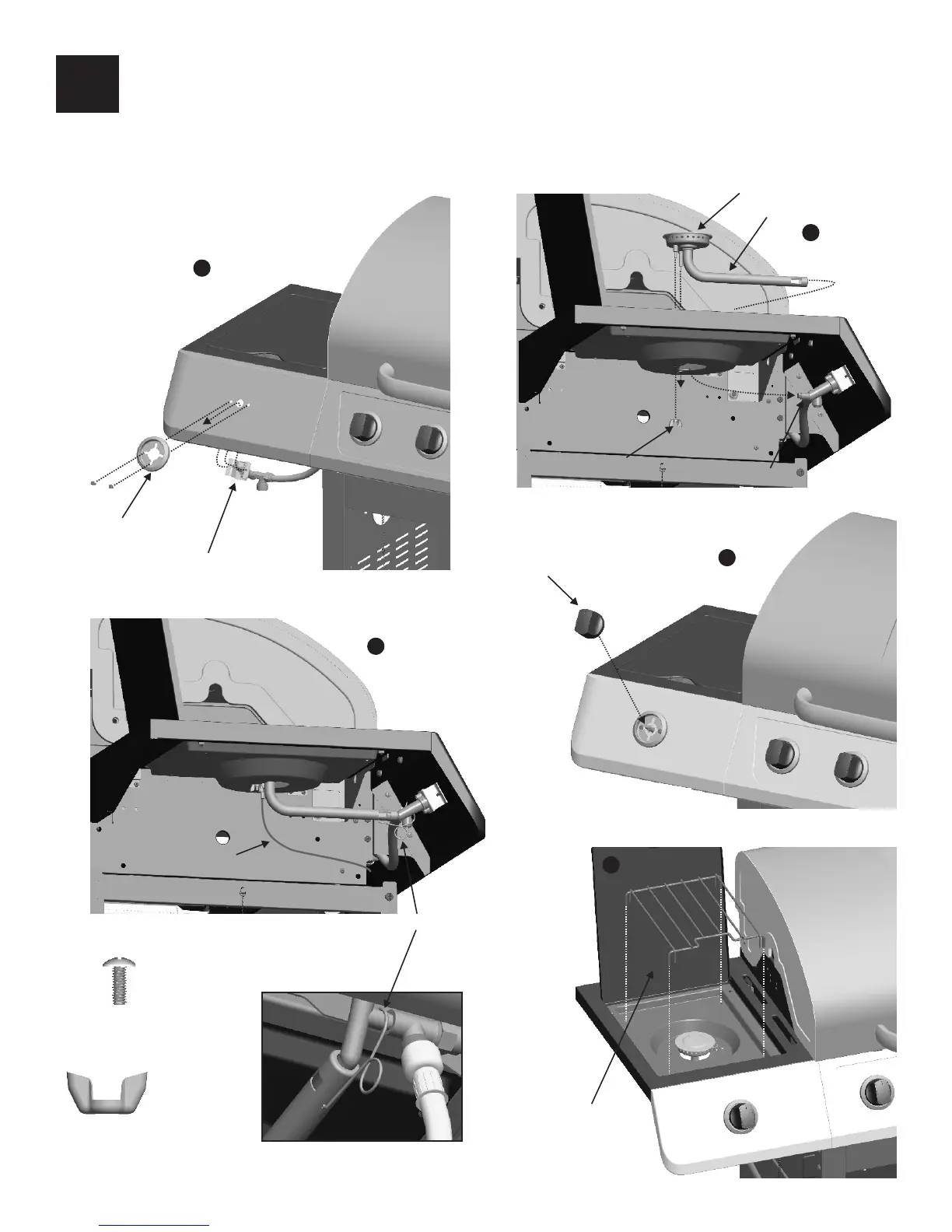

• Attach side burner bezel and valve with #8x3/8” SS screws. (A).
• Place side burner into shelf. Make sure valve is inside side burner tube. Attach side burner with #8 wing nut (B). Hook
venturi clip to side burner tube and around manifold. Attach side burner ignitor wire to ignitor as shown (C).
• Press side burner control knob onto valve stem (D).
• Place grate onto side burner shelf (E).
Sideburner Valve
E
Sideburner Grate
466225712 • 23
