Kenmore D02 M90221 - Page 24

11
#10-24x1/2"
Machine Screw
Qty: 4
5mm Flat Washer
Qty: 4
5mm Lock Washer
Qty: 4

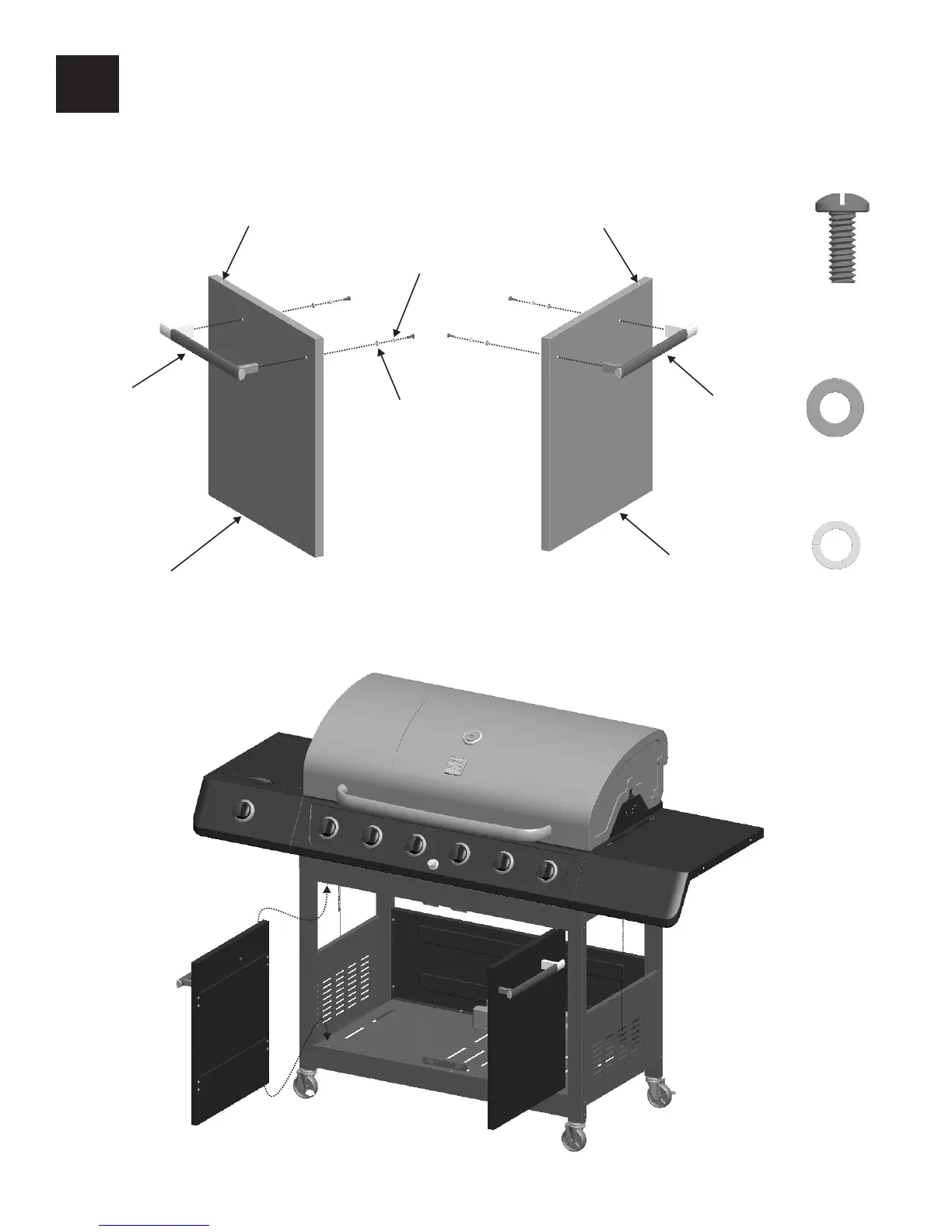

• Attach handle to door with #10-24x1/2” machine screws, 5mm flat washers and 5mm lock washers (A).
• Insert hinge pin on bottom shelf into hole in door. Press upper hinge pin in front door brace, align hinge hole on top of
door, and release hinge pin into door.
Left Handle
Left Door
Right Handle
Right Door
Hinge Pin hole
Hinge Pin hole
5mm Lock Washer
5mm Flat Washer
A
24 • 466225712
