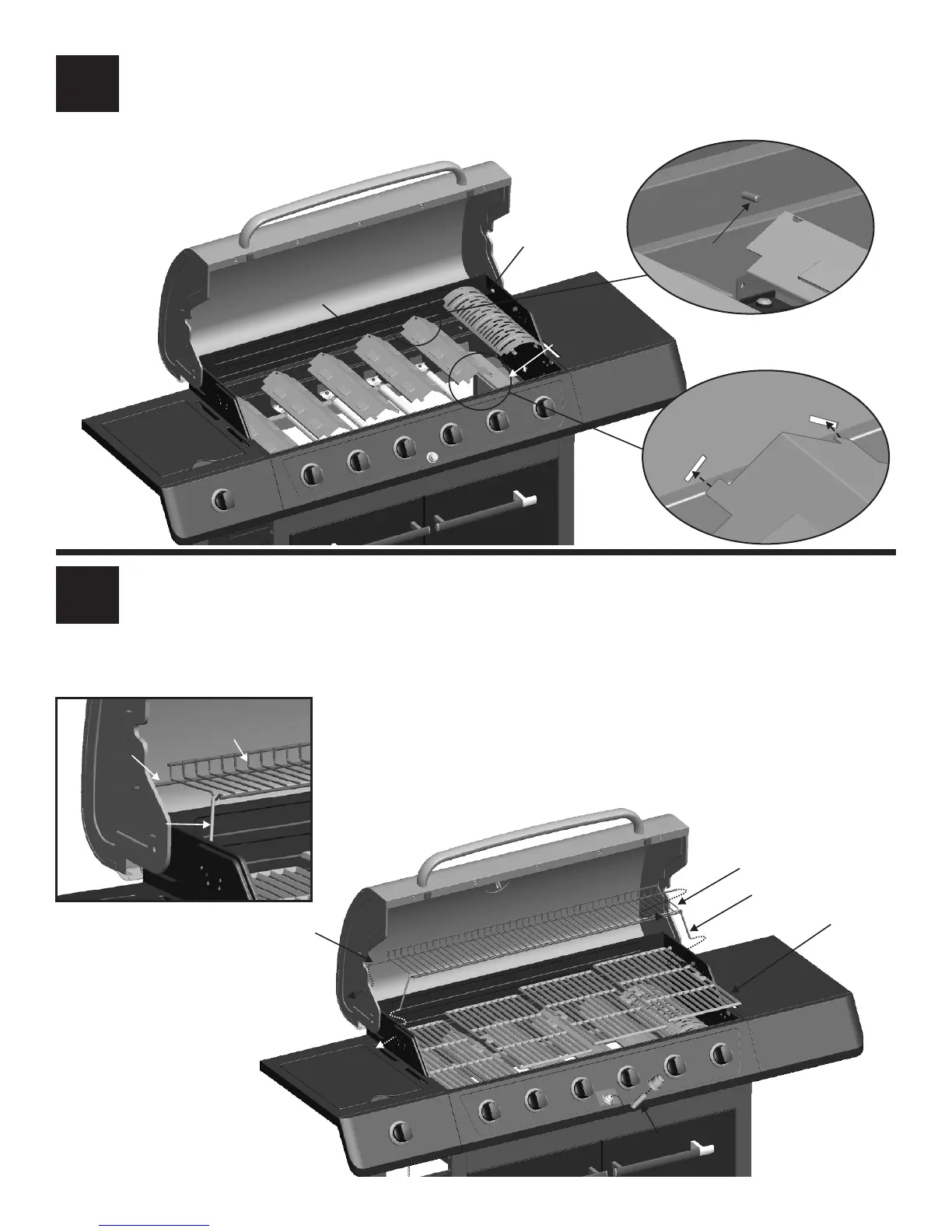

12
• Place heat tents over tube burners and the heat tent for sear burner over sear burner by inserting tabs into slots in front
of firebox. Opposite ends of heat tents rest on pins in back of firebox.
Heat Tent
Back of Firebox
Pin
Heat Tent
Front of Firebo
x
Sear Burner
Heat Tent,
F/Sear Burner
(Stainless Steel)
Heat Tent
(Black)
13
• Place cooking grates onto grate rests.
• Insert ends of Warming Rack pivot wire into holes in sides of gril lid. Insert ends of Warming Rack leg wire into holes in
sides of firebox.
NOTE: Pivot and leg wires, running side-to-side, should be under wires running front-to-back. If pivot and leg wires are
on top, Warming Rack is installed upside-down.
• Unscrew ignitor cap and place AA battery into ignitor slot with positive end (+) facing outward. Screw ignitor cap onto
ignitor.
Warming Rack
Leg Wire
Cooking Grate
Pivot Wire
AA Battery
+
–
Pivot Wire
(side to side)
Leg Wire
(side to side)
Warming Rack Wires
(front-to-back)
