B
7

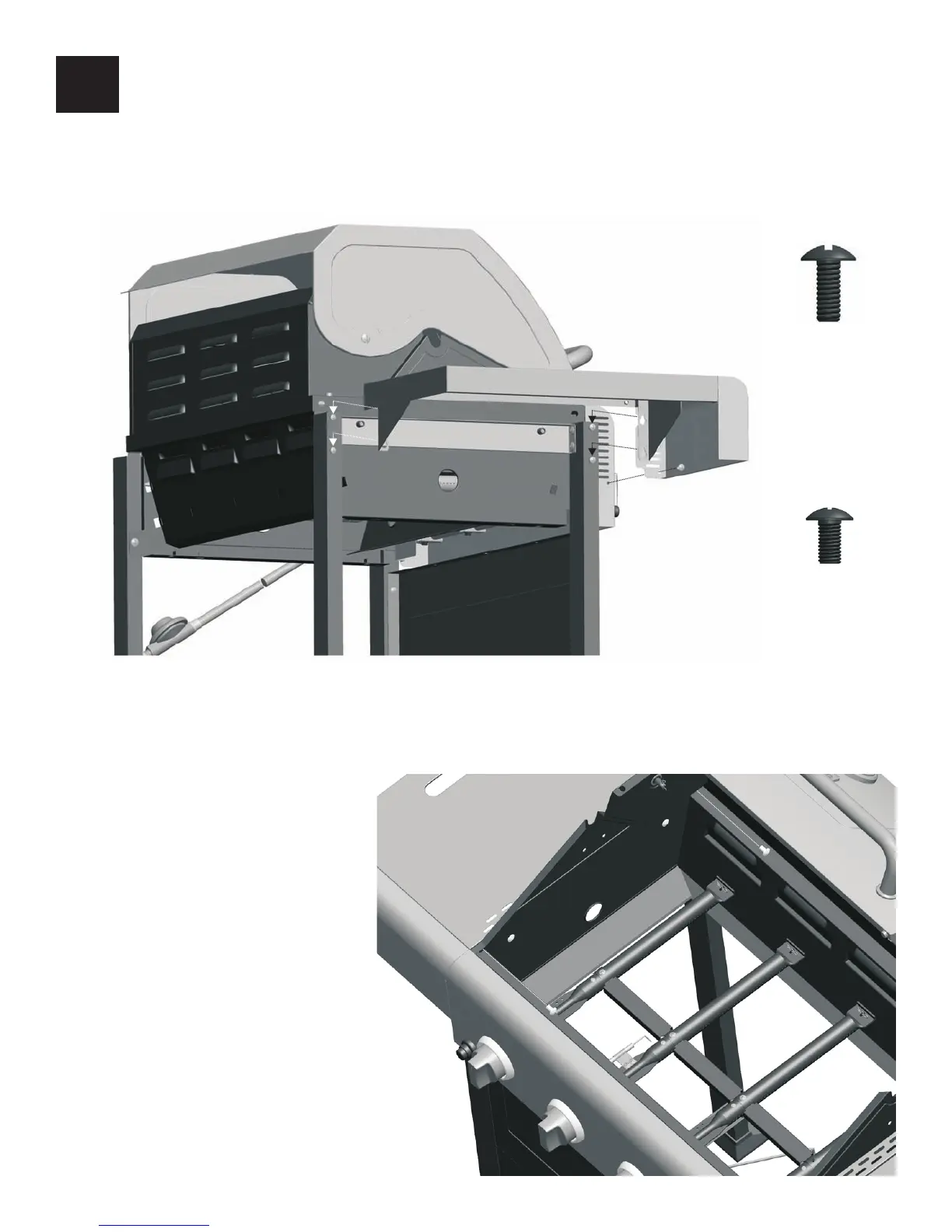

Left Side Shelf
□ Loosen 4 preassembled screws in the left rear leg and left front leg, shown (A), to within 1/8" of
surface. Hang left side shelf onto the screws through the keyhole slots in the shelf. Fully tighten all
preassembled screws. Use one #8-32x3/8"machine screw to attach left fascia to control panel as
shown (A1).
□ Use two 1/4-20x1/2" machine screws to attach left side shelf to firebox from inner firebox as
shown (B).
A
Machine Screws
Qty. 2
1/4-20x1/2"
Machine Screws
Qty. 1
#8-32x3/8"
466424712 · 19
A1
To Next Page
