Side Burner Shelf
A
B
Machine Screws
Qty. 2
1/4-20x1/2"

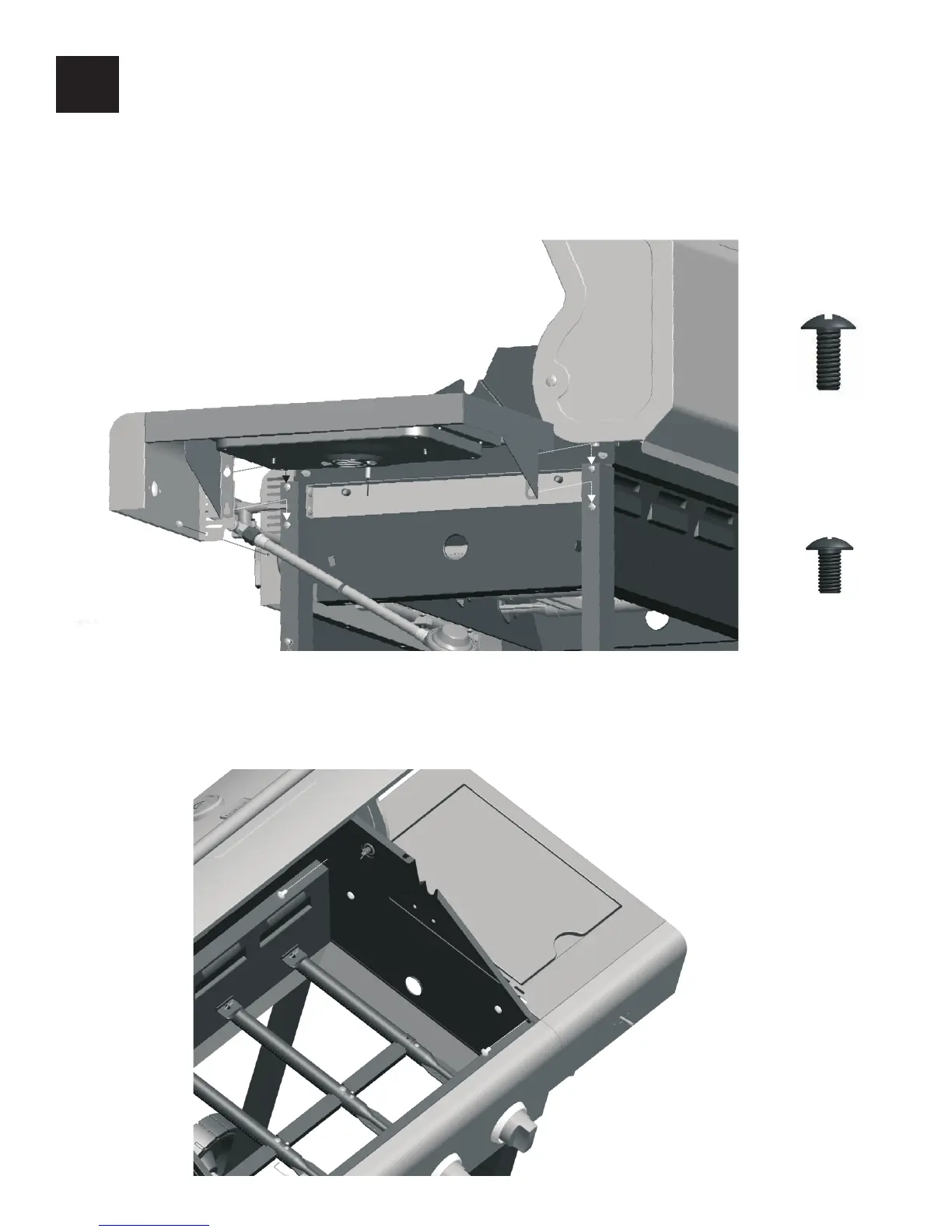

□ Raise side burner lid and remove side burner grate.
□ Loosen 4 preassembled screws in the right rear leg and right front leg, shown (A), to within 1/8" of
surface. Hang side burner shelf onto the screws through the keyhole slots in the shelf. Fully tighten
all preassembled screws. Use one #8-32x3/8" machine screw to attach right fascia to control panel
as shown (A1).
□ Use two 1/4-20x1/2" machine screws to attach side burner shelf to firebox as shown (B).
Machine Screws
Qty. 1
#8-32x3/8"
20 · 466424712
A1
To Next Page
