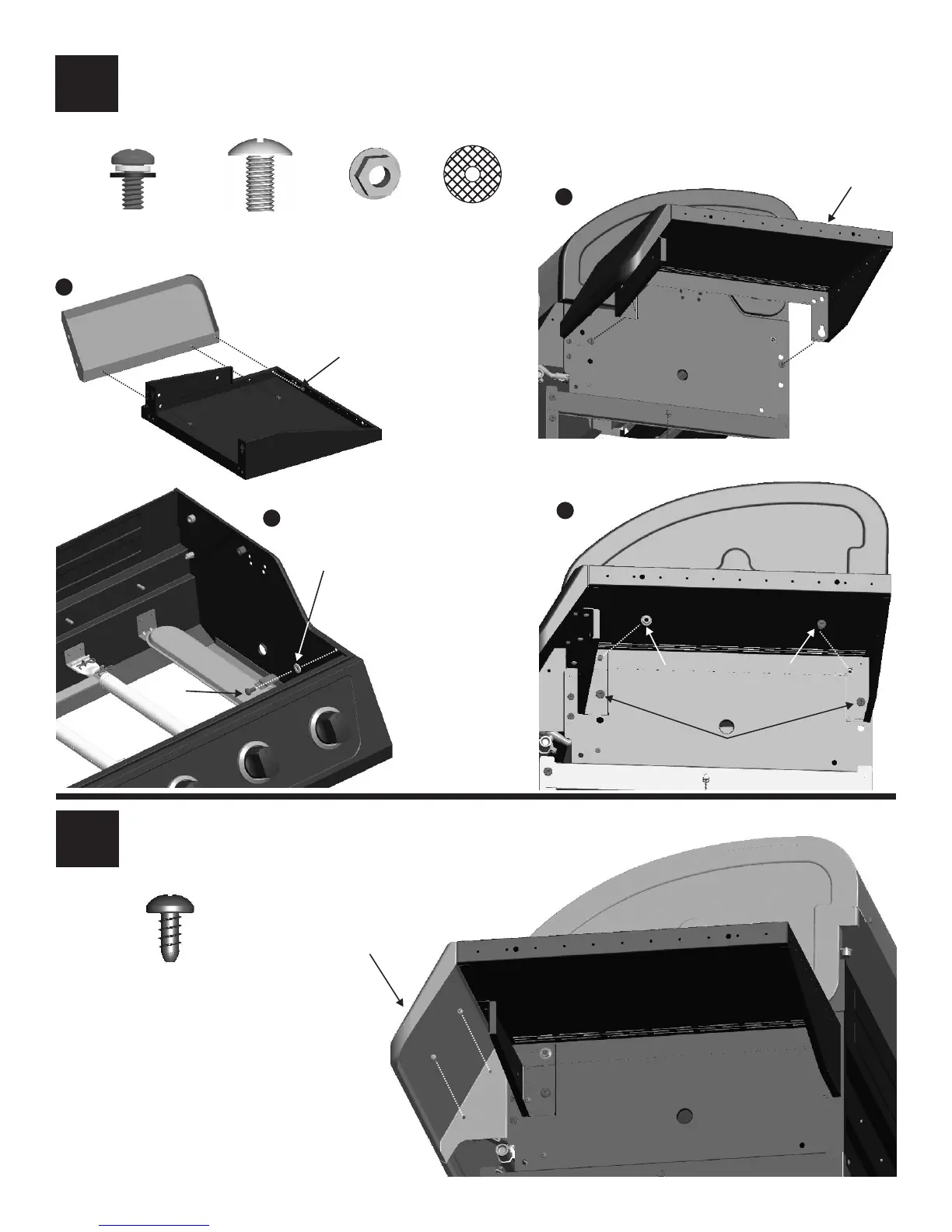

• Attach right side fascia to right side shelf with #10-24x3/8" screw assemblies (A).
• Hook the right side shelf to firebox by the pre-assembled screws (B).
• Inside firebox, insert 7mm fiber washer and 1/4-20x1/2” screw as shown (C).
• Attach shelf with 1/4-20x1/2" screw and 1/4-20 flange nuts, and fasten the two pre-assembled screws (D).
D
B
C
1/4-20
Flange Nut
1/4-20x1/2"
Screw
7mm
Fiber Washer
Qty. 1
1/4-20x1/2"
Machine Screw
Qty. 2
1/4-20
Flange Nut
Qty. 1
1/4-20x1/2"
Screw
7mm
Fiber Washer
Tighten the screws
7
8
#8x3/8"
Sheet Metal Screws
Qty. 2
• Attach fascia to firebox with #8x3/8” sheet metal screws.
Right Side Shelf
Fascia,
Right Side Shelf
466226113 • 21
#10-24x3/8" screw
assembly
#10-24x3/8" screw
assembly
Qty. 3
A
To Next Page
