Kenmore D02 M90348 - Page 22

B
1/4-20x1/2"
Screw
7mm
Fiber Washer
1/4-20
Flange Nut
Side Burner Shelf
D
1/4-20x1/2"
Screw
22 • 466226113
9
10
#8x3/8"
sheet metal screws
Qty. 2

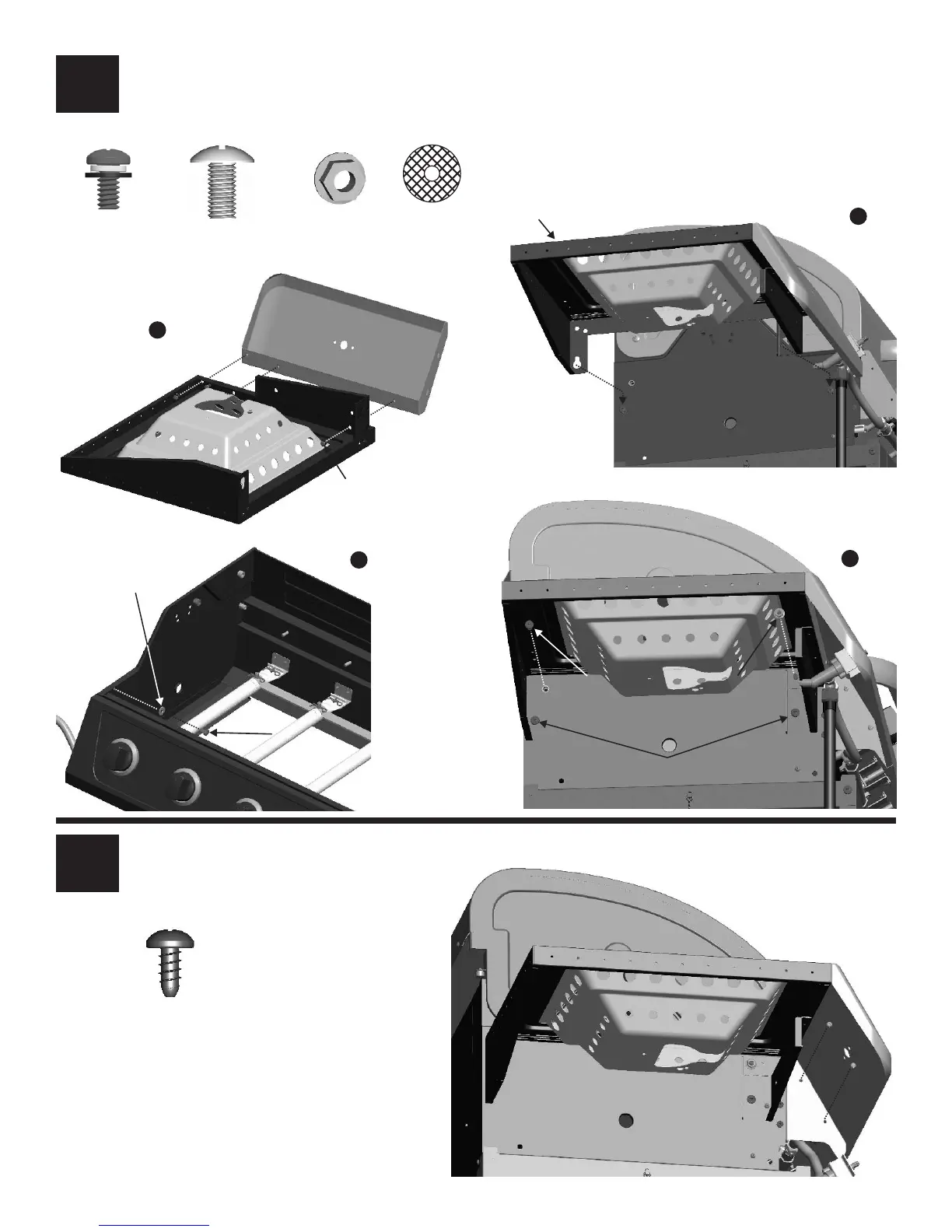

• Attach fascia to firebox with #8x3/8” sheet metal screws.
• Attach left side fascia to left side shelf with #10-24x3/8" screw assemblies (A).
• Hook the side burner shelf to firebox by the pre-assembled screws (B).
• Inside firebox, insert 7mm fiber washer and 1/4-20x1/2” screw as shown (C).
• Attach shelf with 1/4-20x1/2" screw and 1/4-20 flange nuts, and fasten the two pre-assembled screws (D).
Tighten the screws
7mm
Fiber Washer
Qty. 1
1/4-20x1/2"
Machine Screw
Qty. 2
1/4-20
Flange Nut
Qty. 1
#10-24x3/8" screw
assembly
#10-24x3/8"
screw assembly
Qty. 3
A
C
