Kenmore D02 M90348 - Page 23

Burner Tube
Valve
Venturi Clip
Sideburner
Ignitor Wire
Side Burner Valve
Side Burner Bezel
A
B
D
C
Side Burner
Side Burner Control Knob
Side Burner Tube
Valve
466226113 • 23
11
#8 Wing Nut
Qty. 1
#8-32X3/8"
Stainless Steel Screw
Qty. 2
#8 wing nut

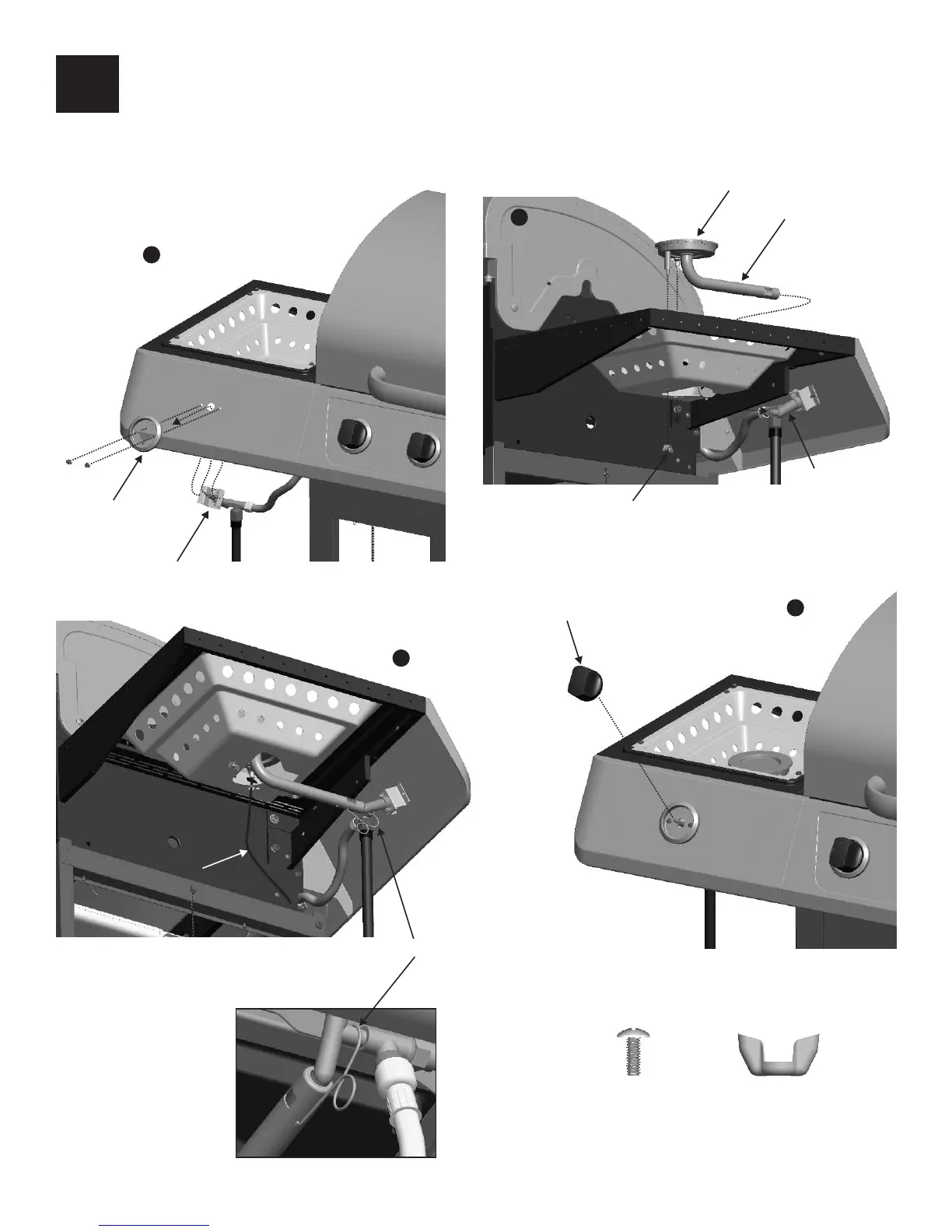

• Attach side burner bezel and valve with #8-32x3/8” Stainless Steel screws. (A).
• Place side burner into shelf. Make sure valve is inside side burner tube. Attach side burner with #8 wing nut (B). Hook
venturi clip to side burner tube and around manifold. Attach side burner ignitor wire to ignitor as shown (C).
• Press side burner control knob onto valve stem (D).
