22
Reversing Door Swing
Reassembling the door
no. 6-7
no. 1-5

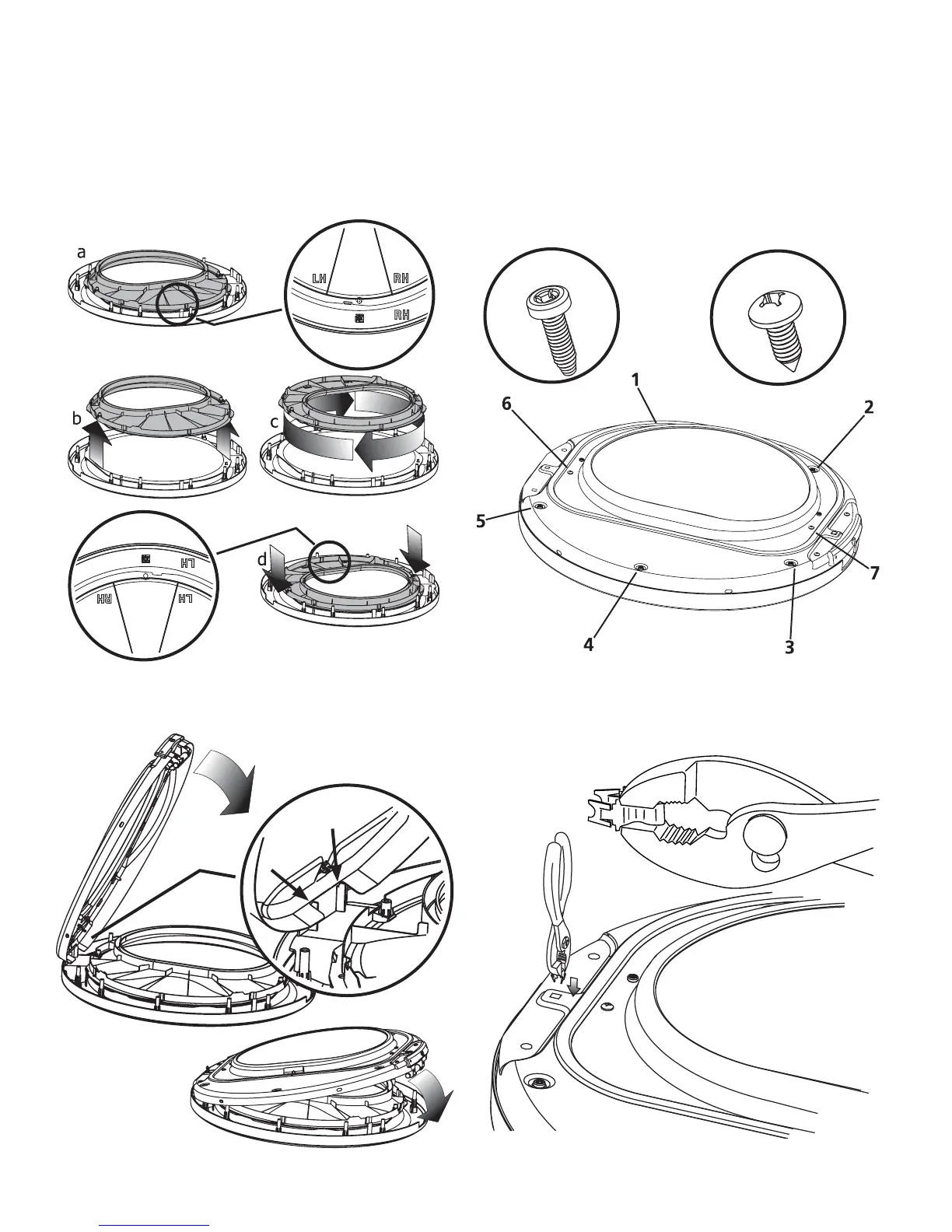

1. Lift the inner glass ring. Rotate it 180 degrees, reinstall
on outer door, lining up indicators - “LH” for left-hand
hinge or “RH” for right-hand hinge.
2. Rest the opening of the inner door at a 90 degree
angle on the supports for the hinge cutout cover. Pivot
the inner door down onto the outer door.
3. Replace indented head screws (no. 1-5) removed earlier.
Take care not to strip out the plastic holes.
4. Replace pan head screws (no. 6-7) removed earlier.
Take care not to strip out the plastic holes.
5. Locate new metal strike supplied with dryer manuals.
Grip new strike with pliers as shown below. Firmly insert
the strike so it is oriented vertically.
