Back Panel and Tank Baffle

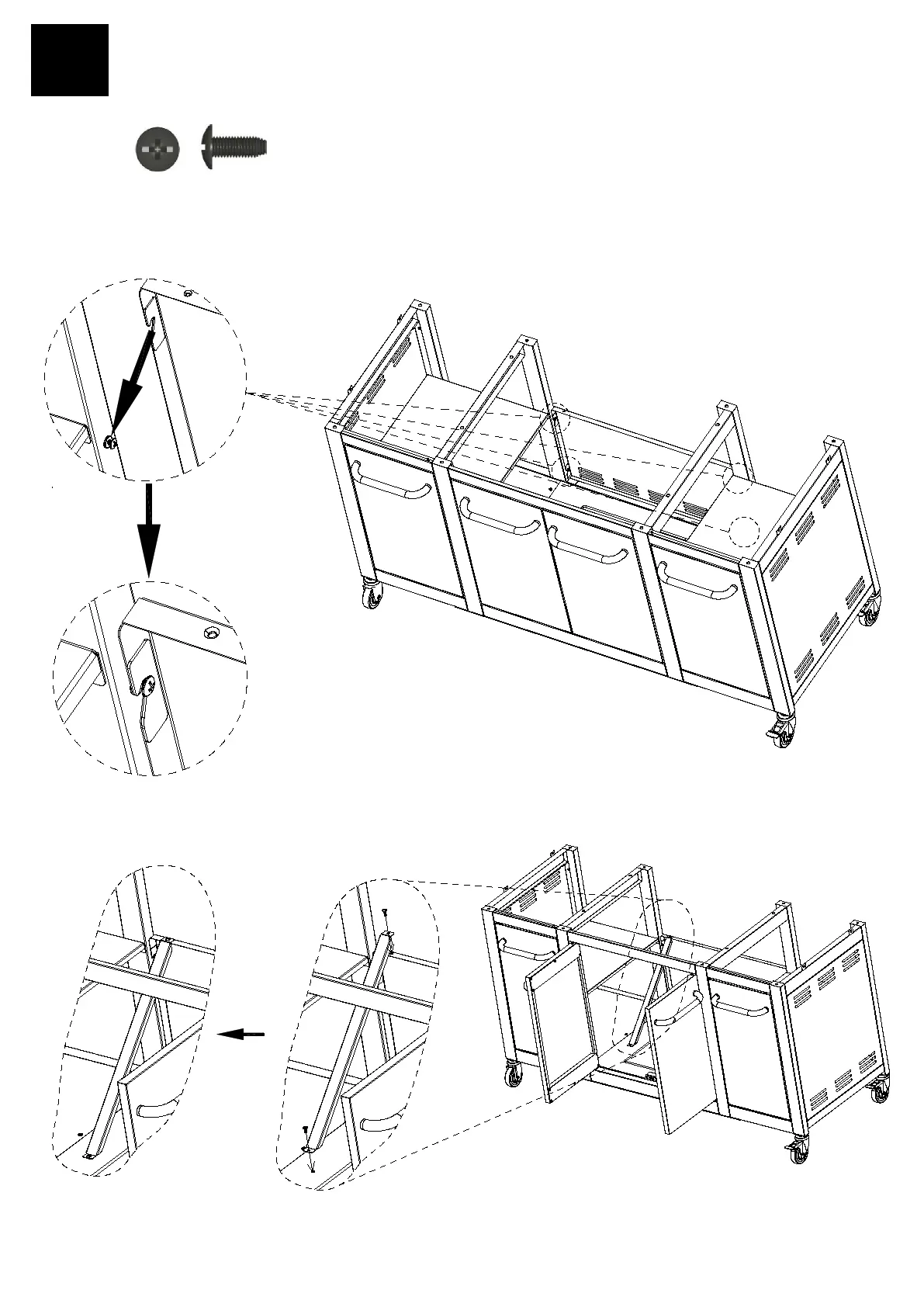

□ Clip the Back Panel into (4) Pre-installed M4x10 Screws as shown. Tighten all the Screws.(A)
□ Use (2) M4x10 Screws to attach Tank Baffle to Back Panel and Middle Cart Bottom Panel as shown. (B)
25
8
M4X10 Screw Qty: 2 pcs
B
A
