Kenmore PG-40407S0LF-1 - Grill Head and Final Setup

Grill Head to Cart
□ This step requires two people to lift and position grill head onto middle cart.
□ Remove the tie wraps securing the regulator hose to the underside of the grill head. Pull the hose and igniter wires out to the
side of the grill head.

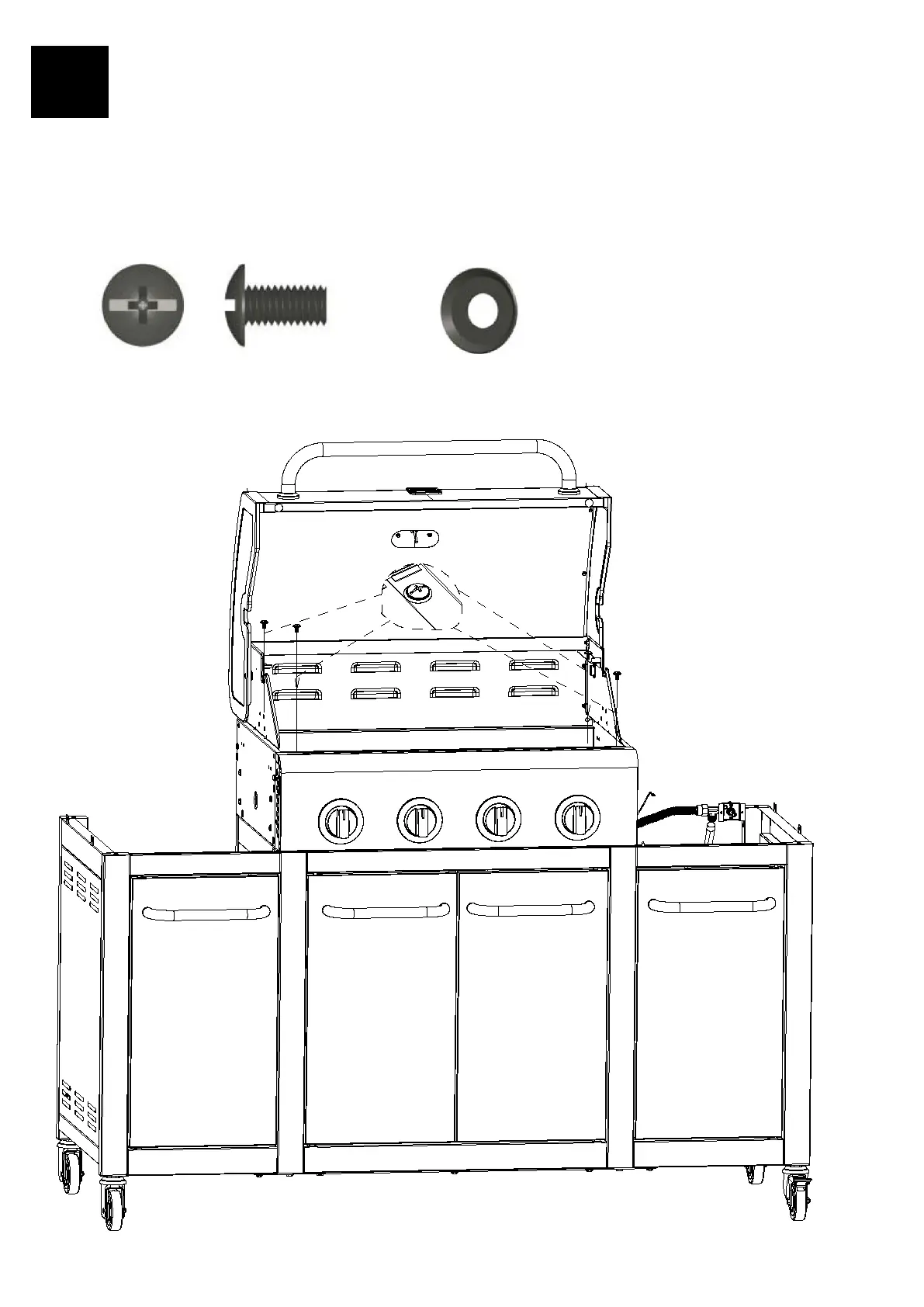

□ Carefully lower the grill head onto the middle cart. Push the descending hose and regulator through the middle leg
opening so that it hangs into the right cart. Open lid and attach head to middle cart with (4) M6x15 Screws and (4) M6
Compression Washers as shown.
26
9
M6X15 Screw Qty: 4 pcs
M6 Compression Washer Qty: 4 pcs
