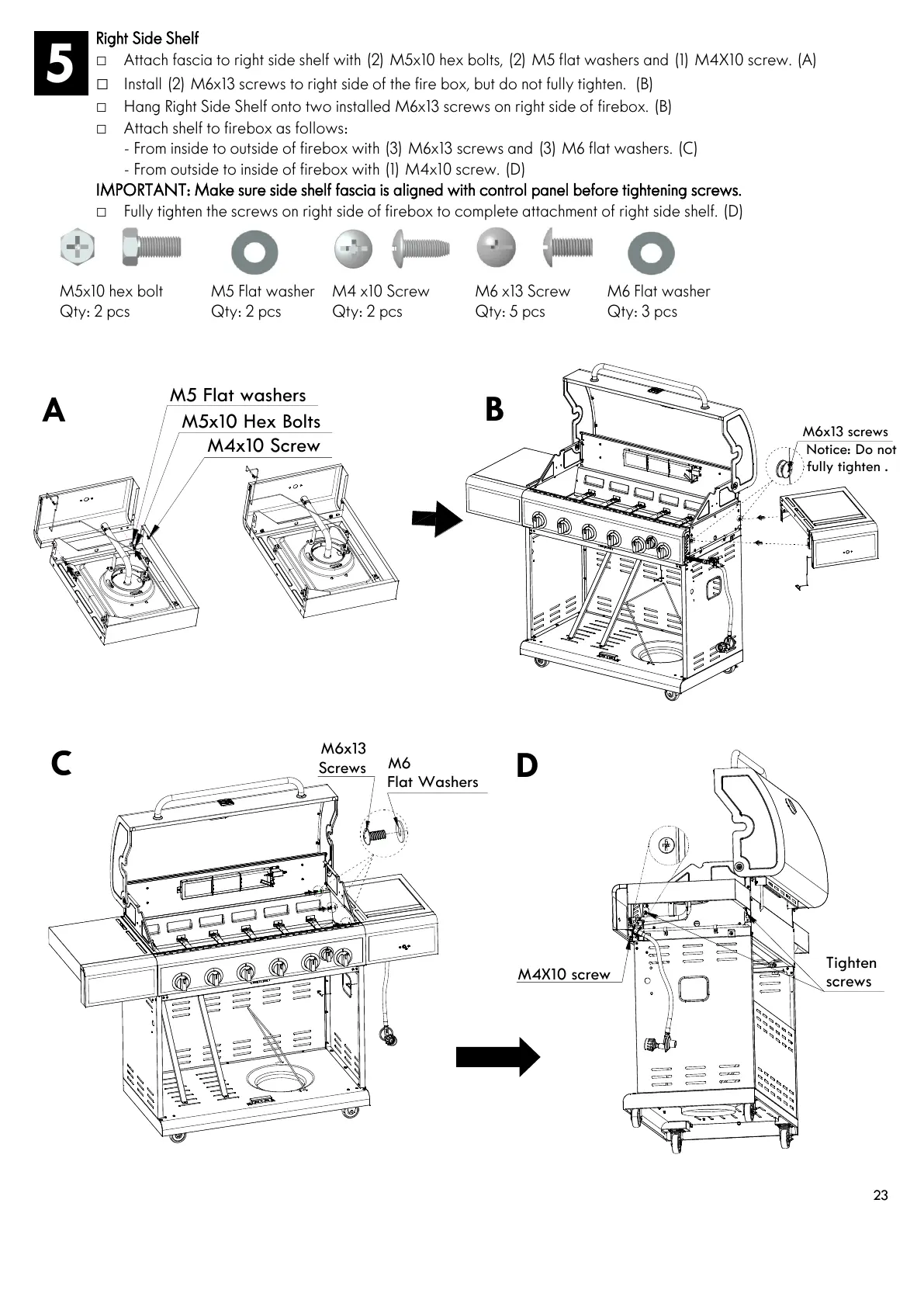

Right Side Shelf
□ Attach fascia to right side shelf with (2) M5x10 hex bolts, (2) M5 flat washers and (1) M4X10 screw. (A)
□ Install (2) M6x13 screws to right side of the fire box, but do not fully tighten. (B)
□ Hang Right Side Shelf onto two installed M6x13 screws on right side of firebox. (B)
□ Attach shelf to firebox as follows:
- From inside to outside of firebox with (3) M6x13 screws and (3) M6 flat washers. (C)
- From outside to inside of firebox with (1) M4x10 screw. (D)
IMPORTANT: Make sure side shelf fascia is aligned with control panel before tightening screws.
□ Fully tighten the screws on right side of firebox to complete attachment of right side shelf. (D)
