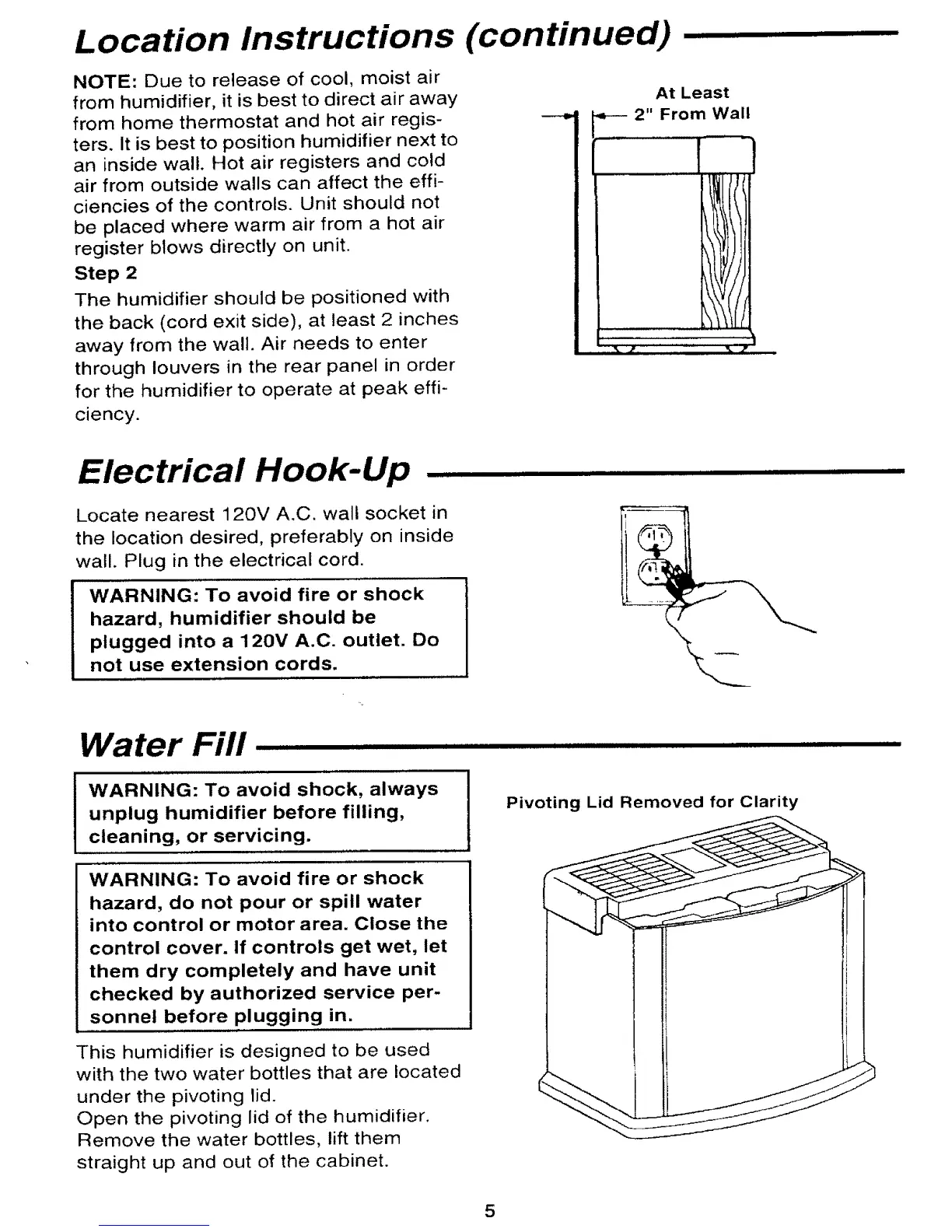

Location Instructions (continued) ,,,,
I i i iiIIiii i
NOTE: Due to release of cool, moist air
from humidifier, it is best to direct air away
from home thermostat and hot air regis-
ters. It is best to position humidifier next to
an inside wall. Hot air registers and cold
air from outside walls can affect the effi-
ciencies of the controls. Unit should not
be placed where warm air from a hot air
register blows directly on unit.
Step 2
The humidifier should be positioned with
the back (cord exit side), at least 2 inches
away from the wall. Air needs to enter
through louvers in the rear panel in order
for the humidifier to operate at peak effi-
ciency.
At Least
2" From Wall
i , ,,,t
°' t
Electrical Hook-Up ....
Locate nearest 120V A.C. wall socket in
the location desired, preferably on inside
wail. Plug in the electrical cord.
WARNING: To avoid fire or shock
hazard, humidifier should be
plugged into a 120V A.C. outlet. Do
not use extension cords.
j iiiiiiiiiiiiiiiiiiiiiiiiiiii i iiiil!llllllllllllllll ii
Water Fill ....
WARNING: To avoid shock, always
unplug humidifier before filling,
cleaning, or servicing.
WARNING: To avoid fire or shock
hazard, do not pour or spill water
into control or motor area. Close the
control cover. If controls get wet, let
them dry completely and have unit
checked by authorized service per-
sonnel before plugging in.
This humidifier is designed to be used
with the two water bottles that are located
under the pivoting lid.
Open the pivoting lid of the humidifier.
Remove the water bottles, lift them
straight up and out of the cabinet.
Pivoting Lid Removed for Clarity
5
