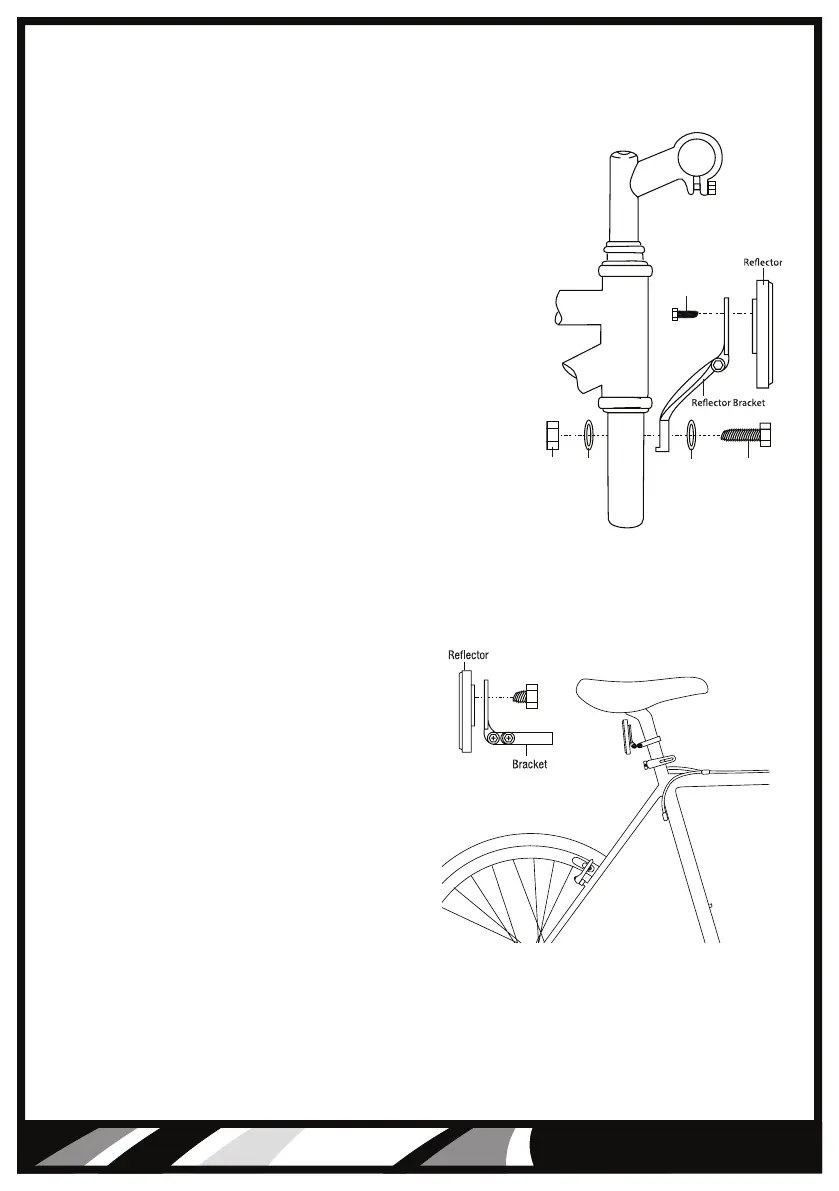

FORK MOUNT REFLECTORS
First insert one washer onto the hex bolt and insert hex bolt
through the reflector bracked and then through the fork.
Next, insert a second washer onto the bolt and thread a hex
nut onto the bolt behind the fork. Tighten bolts until snug,
making sure the reflector is in an upright position.
CAUTION: Be sure the reflector is vertical to the ground.
If the reflector is aimed up or down, oncoming headlights
may not reflect properly in the reflector.
REAR REFLECTOR MOUNT ON SEAT POST
First attach the reflector to the bracket with the
reflector screw. Next, remove the clamp screw
and open the clamping reflector bracket. Place
clamping reflector bracket around the seat post.
If the clamp is too loose, insert the shim inside
the clamp. Tighten the clamp screw to hold the
reflector assembly in place. Finally adjust the
reflector assembly in place and ensure that it is
upright and facing away from the bike.
CAUTION: Be sure the reflector is vertical to the
ground. If the reflector is aimed up or down,
oncoming headlights may not reflect properly in
the reflector.
ASSEMBLING YOUR BIKE
Hex
Bolt
Washer
Fork
WasherHex
Nut
Screw
