Kenwood DMX8019DABS User Manual

Basic Operations
14

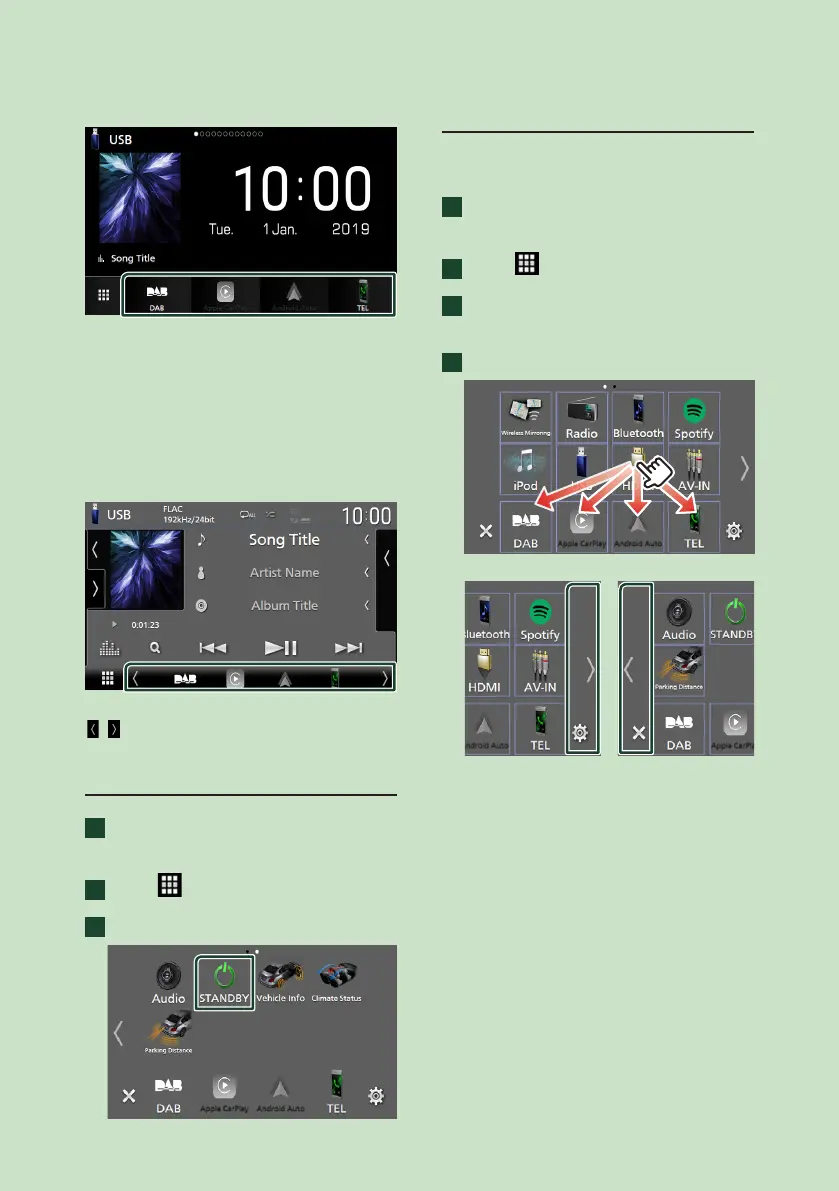

To select the playback source on the
HOME screen
The 4 items displayed on the source selection
screen with large icons are shown on the
HOME screen.
You can change the items displayed on this
area by customizing the source selection
screen. (P.14)
To select the playback source on the
source control screen
Display source selection icons by touching
[
]/[ ] or flicking left or right on the source
control screen, then select a playback source.
Put the unit in standby
1
Press the [HOME] button.
 HOME screen appears.
2
Touch [ ].
3
Touch [STANDBY].
Customize Short-cut source icons
on HOME screen
You can arrange the positions of the source
icons as you like.
1
Press the [HOME] button.
 HOME screen appears.
2
Touch [ ].
3
Touch and hold the icon which you want
to move in the customizing mode.
4
Drag the icon to the desired position.
Changes the page

Kenwood DMX8019DABS Specifications

General

Display type	TFT
Built-in display	Yes
Display diagonal	6.95 \
Display resolution	800 x 480 pixels
DIN size	2 DIN
Output power	200 W
Product color	Black
Frequency range	20 - 88000 Hz
Disc types supported	No
Audio output channels	4.0 channels
Equalizer bands quantity	13
Maximum power per channel	50 W
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	98.5 dB
USB version	2.0
Bluetooth range	10 m
Bluetooth version	5.0
Bluetooth profiles	A2DP, AVRCP, HFP, PBAP, SPP
Line outputs (RCA)	1
USB ports quantity	2
USB direct playback	-
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Video formats supported	H.264, MKV, MPEG1, MPEG2, MPEG4, WMV
AM band range	531 - 1701 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, DAB, DAB+, FM
Operating temperature (T-T)	-10 - 60 °C
Cables included	DC, USB

Weight and Dimensions

Depth	153 mm
Width	182 mm
Height	112 mm
Weight	1700 g
