Quick Start Guide

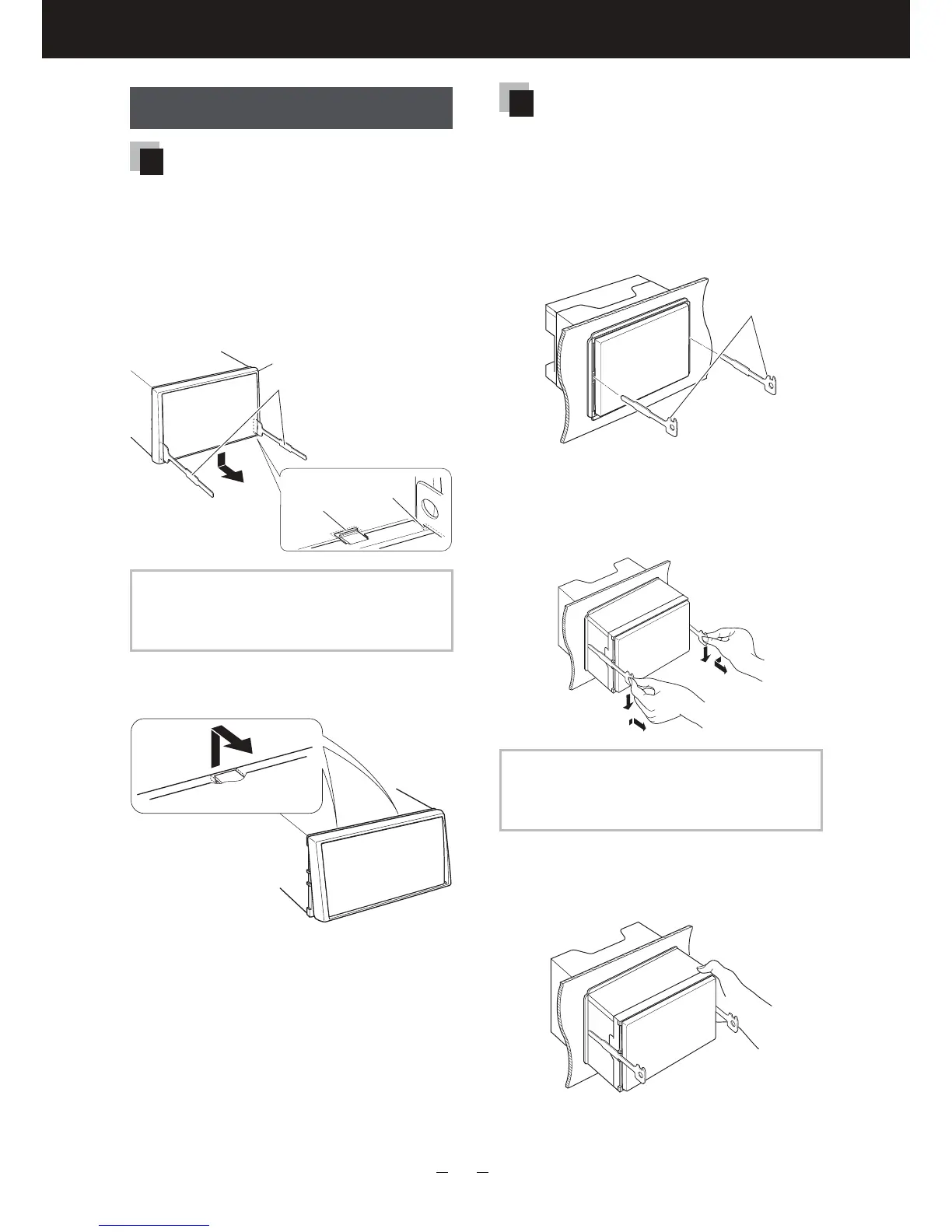

Removing Procedure

Removing the trim plate

1) Engage the catch pins on the

extraction key (accessory4) and

remove the two locks on the

lower level.

Lower the trim plate (accessory9)

and pull it forward as shown in

the figure.

Lock

Catch

NOTE

tThe trim plate can be removed from the

top side in the same manner.

2) When the lower level is removed,

remove the upper two locations.

Removing the unit

1) Remove the trim plate by

referring to step 1 in “Removing

the trim plate”.

2) Insert the two extraction key

(accessory4) deeply into the slots

on each side, as shown.

3) Lower the extraction key toward

the bottom, and pull out the unit

halfway while pressing towards

the inside.

NOTE

tBe careful to avoid injury from the catch

pins on the extraction key.

4) Pull the unit all the way out with

your hands, being careful not to

drop it.
