DP-M993/M5550/M6650 `

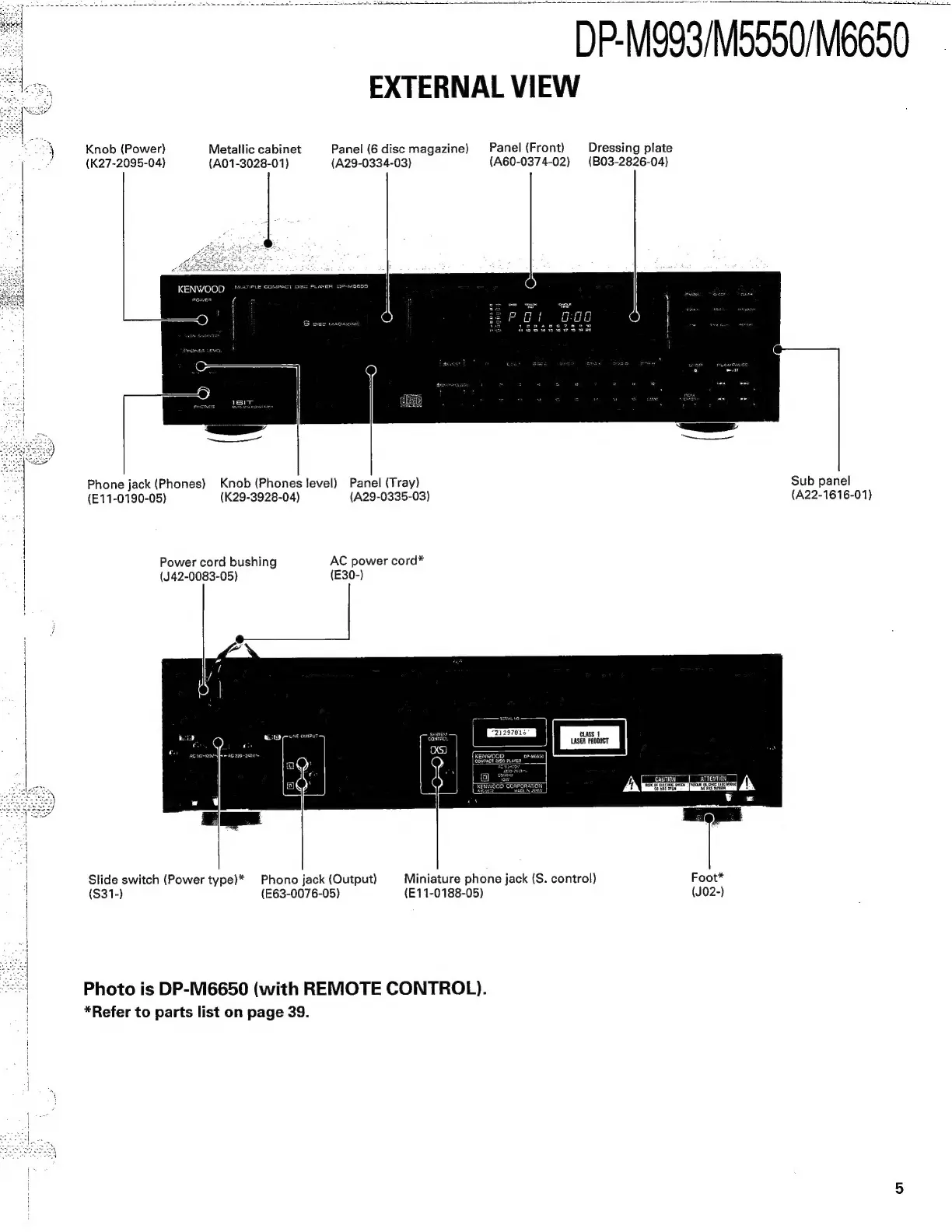

EXTERNAL VIEW
Knob (Power) Metallic cabinet Panel (6 disc magazine) Panel (Front) Dressing plate
(K27-2095-04) (A01-3028-01) (A29-0334-03) (A60-0374-02) (В03-2826-04)
Phone
jack
(Phones)
Knob
(Phones
level)
Panel
(Tray)
Sub
panel
(E11-0190-05)
(K29-3928-04)
(A29-0335-03)
(A22-1616-01)
d
|
Power
cord
bushing
AC
power
cord*
(J42-0083-05)
(E30-)
CAUTION ` ATTENTION
Hee
Slide switch (Power type)* Phono jack (Output) Miniature phone jack (S. control) Foot*
| (531-) (Е63-0076-05) (Е11-0188-05) (J02-)
Photo is DP-IM6650 (with REMOTE CONTROL).
*Refer to parts list on page 39.
