Kenwood DP-M993 Service Manual

DP-M993/M5550/M6650 ·

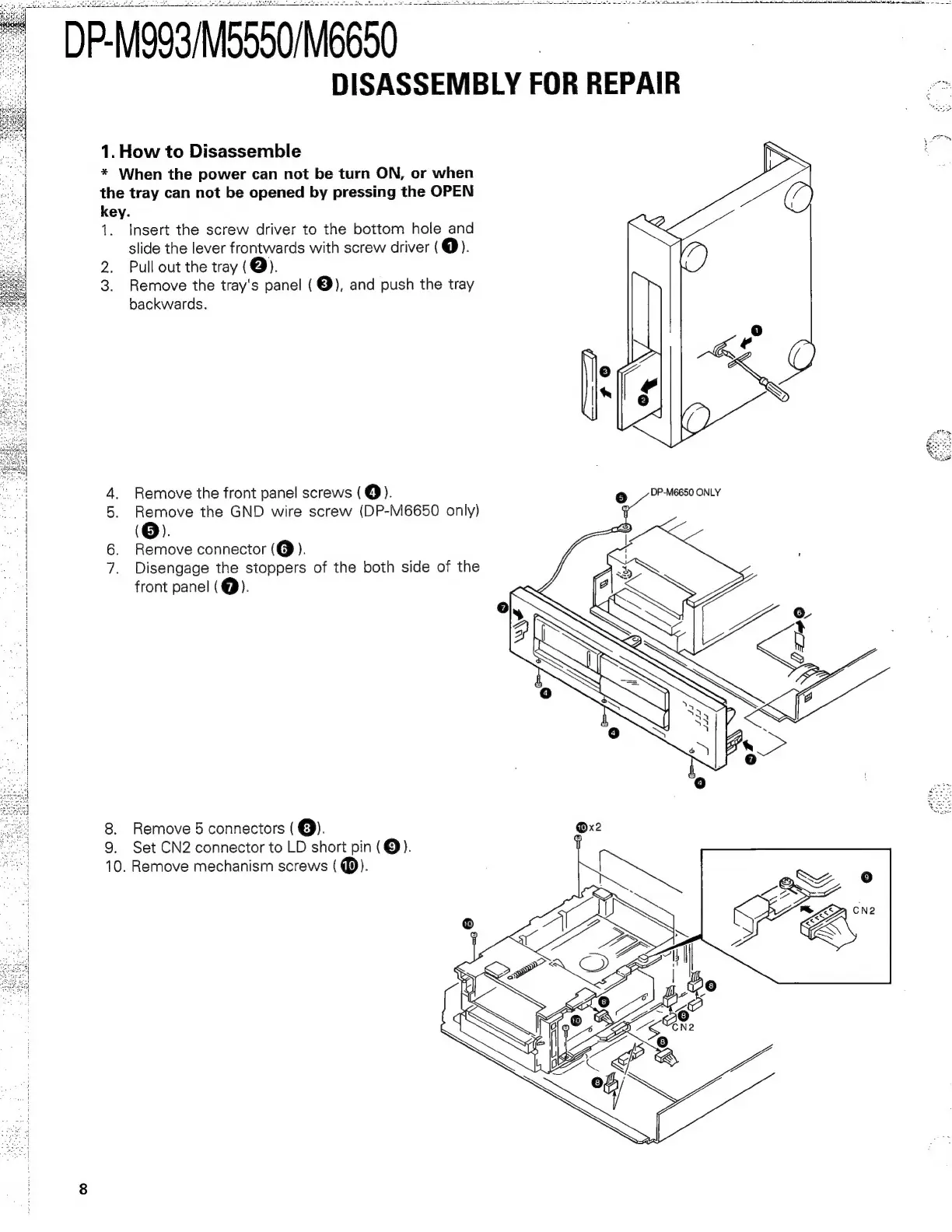

DISASSEMBLY FOR REPAIR
1. How to Disassemble
* When the power can not be turn ON, or when
the tray can not be opened by pressing the OPEN
key.
1. Insert the screw driver to the bottom hole and
slide the lever frontwards with screw driver ( Q9).
2. Pull out the tray (@).
3. Remove the tray's panel ( Ө), and push the tray
backwards.
4. Remove the front panel screws (Ө ).
5. Remove the GND wire screw (DP-M6650 only)
(Ө).
6. Remove connector (Ө ).
7. Disengage the stoppers of the both side of the
front panel (Q9).
8. Remove B connectors ( Q).
9. Set CN2 connector to LD short pin (@).
10. Remove mechanism screws ( @).
Фх2
@
