Kenwood KDC-HD458U User Manual

17
ENGLISH |
Part list for installation
(A) Faceplate

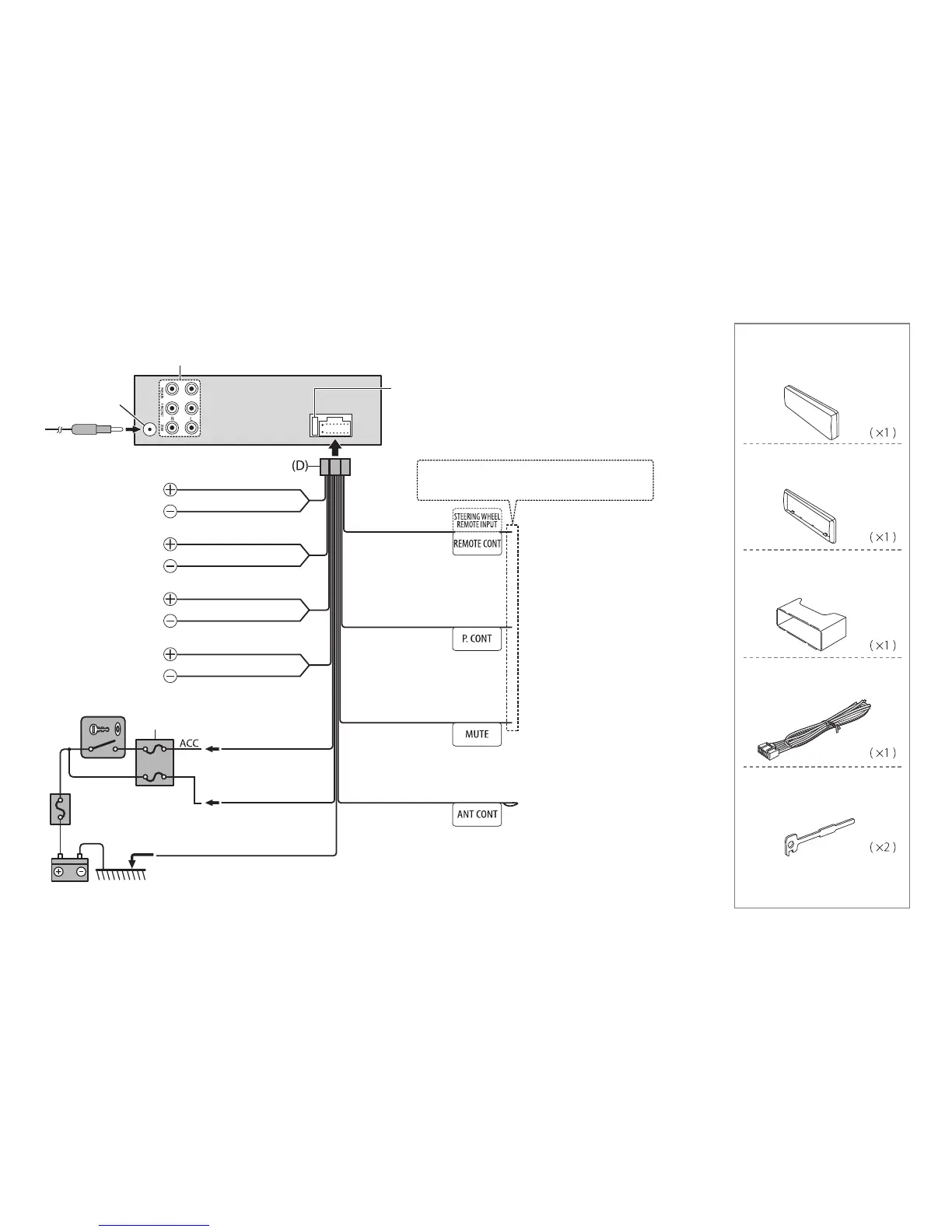

Wiring connection
Fuse (10A)
Rear/ front/ subwoofer output
Antenna terminal
Car fuse box
Car fuse box
Battery
Ignition switch
Blue/White
(Power control wire)
Light blue/yellow
(Steering remote
control wire)
Red
(Ignition wire)
Yellow
(Battery wire)
Black (Ground wire)
To the metallic body or chassis
of the car
To the power control terminal when using
the optional power amplifier, or to the
antenna control terminal in the vehicle.
Brown
(Mute control wire)
Blue
(Antenna control
wire)
White
Gray
Green
Purple
White/Black
Gray/Black
Green/Black
Purple/Black
To the terminal that is grounded when the
telephone rings or during conversation.
(To connect the Kenwood navigation system,
refer your navigations manual.)
To front speaker (left)
To rear speaker (left)
To front speaker (right)
To rear speaker (right)
(Not used)
If no connections are made, do not let the wire
come out from the tab.
To the steering wheel remote control
adapter
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key
EN_KDC_X498_KWK0_2.indd 17 26/9/2013 2:39:05 PM

Kenwood KDC-HD458U Specifications

General

Tuner	AM/FM
USB Port	Yes
Bluetooth	Yes
Preamp Outputs	Yes
Display Type	LCD
Equalizer	Yes
Preamp Outputs (Channels)	3
Subwoofer Preamp Output	Yes
Detachable Face	Yes
AUX Input	Yes
iPod/iPhone Compatibility	Yes
Android Compatibility	Yes
Satellite Radio Ready	Yes
Steering Wheel Control Compatible	Yes
CD Player	Yes
Max Power Output	50 Watts x 4
RMS Power Output	22 Watts x 4
Audio Formats Supported	MP3, WMA
Preamp Voltage	2.5 Volts
