Kenwood MDX-01 User Manual

3
8
4
2
2
1
1
1
1
1
7
1
x3
x2
7
x1
7
x1
10
x1
6
x2
6
x2
5
x2
11
11
11
13
12
12
14
9
x3
MDX-01/02
3

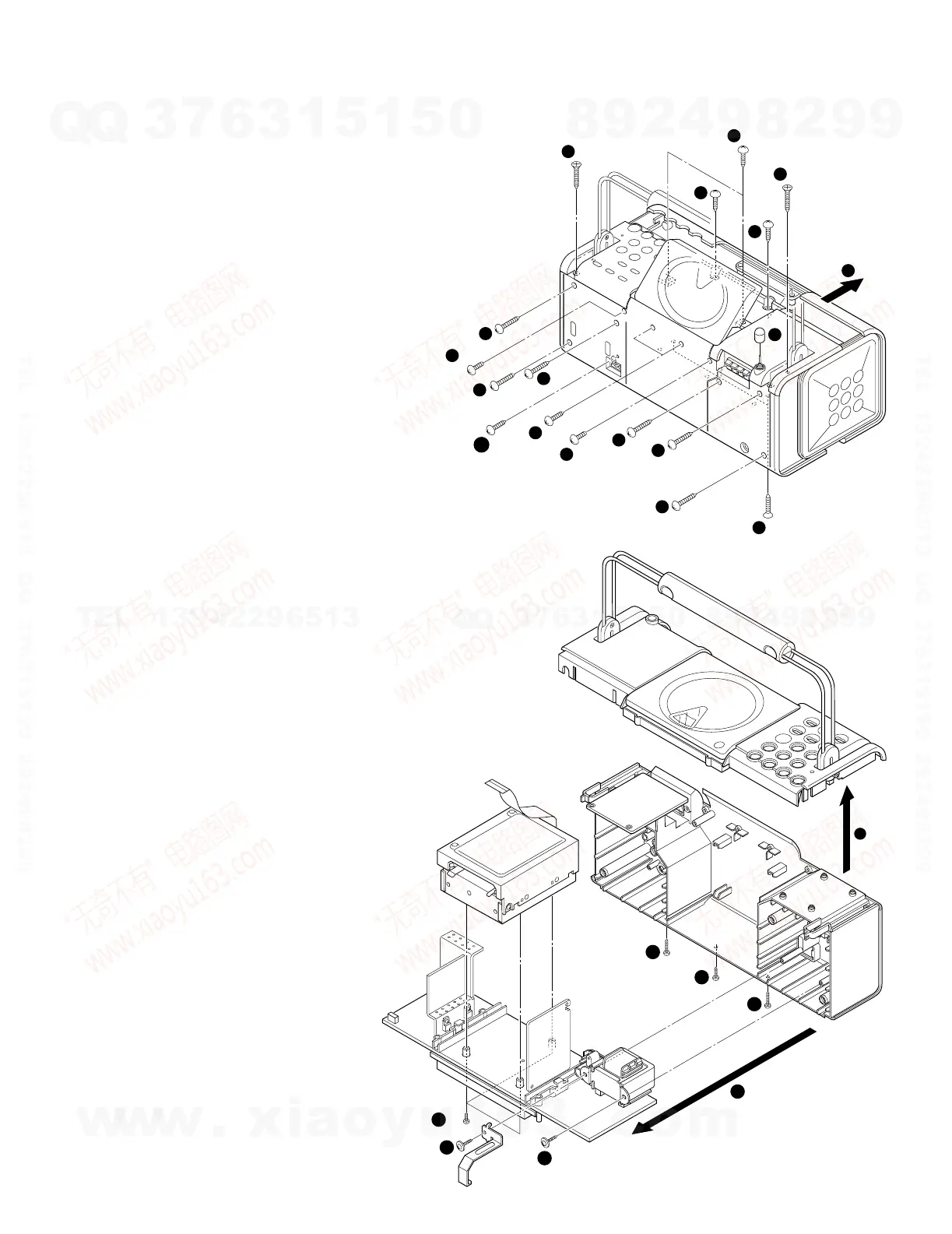

DISASSEMBLY FOR REPAIR
1. How to Remove Front Cabinet
1. Remove 6 screws(1) from the rear cabinet side.
2. Remove 2 screws(2) fixed CD and the front
cabinet.
3. Remove 3 screws(3) from the bottom front side.
4. Move the front cabinet frontwards(4).
2. How to Remove CD and Top Covers
1. Remove 2 screws fixed CD and top covers(5).
2. Remove 8 screws fixed the carrying handle
(6x4) and the rear cabinet(7x4).
3. Turn the antenna cap(8) to remove and lift the
carrying handle and CD mechanism(9).
3. How to Remove MD Mechanism
1. Remove the screw(0) fixed the AC inlet socket.
2. Remove 5 screws fixed the bottom cabinet(!x3)
and the power transformer(@x2).
3. Move the main pcb frontwards(#).
4. Remove 3 screws($) fixed the MD mechanism.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299

Kenwood MDX-01 Specifications

Amplifier Section

maximum practical output	2 W + 2 W (EIAJ, 4 Ω)

Tuner Section

FM tuning frequency range	87.5 MHz ~ 108 MHz
AM tuning frequency range	531 kHz ~ 1, 602 kHz

CD Player Section

D/A conversion	1 Bit
sampling frequency	8 fs (352.8 kHz)
frequency response	20 Hz to 20, 000 Hz

MD Recorder Section

laser wave length	765 to 805 nm
laser power class	Class 3B
audio compression method	ATRAC

Speakers

enclosures	Bass-reflex type
speaker units	80 mm, cone type
reading method	Non-contact optical read (using a laser diode)

Power Supply

supply voltage/frequency	AC 220 V, 50Hz
rated power consumption	24 W
standby power consumption	0.4 W

Weight and Dimensions

width	410 mm
height	170 mm
depth	190 mm
weight	4.6 kg (net)
