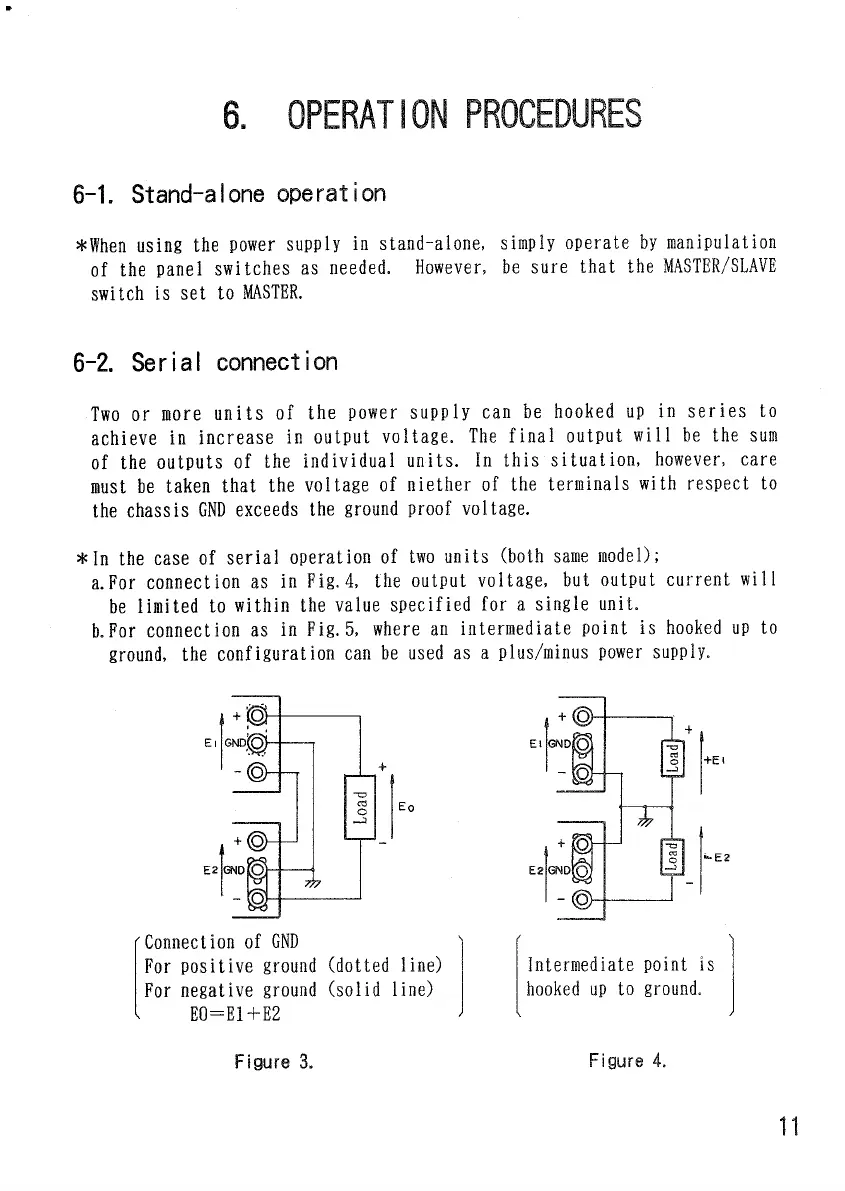

6. OPERATION PROCEDURES
6-1.
Stand-alone
operation
*When
using
the power
supply
in
stand-alone, simply operate
by
manipulation
of
the
panel
switches
as
needed.
However,
be
sure that
the MASTER/SLAVE
switch
is set
to
MASTER.
6-2, Serial
connection
Two or more
units
of the power
supply
can be
hooked
up in
series
to
achieve
in
increase
in
output
voltage.
The
final
output
wi11 be the sum
of
the
outputs
of the
individual
units.
In
this
situation,
however,
care
must
be
taken that
the
voltage
of
niether
of the
terminals with respect
to
the chassis
GND
exceeds
the
ground
proof
voltage.
* In
the
case
of
serial
operation
of two
units
(both
same
model);
a.
For connection
as in
Fig. 4,
the
output
voltage,
but
output
current wi
11
be
limited
to
within
the
value
specified
for
a
single
unit.
b.
For connection
as in
Fig. 5,
where
an
intermediate point is
hooked
up to
ground,
the
configuration
can be
used
as a
plus/minus
power
supply.
fConnection
of GND
For
positive
ground
(dotted
line)
For negative
ground
(solid line)
E0-E1 + E2
Intermediate point
is
hooked
up to
ground.
Figure
3.
Figure
4.
11
Load
Load
Load
