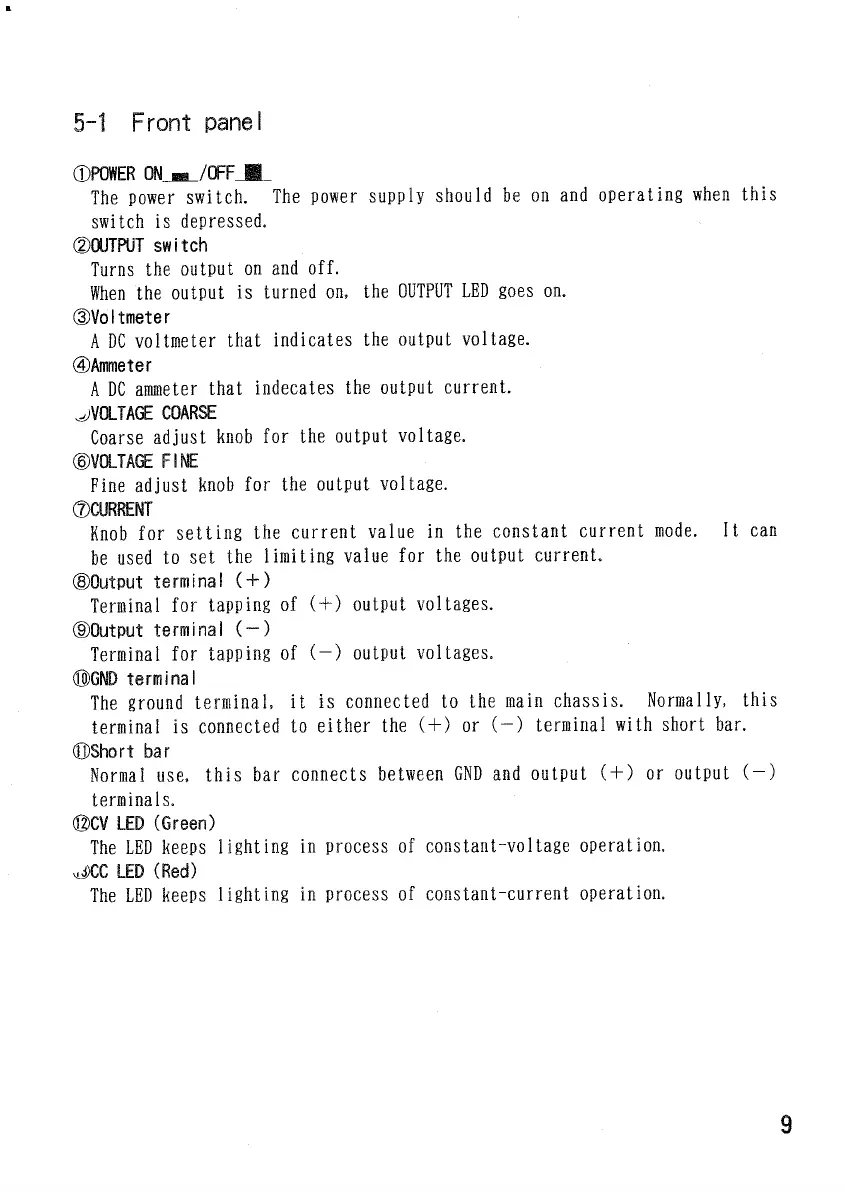

5-1 Front panel
©POWER
ON • /OFF •
The
power
switch,
The
power
supply should
be on and
operating
when
this
switch
is depressed.
©OUTPUT
switch
Turns
the output
on and
off.
When
the output is turned on, the
OUTPUT LED
goes
on.
©Voltmeter
A DC
voltmeter
that
indicates
the output
voltage.
©Ammeter
A DC
ammeter
that
indecates
the output
current.
^VOLTAGE COARSE
Coarse
adjust
knob
for the output
voltage.
©VOLTAGE
FINE
Fine
adjust
knob
for the output
voltage.
©CURRENT
Knob
for
setting
the
current
value
in the
constant
current
mode.
It
can
be used
to
set
the
limiting
value
for the output
current.
©Output terminal
(
+ )
Terminal for tapping
of
(+) output
voltages.
©Output terminal
(-)
Terminal for tapping
of (-)
output
voltages.
©GND terminal
The
ground
terminal,
it is connected
to
the
main
chassis.
Normally,
this
terminal
is connected
to
either
the
(
+
)
or (-)
terminal
with
short
bar.
©Short
bar
Normal
use,
this
bar
connects
between
GND and
output
(
+
)
or
output
(-)
terminals.
@CV LED
(Green)
The
LED
keeps
lighting
in process
of
constant-voltage operation.
v^CC
LED
(Red)
The
LED
keeps
lighting
in process
of
constant-current
operation.
9
