2. GENERAL
INTRODUCTION
SCOPE OF THIS MANUAL
This manual is intended for use by experienced techni-
cians familiar with similar types of commercial grade com-
munications equipment. It contains all required service
information for the equipment and is current as of the pub-
lication date. Changes which may occur after publication
are covered by either Service Bulletins or Manual Revi-
sions. These are issued as required.
ORDERING REPLACEMENT PARTS
When ordering replacement parts or equipment infor-
mation, the full part identification number should be
included. This applies to all parts: components, kits, or
chassis. If the part number is not known, include the chas-
sis or kit number of which it is a part, and a sufficient de-
scription of the required component for proper identifica-
tion.
OPERATING INSTRUCTIONS
OFFS VOL
TK-701
PERSONNEL SAFETY
The
following
precautions
are
recommended
for
per-
sonnel
safety:
@ DO NOT transmit if someone is within two feet (0.6
meter) of the antenna.
@ DO NOT transmit until all RF connectors are verified
secure and any open connectors are properly ter-
minated.
@ SHUT OFF and DO NOT operate this equipment near
electrical blasting caps or in an explosive atmosphere.
@ All equipment should be properly grounded before
power-up for safe operation.
@ This equipment should be serviced by a qualified tech-
nician only.

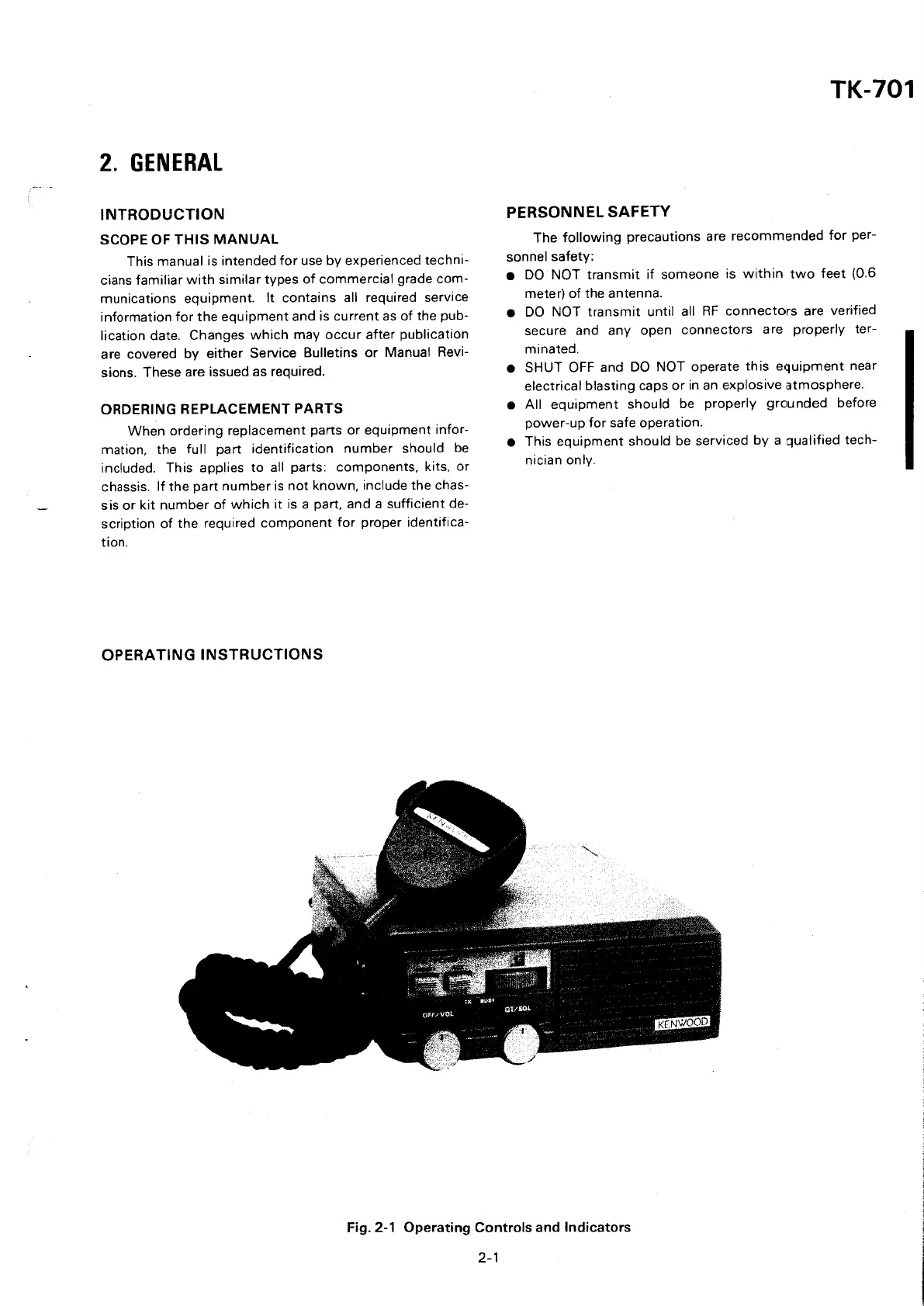

Fig. 2-1 Operating Controls and Indicators
2-1

Kenwood TK-701S Specifications

General

Power Output	25W
Weight	1.4 kg
Modulation	FM
Frequency Range	148-174 MHz
Frequency	148-174 MHz
Dimensions	160(W) x 53(H) x 169(D) mm
