TR-2600A/E
12
Rating
Output vol-
tage (resis-
tance loaded) | At 42.5mA:

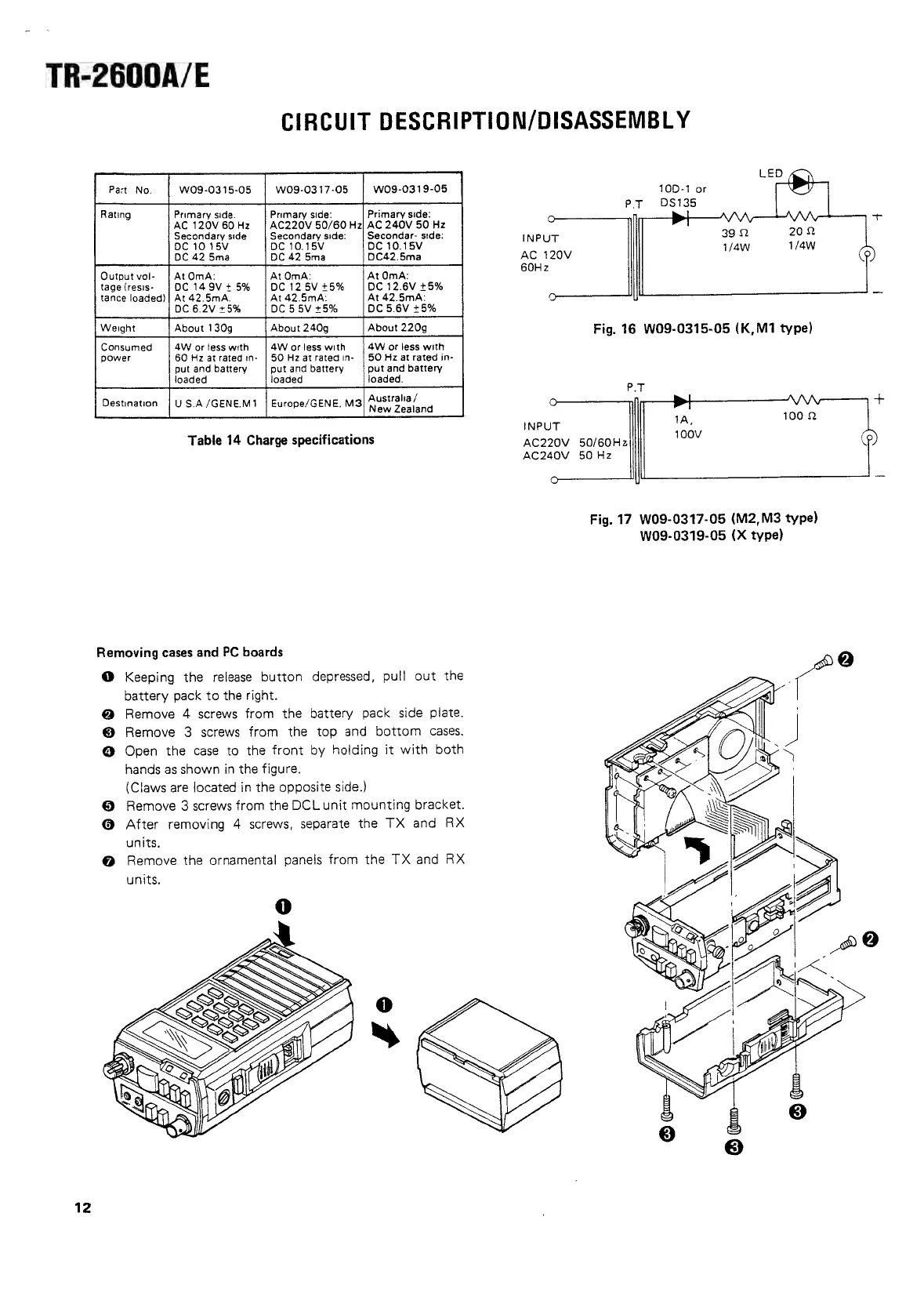

CIRCUIT DESCRIPTION/DISASSEMBLY
WO09-0317-05 WO09-0319-05
Primary side:
AC 120V 60 Hz
Secondary side:
OC 10.15V
OC 42.5ma
AtQmA:
DC 14.9V + 5%
Primary side: Primary side:
AC220V 50/60 Hz| AC 240V 50 Hz
Secondary side: Secondar- side:
DC 10.15V DC 10.15V
DC 42.5ma DC42.5ma
AtOmA: AtOmA:
DC 12.5V 45% DC 12.6V +5%
At 42.5mA: At 42.5mA:
OC 6.2V +5% DC 5.5V +5% DC5.6V +5%
About 130g About 240g About 220g
Consumed
power
4W or less with
50 Hz at rated in-
put and battery
loaded.
4W or less with
50 Hz at rated in-
put and battery
loaded.
AW or tess with
60 Hz at rated in-
put and battery
loaded.
Australia /
Europe/GENE, M3 New Zealand
Table 14 Charge specifications
Removing cases and PC boards
ot)
Keeping the release button depressed, pull out the
battery pack to the right.
Remove 4 screws from the battery pack side plate.
Remove 3 screws from the top and bottom cases.
Open the case to the front by holding it with both
hands as shown in the figure.
(Claws are located in the opposite side.)
Remove 3 screws from the DCL unit mounting bracket.
After removing 4 screws, separate the TX and RX
units.
Remove the ornamental panels from the TX and RX
units.
INPUT 39 2
AC 120V vay
60Hz
Fig. 16 W09-0315-05 (K,M1 type)
1A, 100 2
INPUT
100V
AC220V 50/60Hz
AC240V 50 Hz
Fig. 17 W09-0317-05 (M2,M3 type)
W09-0319-05 (X type)
