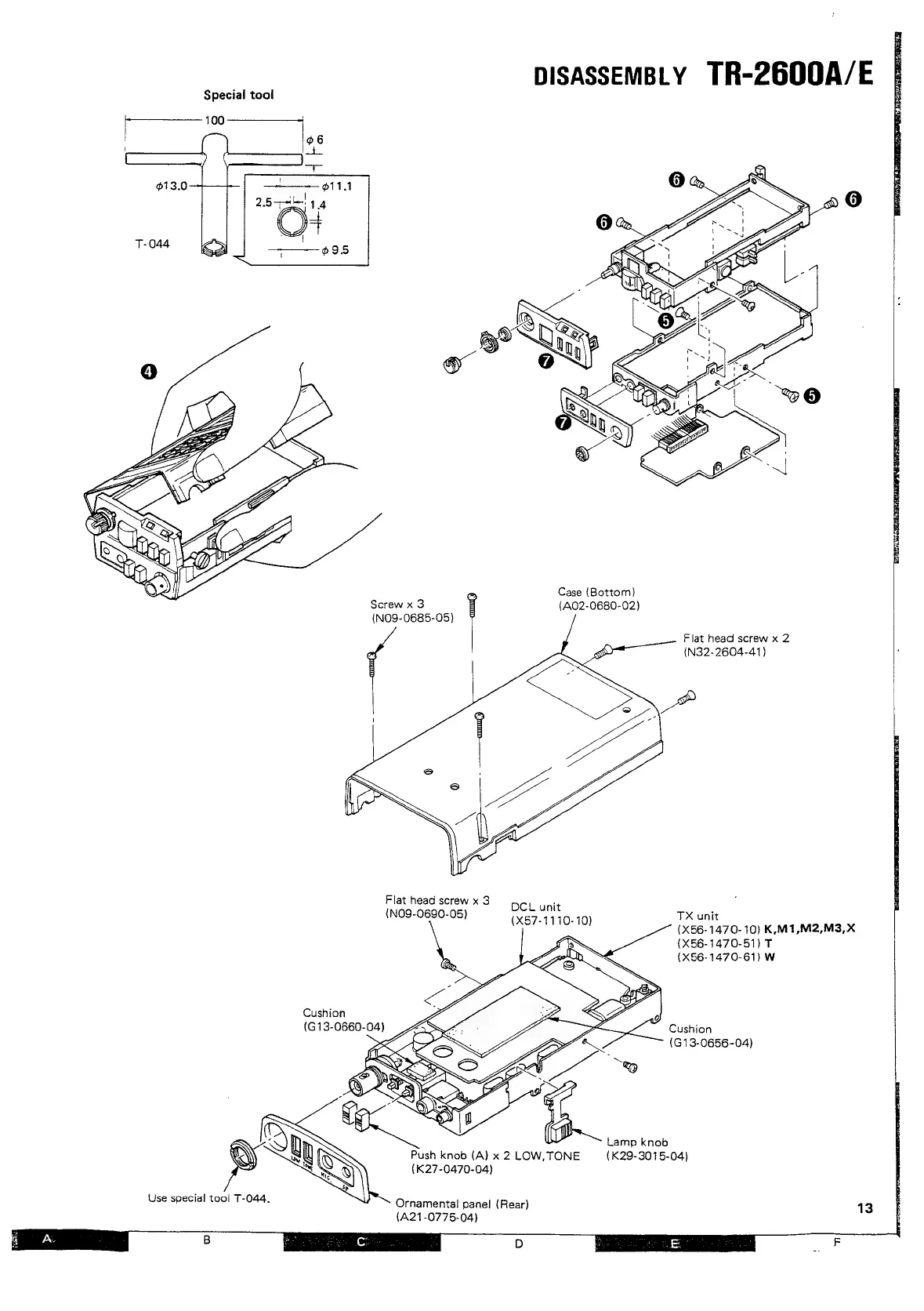

DISASSEMBLY TR-2600A/E
Special tool
(NO9-0685-05)
Flat head screw x 2
(N32-2604-41)
Case (Bottom)
SeewKS | (A02-0680-02)
Flat head screw x 3
(NO9-0690-05)
DCL
unit
2 TX unit
Pao ty) (X56-1470-10) K,M1,M2,M3,X
(X56-1470-51) T
(X56-1470-61) W
Cushion
(G13-0660-04) Cushion
(G13-0656-04)
Lamp knob
Push knob (A) x 2 LOW, TONE (K29-3015-04)
(K27-0470-04)
Ornamental!
panel
(Rear)
13
(A21-0775-04)
