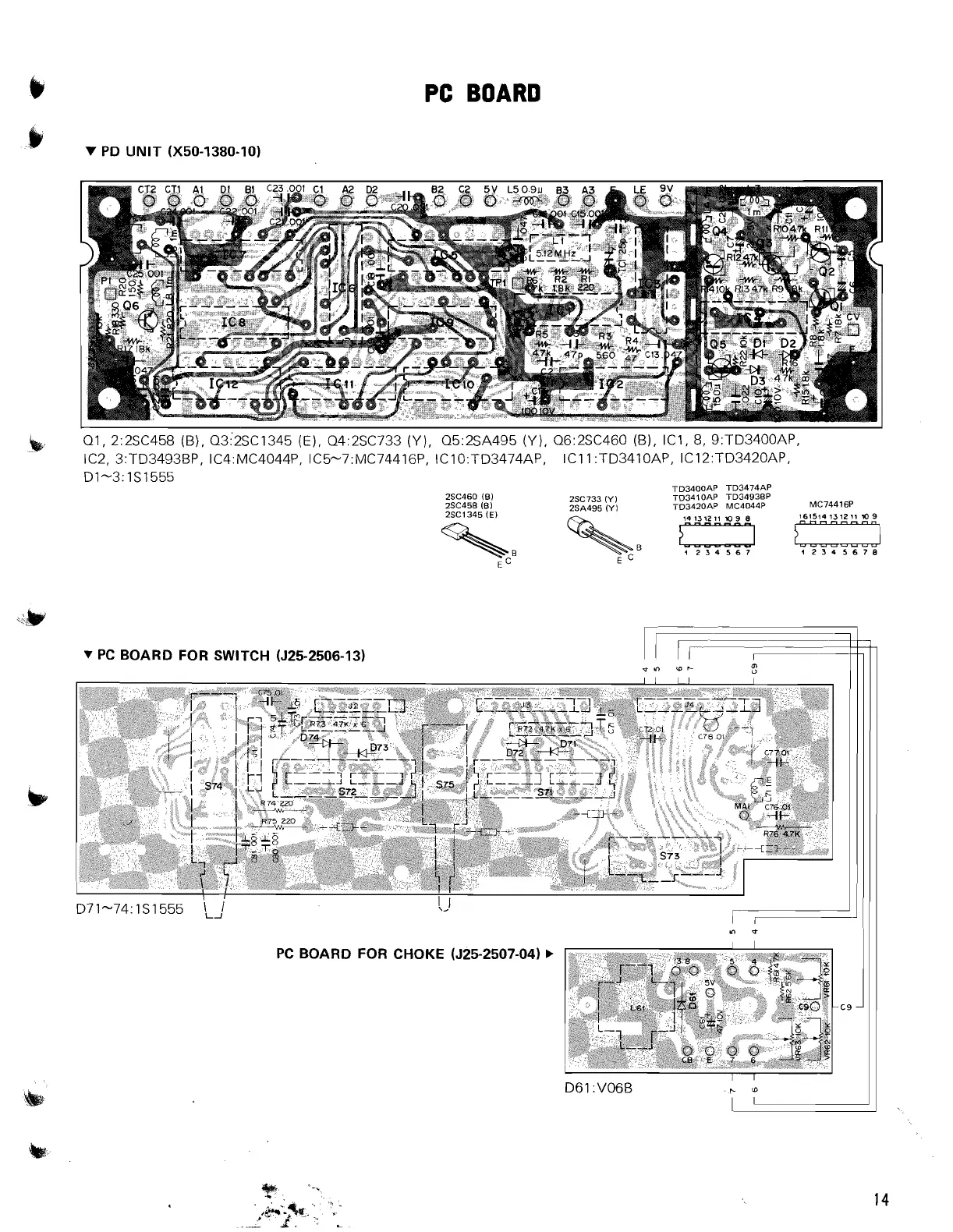

Kenwood TR-7400A - PD UNIT (X50-1380-10) Layout

PC BOARD
Q1, 2:2SC458 (B), ~312~~1345 (E), Q4:2SC733 (Y), Q5:2SA495 (Y), Q6:2SC460 (B), IC1, 8, 9:TD3400AP,
IC2, 3:TD3493BP, IC4:MC4044P, IC5-7:MC74416P, IClO:TD3474AP,
IC11 :TD3410AP, IC12:TD3420AP,
Dl-3:1S1555
TD3400AP TD3474AP
2SC460
(B) 2SC733 (Y) TD3410AP TD3493EP
2SC458
(B) 2SA495 (Y1 TD3420AP MC4044P MC74416P
i""l f""i
B
B
1234567
1234 5678
r PC BOARD FOR SWITCH (525-2506-131
PC BOARD FOR CHOKE (525-2507-041
C 9
