Kenwood TS-480SAT Instruction Manual

17
3 GETTING ACQUAINTED
q Speaker
When the headphones are connected, the
speaker mutes.
If you wish to use a commercially available 3rd party
angle or mount, there are 4 screw holes available on
the rear of the Remote Control panel so that you can
mount it to the angle or mount. Use 3 mm x 8 mm
tapping screws to mount the panel securely to the
angle or mount. (The tapping screws are not
supplied).
q

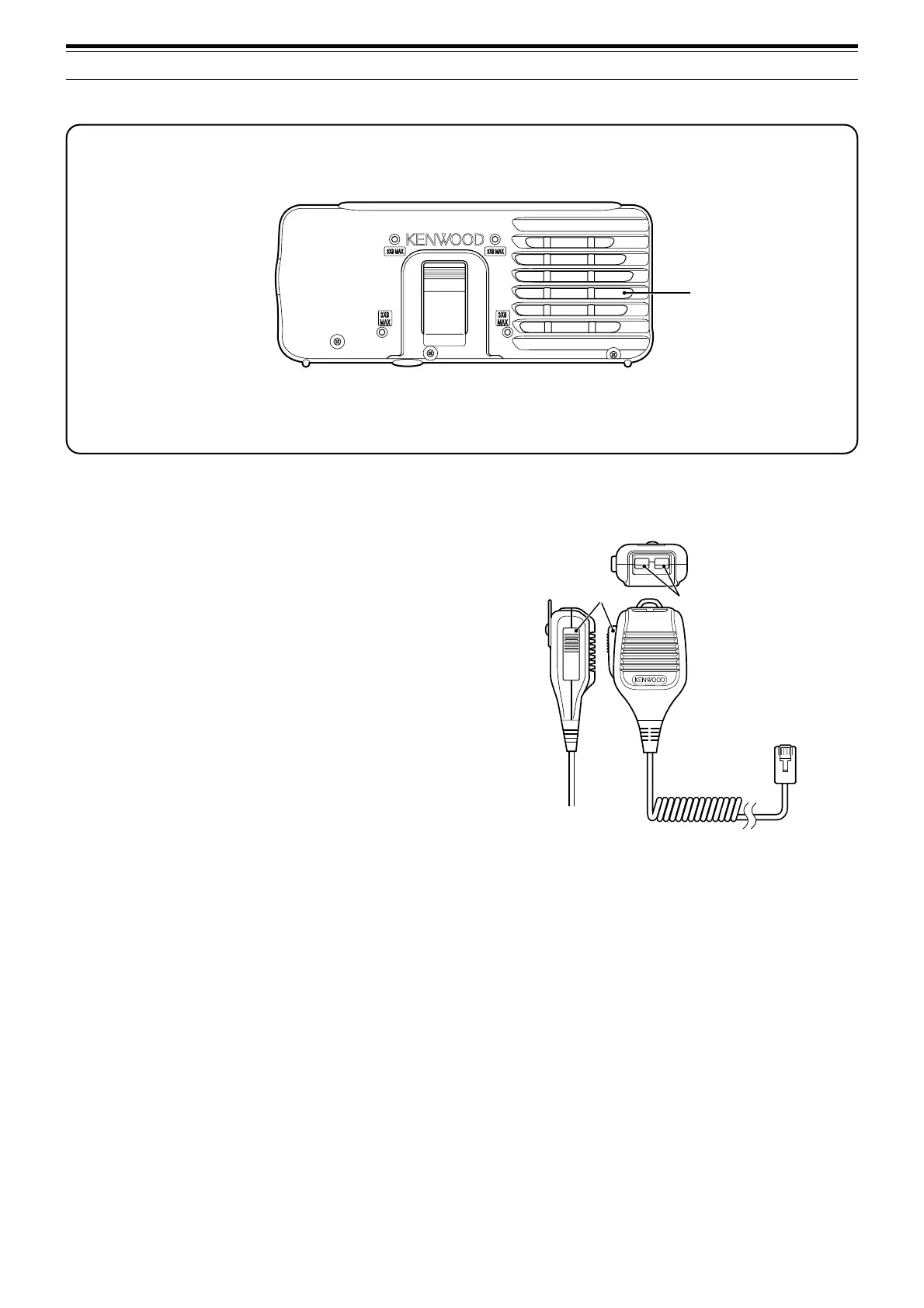

REMOTE CONTROL PANEL (REAR)
MICROPHONE
PTT
DWN UP
w
q
q PTT (Push-to-Talk) switch
The transceiver is placed in Transmission mode when
this non-locking switch is held down. Releasing the
switch returns the transceiver to Reception mode.
w UP/ DWN keys
Use these keys to step the VFO frequency, Memory
Channels, or Menu selections up and down.
Press and hold these keys to continuously change
the settings.

Kenwood TS-480SAT Specifications

General

Antenna Impedance	50 ohms
Supply Voltage	13.8 V DC ±15%
Current Drain (Receive)	1.5 A
Antenna Connector	SO-239
Operating Temperature	-10°C to +50°C
Modes	SSB, CW, AM, FM, FSK
Antenna Tuner	Built-in
Current Drain (Transmit)	20.5 A
Power Output	100 watts
RF Output Power	100 watts
