Remote Control

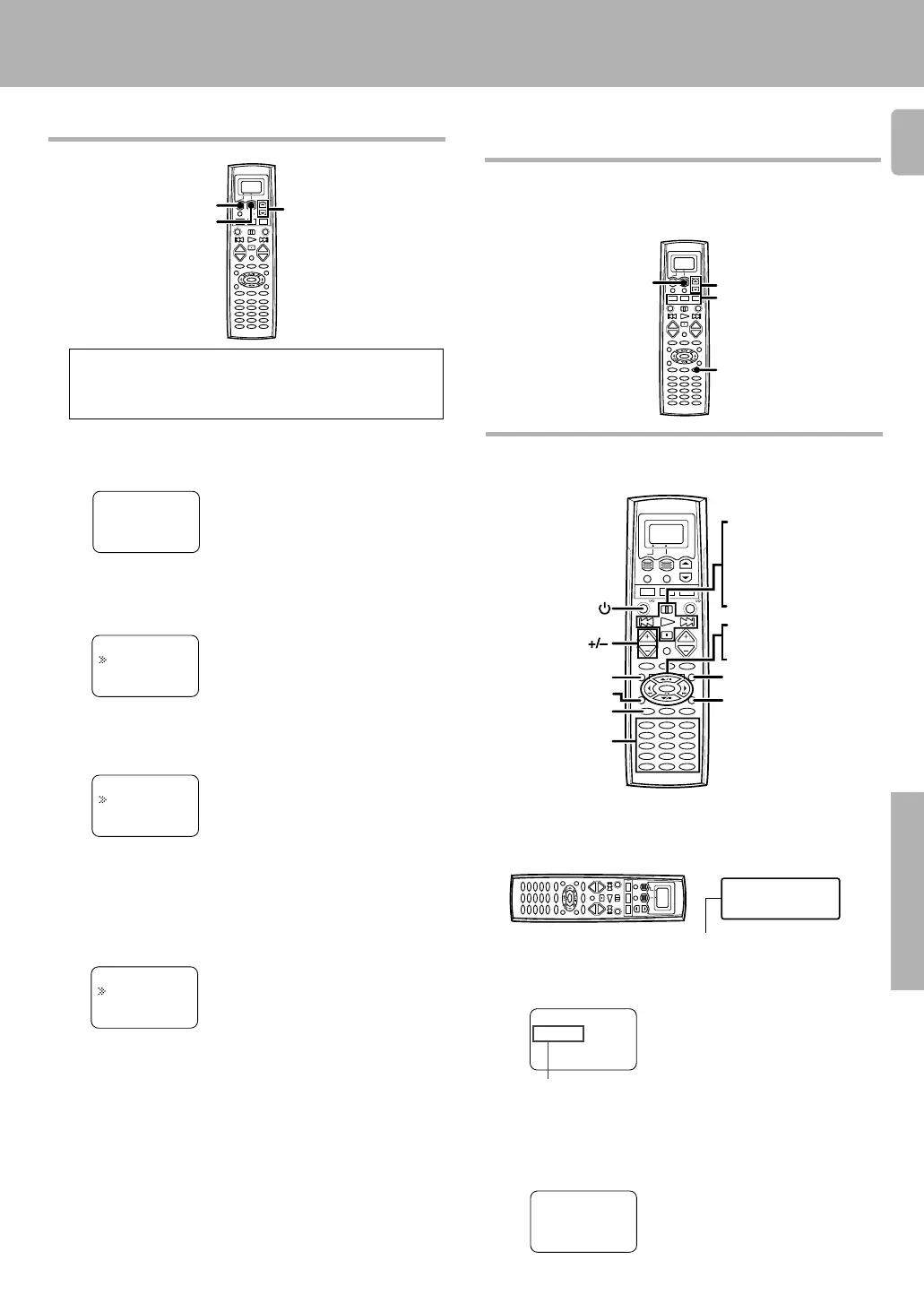

To delete the setup code
1
Press the display operation 1 key repeatedly until
“
Menu ” appears in the display.
VCR
Video1:
Menu
2
Press the display operation 2 [Menu] key repeatedly until
“
01.IR ” appears in the display.
Press the
5 / ∞ keys to select “ 01.IR ”, then press the
display operation 2 [Enter] key.
• The setup display appears.
3
• The input selecting display appears.
Press the 5 / ∞ keys to select the input that you want to
delete, then press the display operation 2 [Enter] key.
4
Press the 5 / ∞ keys to select “ Delete ”.
5
Press display operation 2 [Enter] key.
6
• The setup code is deleted.
>04.Video2
>03.Video1
Back Enter
>02.Surround
>01.IR
Home Enter
During operation, make sure you start the next step within 8
seconds of completing the previous one. If more than 8
seconds elapse between any two steps, press the display
operation key so that the display appears.
>01:CD
>13:Delete
Back Enter
Display operation 1
5/∞
Display operation 2
+
–
+
–
The remote control unit can store the remote control code of the other
components and you can operate the other components from the remote
control unit. The remote control code is stored on the key or memory of
the remote control unit.
Storing the remote control code of the other
components
MUSIC, MOVIE,
TV
LEARN
+
–
+
–
Display operation 2
5/∞
2 Press the MUSIC, MOVIE, or TV key to select the input of the
desired remote control unit.
VCR
Video1:
Menu
Selected input
3 Press the LEARN key.
4 Press the desired key of the remote control unit.
• The remote control is ready for receiving the remote control code.
Storing on the key
You can store the remote control code to the key as shown below:
1 Point the infrared ray system part of another remote control unit
to the remote sensor of the remote control unit .
>Extend1
Waiting
Clr Exit
SHIFT MACRO
MUSIC
LISTEN M.
BASS BOOST SUB.W.
MUTE
CH.
CH.
VOL.
VOL.
TUNING
BAND
ENTER
AUTO/MONO
F.SHIFTREC LEARN
RANDOMREPEAT INPUT SEL.
213
546
879
0+10 +100
1110 12
DISPLAYTV SELECT SELECT
THEMEAUDIO FAVORITE
EXITINFO. LAST CHANNEL
OSD
/PAGE
RETURN
/PAGE
DIMMER
TITLE/GUIDE MENU
SOUND CINE.EQ
MOVIE TV
AV. POWER SYS. POWER
OSD/PAGE
MENU
‹ Play
* Pause
& Stop
$ Rewind/skip
› Fast forward/skip
Cursor 5/∞/2/3
ENTER
TITLE/GUIDE
CH
RETURN/PAGE
REC
Numeric keys
AV POWER I /
Infrared ray system part
Remote control
unit of the other
source.
+
—
+
—
Remote control operations
*509/33-39/EN 3/15/01, 2:17 PM37

Kenwood VR-509 Specifications

Audio Specifications

rated power output during stereo operation	100 watts per channel minimum RMS, both channels driven, at 8 Ω from 20 Hz to 20 kHz with no more than 0.7% total harmonic distortion
effective power output during surround operation front	100 W + 100 W
effective power output during surround operation center	100 W
effective power output during surround operation surround	100 W + 100 W
total harmonic distortion	0.05% (1 kHz, 50W, 8 Ω)

Video Specifications

video inputs/outputs composite	1 Vp-p / 75 Ω
s video luminance signal	1 Vp-p / 75 Ω
s video chrominance signal	0.286 Vp-p / 75 Ω
component video luminance signal	1 Vp-p / 75 Ω
component video CB/CR signal	+/– 0.324 Vp-p / 75 Ω

FM Tuner Specifications

tuning frequency range	87.5 MHz ~ 108 MHz
usable sensitivity mono	1.3 µV (75 Ω)/ 13.2 dBf (75 kHz DEV., SINAD 30 dB)
50dB quieting sensitivity stereo	28 µV (75 Ω)/ 40.2 dBf
total harmonic distortion mono	0.5% (65 dBf input)
total harmonic distortion stereo	0.7% (65 dBf input)
signal to noise ratio mono	75 dB (65 dBf input)
signal to noise ratio stereo	68 dB (65 dBf input)
stereo separation	40 dB
selectivity	70 dB (±400 kHz)
frequency response	30 Hz ~ 15kHz, +0.5 dB, –3.0 dB

AM Tuner Specifications

tuning frequency range	530 kHz ~ 1, 700 kHz (10 kHz step)
usable sensitivity	16 µV / (600 µV/m)
signal to noise ratio	50 dB (30% mod. 1 mV input)

General Specifications

power consumption	2.6 A
dimensions width	440 mm (17-5/16")
dimensions height	144 mm (5-11/16")
dimensions depth	399 mm(15-11/16")
weight	8.8 kg (19.4 lb)

Digital Audio Specifications

sampling frequency	32 kHz, 44.1 kHz, 48 kHz, 96kHz
input level/impedance/wave length optical	(-15 dBm ~ -21 dBm), 660 nm ±30nm
input level/impedance coaxial	0.5 Vp-p / 75 Ω
