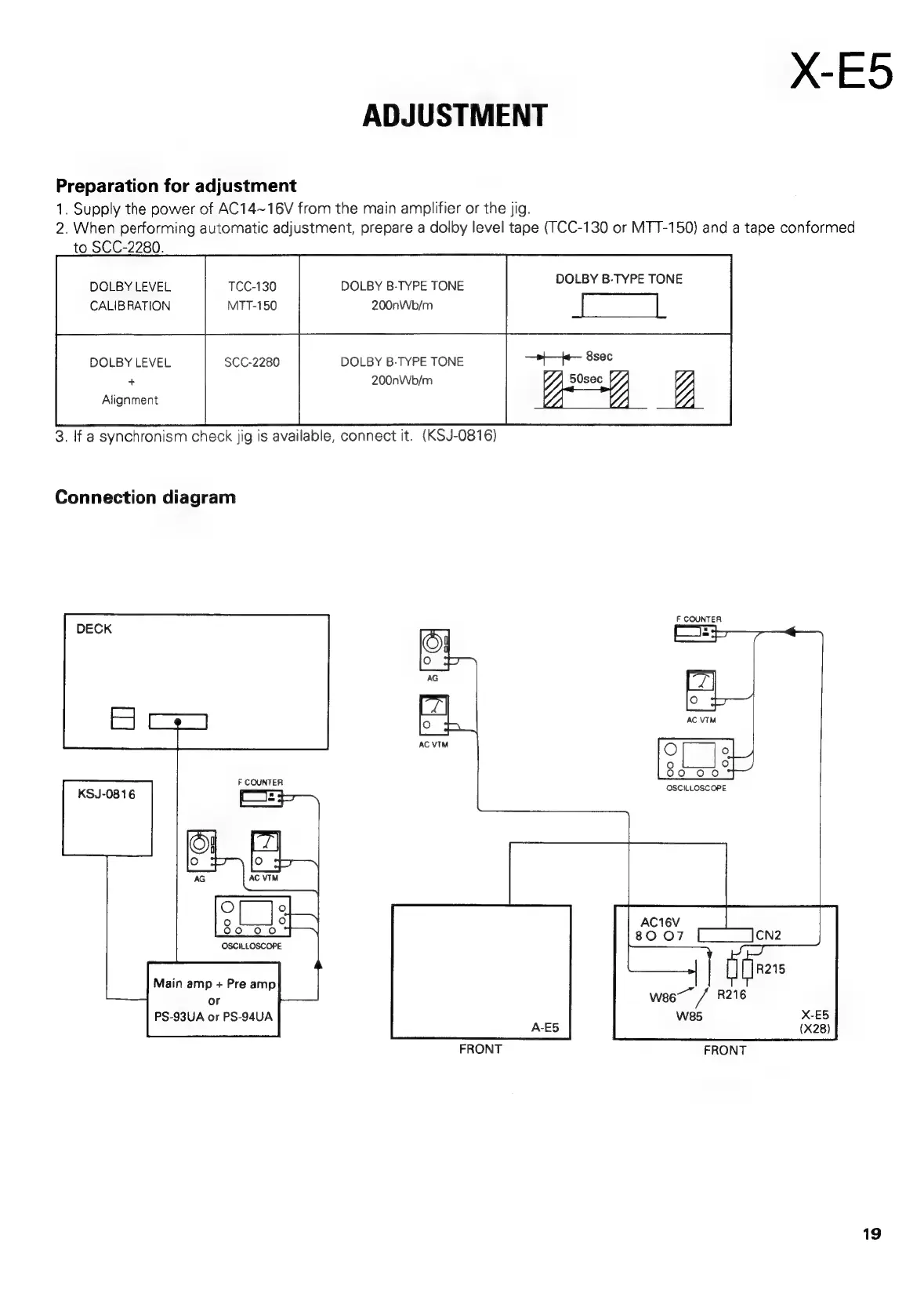

ADJUSTMENT
Preparation for adjustment
1. Supply the power of AC14~16V from the main amplifier or the jig.
2, When performing automatic adjustment, prepare a dolby level tape (TCC-130 or MTT-150) and a tape conformed
to SCC-2280.
DOLBY LEVEL TCC-130 DOLBY B-TYPE TONE DOLBY B-TYPE TONE
CALIBRATION MTT-150 200nWb/m : af
DOLBY LEVEL SCC-2280 DOLBY B-TYPE TONE —>—}+— 8sec
A
200nWb/m
50sec
Y
Alignment
Y
3. If a synchronism check jig is available, connect it. (KSJ-0816)
Connection diagram
DECK F COUNTER
BZ,
A
ee
rae
ors
Q °
4 60 00
KSJ-0816
m4
OSCILLOSCOPE
{Is 3
8007 L___]CN2
OSCILLOSCOPE
Main amp + Pre amp
or
PS-93UA or PS-94UA
FRONT FRONT
19
