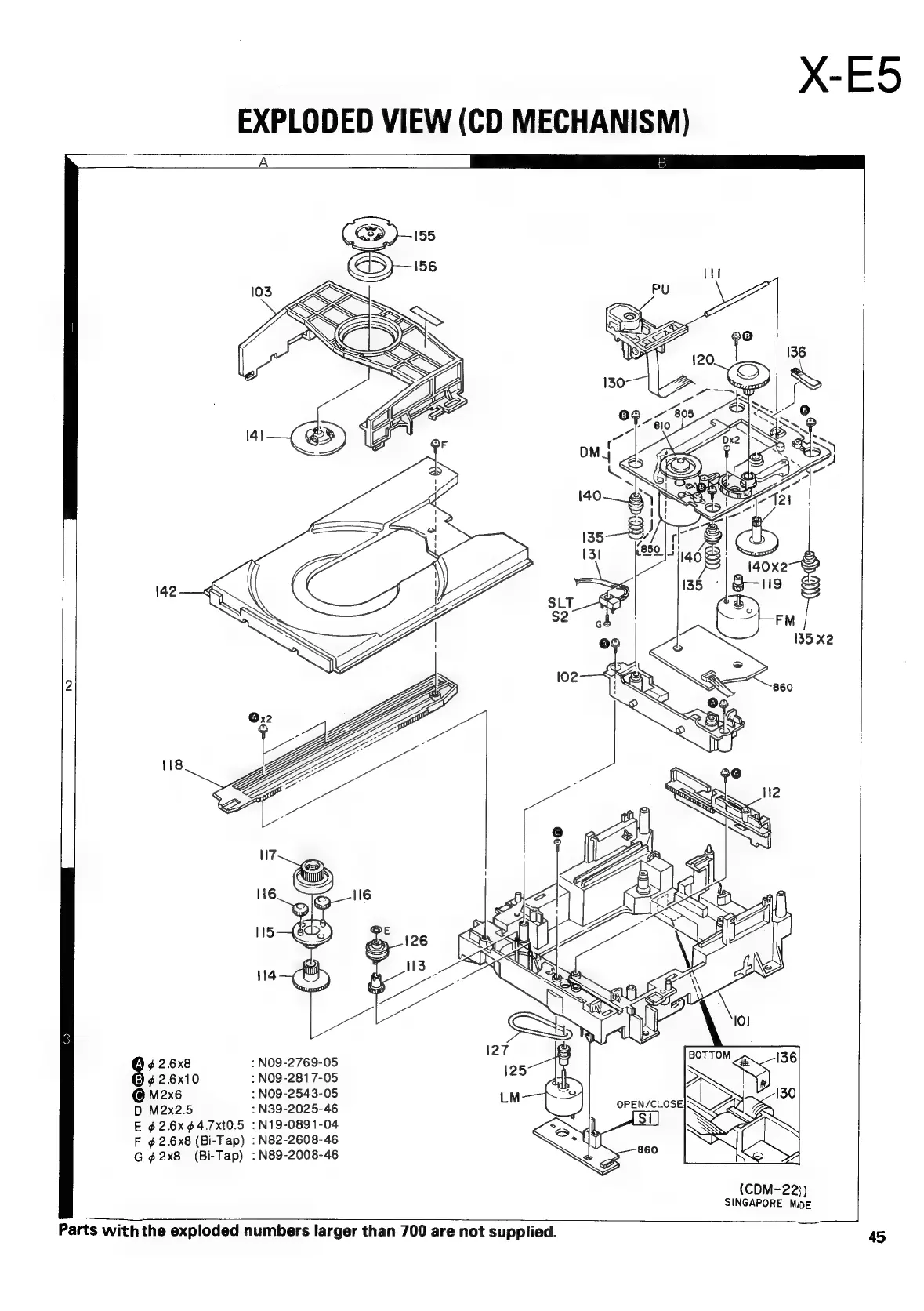

EXPLODED VIEW (CD MECHANISM)
A B
$¢ 2.6x8 : NO9-2769-05
$¢ 2.6x10 : NO9-2817-05
@ M2x6 : NO9-2543-05
D M2x2.5 : N39-2025-46
E $2.6x¢4.7xt0.5 :N19-0891-04
F ¢2.6x8 (Bi-Tap) : N82-2608-46
G $2x8 (Bi-Tap) :N89-2008-46
(CDM-223)
SINGAPORE NDE
Parts
with
the
exploded
numbers
larger
than
700
are
not
supplied.
