EOC-BA-e-1711 13

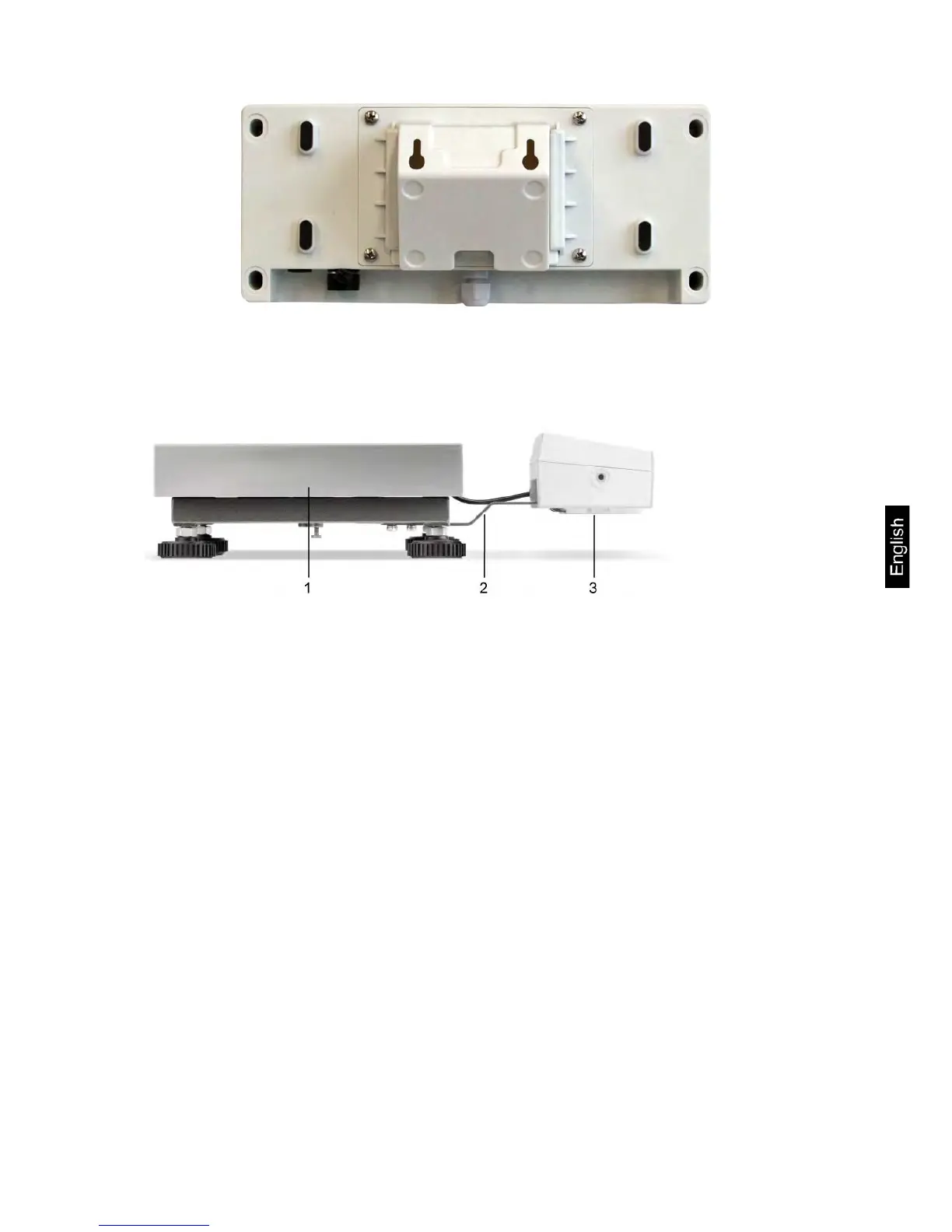

Support base/Wall fixture
Balance EOC with assembly plate EOC-A03 (optional):
1. Platform
2. Fitting panel
3. Display Unit
