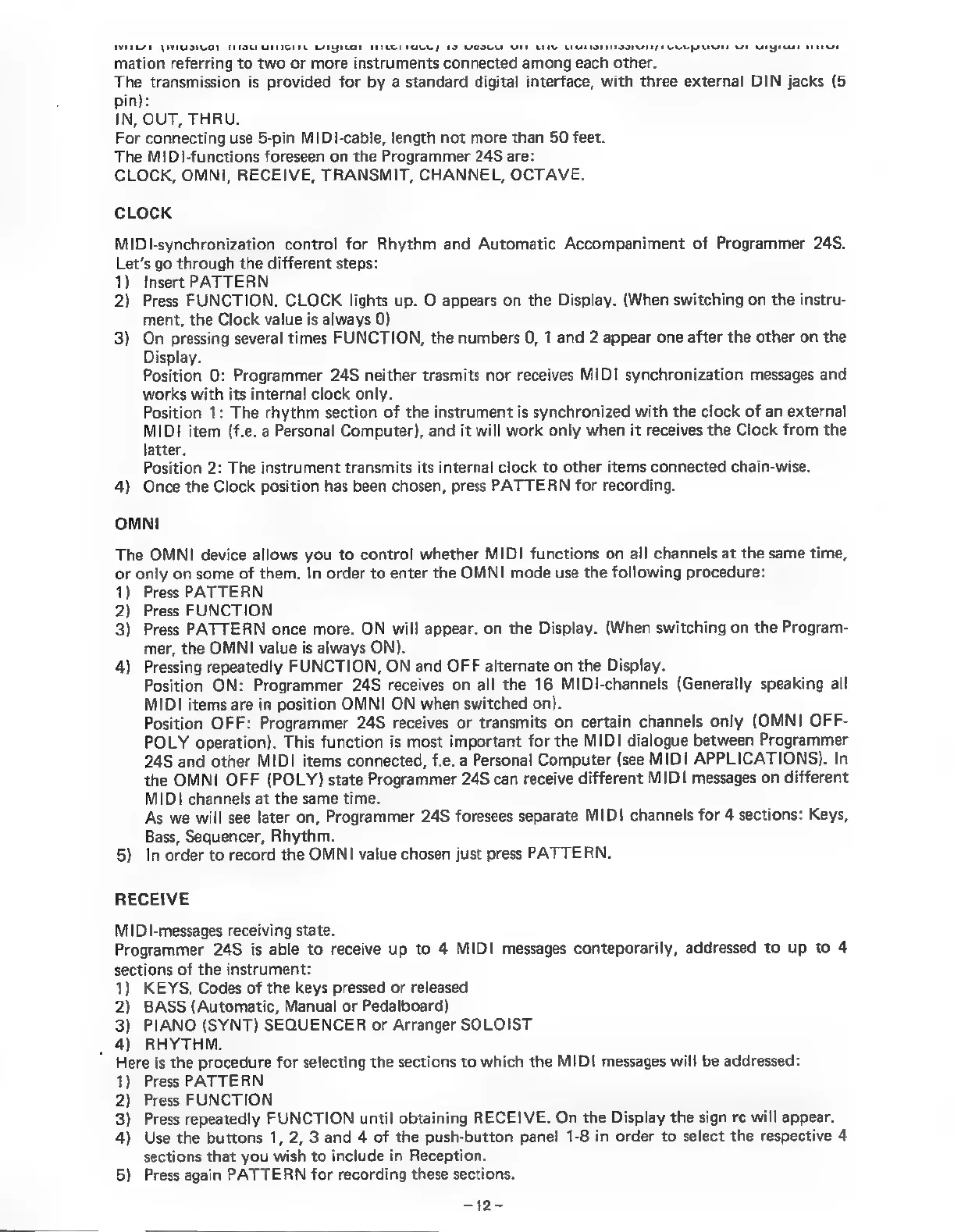

ЕТТЕГІ ДЕТТЕ ТТТ КЕРСЕТЕ ТЕК КТ ЕТПЕС аеро vi uyi пи
mation referring to two ог more instruments connected among each other.
The transmission is provided for by a standard digital interface, with three external DIN jacks (5
pin):
IN, OUT, THRU.
For connecting use 5-ріп MIDI-cable, length not more than 50 feet.
The MIDI-functions foreseen on the Programmer 245 аге:
CLOCK, OMNI, RECEIVE, TRANSMIT, CHANNEL, OCTAVE.
CLOCK
MIDI-synchronization control for Rhythm and Automatic Accompaniment of Programmer 245.
Let's go through the different steps:
1) Insert PATTERN
2) Press FUNCTION. CLOCK lights up. O appears on the Display. (When switching on the instru-
ment, the Clock value is always 0)
3) On pressing several times FUNCTION, the numbers 0, 1 and 2 appear one after the other on the
Display.
Position 0: Programmer 245 neither trasmits nor receives MIDI synchronization messages and
works with its internal clock only.
Position 1: The rhythm section of the instrument is synchronized with the clock of an external
MIDI нет (f.e. a Personal Computer), and it will work only when it receives the Clock from the
latter.
Position 2: The instrument transmits its internal clock to other items connected chain-wise.
4) Once the Clock position has been chosen, press PATTERN for recording.
OMNI
The OMNI device allows you to control whether MIDI functions on all channels at the same time,
or only on some of them. In order to enter the OMNI mode use the following procedure:
1) Press PATTERN
2) Press FUNCTION
3) Press PATTERN once more. ON will appear. on the Display. (When switching on the Program-
mer, the OMNI value is always ON).
4) Pressing repeatedly FUNCTION, ON and OFF alternate on the Display.
Position ON: Programmer 245 receives on all the 16 MIDI-channels (Generally speaking all
MIDI items are in position OMNI ON when switched on).
Position OFF: Programmer 245 receives or transmits on certain channels only (OMNI OFF-
POLY operation). This function is most important for the MIDI dialogue between Programmer
245 and other MIDI items connected, f.e. a Personal Computer (see MIDI APPLICATIONS). In
the OMNI OFF (POLY) state Programmer 245 can receive different MID! messages on different
MIDI channels at the same time.
As
we
will
see
later
on,
Programmer
245
foresees
separate
MIDI
channels
for
4
sections:
Keys,
Bass, Sequencer, Rhythm.
5) In order to record the OMNI value chosen just press PATTERN.
RECEIVE
MIDI-messages receiving state.
Programmer 245 is able to receive up to 4 MIDI messages conteporarily, addressed to up to 4
sections of the instrument:
1) KEYS. Codes of the keys pressed or released
2) BASS (Automatic, Manual or Pedalboard)
3) PIANO (SYNT) SEQUENCER or Arranger SOLOIST
. 4) RHYTHM.
Неге is the procedure for selecting the sections to which the MIDI messages will be addressed:
1) Press PATTERN
2) Press FUNCTION
3) Press repeatedly FUNCTION until obtaining RECEIVE. On the Display the sign re will appear.
4) Use the buttons 1, 2, 3 and 4 of the push-button panel 1-8 in order to select the respective 4
sections that you wish to include in Reception.
5) Press again PATTERN for recording these sections.
-12-
