ENGLISH
MODELS AND CHARACTERISTICS
900CT-24M The control unit is equipped with: a system to prevent deformation - encoder sensi-
tivity regulation - motor deceleration - motor brake - magnetic limit switch sensors - phototest (can
be bypassed)
TECHNICAL DATA CT-24M
POWER SUPPLY 230Vac/50Hz - 24Vac 80VA
MAX. MOTOR LOAD 120W
ACCESSORIES POWER SUPPLY OUTPUT 24Vac 400mA
BATTERY TYPE (NOT SUPPLIED) Rechargeable 2 x 12V 1,3Ah
BATTERY AUTONOMY 4 cycles within 5h
OPERATING TEMPERATURE -20°C/+60°C

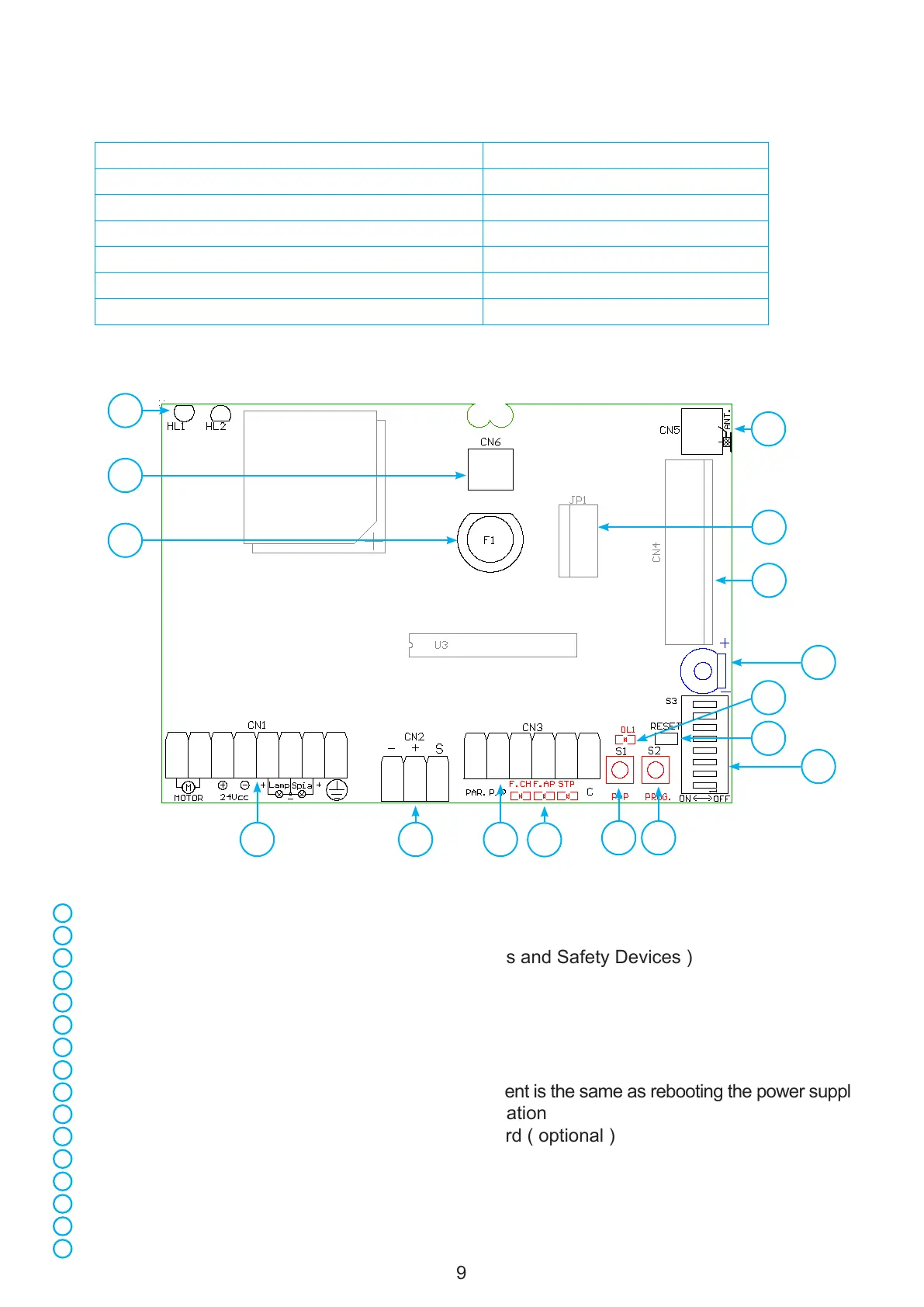

OVERALL VIEW
DESCRIPTION
CN1 Terminal board for 24V connections. ( Motor – Blinkers – On light )
CN2 Encoder connector
CN3 Terminal board for output connections ( Controls and Safety Devices )
Led Inlet safety light: Light on = inlet closed
S1 P/P (Pass/Pass) Button
DL1 Programming light
S2 PROG button for programming
S3 Dip-switch setting functions
Control Unit Reset. Short circuiting the 2 pins for a moment is the same as rebooting the power supply
T1 Trimmer to regulate encoder sensitivity to deformation
CN4 Connector for snap-in receiver radio circuit board ( optional )
CN5 Antenna connector
JP1 Battery charger module
HL1 HL2 Magnetic limit switch sensors
CN6 power supply
F1 line protection 230Vac 10A delayed
