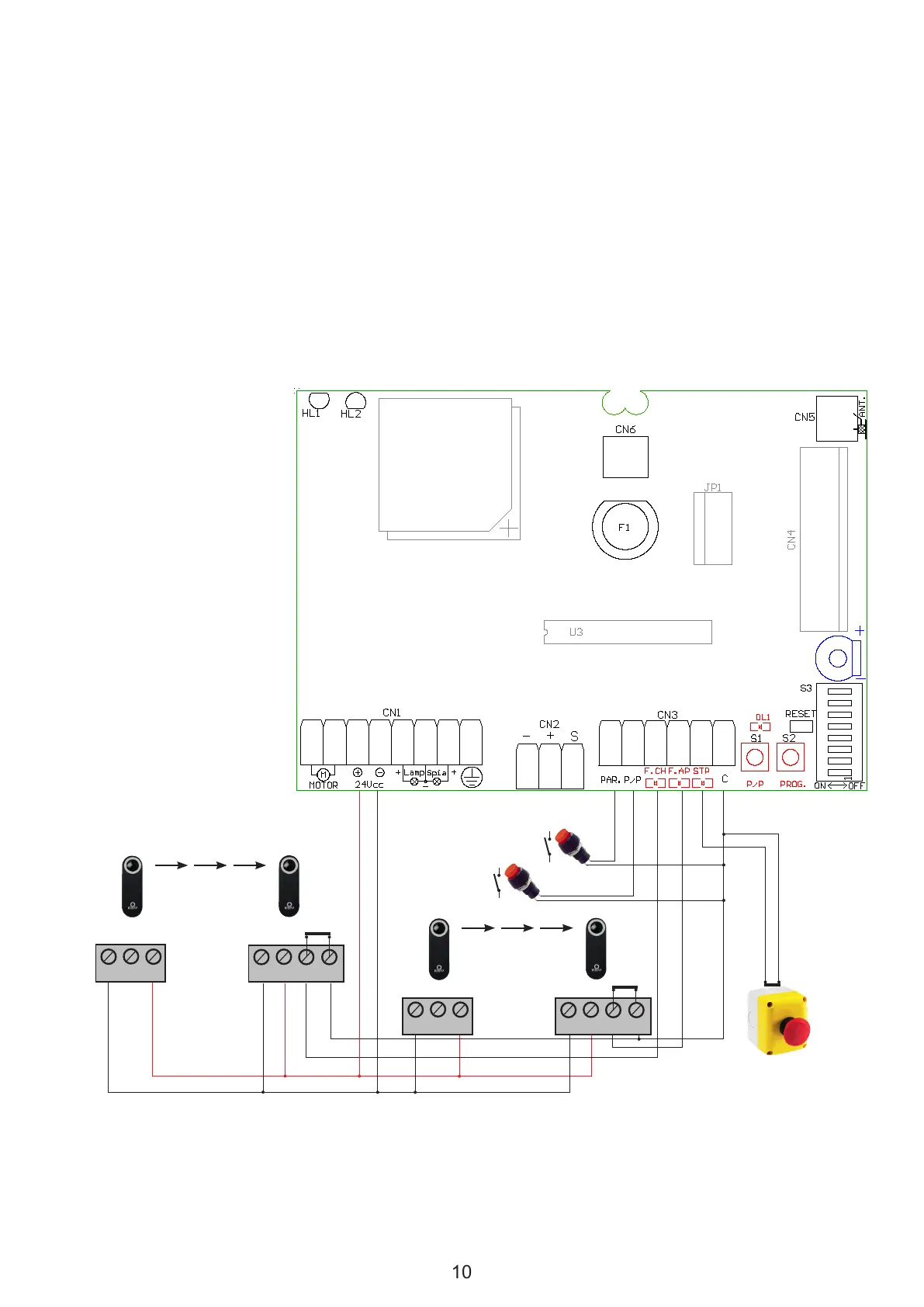

CN1
1) 24V motor
2) 24V motor
3) 24V Powers auxiliary devices
4) 24V Powers auxiliary devices
5) Blink. Power supply
6) common
7) Warning light / PhotoTest
8) ground
CN2
9) - Motor Encoder (white)
10) + Motor Encoder (brown)
11) S Motor Encoder (green)
CN3
12) PED Pedestrian Opening
13) P/P Pass Pass Opening
14) F.CH Photo Safety Closed
15) F.AP Photo Safety Open
16) STP STOP Safety device
17) C common
CN4 Snap-in receiver
CN5 Receiver Antenna
CN6 Secondary Transformer Power Supply
NA PED
NA P/P
NC STOP
3
TX
RX
3
4
NC
F1
3
TX RX
3
4
NC
F2
1
2
1
2
1
2
1
2
24Vac/dc
- +
24Vac/dc
- +
24Vac/dc
- +
24Vac/dc
- +
1 2 3 4 5 6 7 8
9 10 11
12 13 14 15 16 17
