18
EN

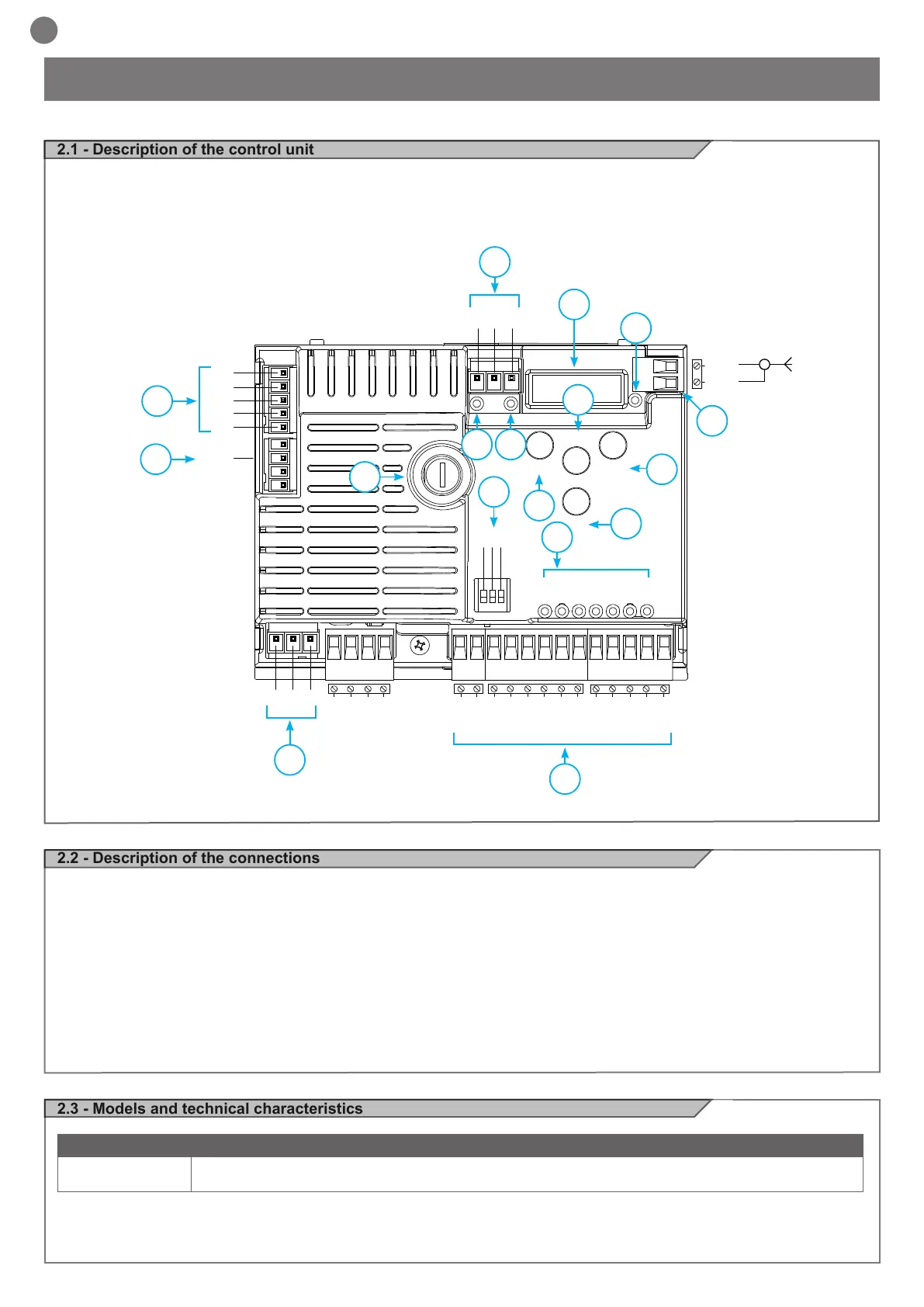

2.1 - Description of the control unit
The CT10224 control unit is the most modern, efcient system for
the control of Key Automation motors for the electric opening and
closure of sliding gates, up-and-over doors and electromechanical
barrier.
2.2 - Description of the connections
1- Motor power supply connections and encoder
2- Transformer power supply connections
3- 24Vdc and 24Vac output connections to controls and safety
devices
4- Connector for battery charger KBP
5- Limit switch connector
6- Functions display
7- Safety device dip switch
8- Fuse 2A slow-acting
9- STOP-PH2-PH1-OPEN-CLOSE-PED-SBS safety led and led
input led
10- Limit switch indicator LED LSC
11- Limit switch indicator LED LSO
12- STEPPING SBS button
13- UP + button
14- MENU button
15- DOWN - button
16- Antenna
17- KEY led
2.3 - Models and technical characteristics
All other, improper, use of the control unit is forbidden. The CT10224
has a display allowing easy programming and constant monitoring
of the input status; the menu structure also allows easy setting of
working times and operating modes.
2 - INTRODUCING THE PRODUCT
CODE DESCRIPTION
900CT10224 24V control unit for sliding gates, up-and-over doors or electromechanical barrier
NEG
PH-POW
STOP
STOP
STOP
STOP
PH2
PH1
OPEN
CLOSE
PED
SBS
PH2
PH1
PH 2
COM
FLASH
IND
LED
SHIELD
UP
MENU
SBS
DOWN
(RADIO)
ANT
24 VAC
24 VAC
PH 1
OPEN
CLOSE
SBS
PED
COM
POWER SUPPLY
NEG
ENC
V +
M -
M +
BATTERY
LS 1
LS 2
KEY
COM
1
4
16
8
2
5
7
9
6
17
3
10
11
13
12
15
14
