Keyscan CA4500B Technical Instructions
5
of 1
of 1 rating
140 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Keyscan Inc.
–
Techn
ical Guide (PC10
9x - 04
.1
5)
122

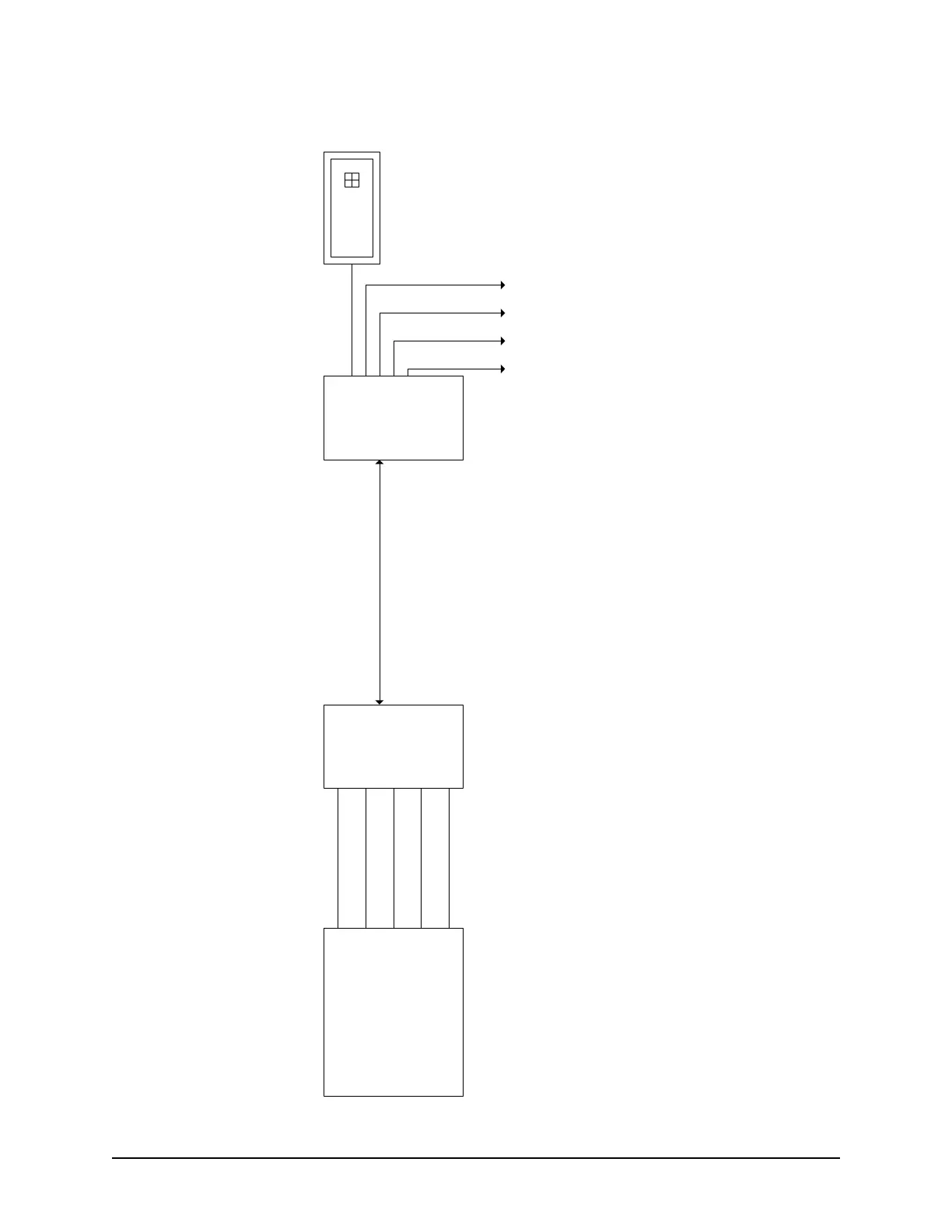

Figure
84
–
Wiegand
Extender Over
view
Reader
Exit Device
Transmitter
WIEEX2 -Tx
Receiver
WIEEX2 - Rx
ACU
Auxiliary Input
Reader
Exit Device
Auxiliary Input
Communication
Tx-Rx
Door Unlock Output
Door Contact
Door Contact
Door Unlock Output
KI-00223E-06-12
