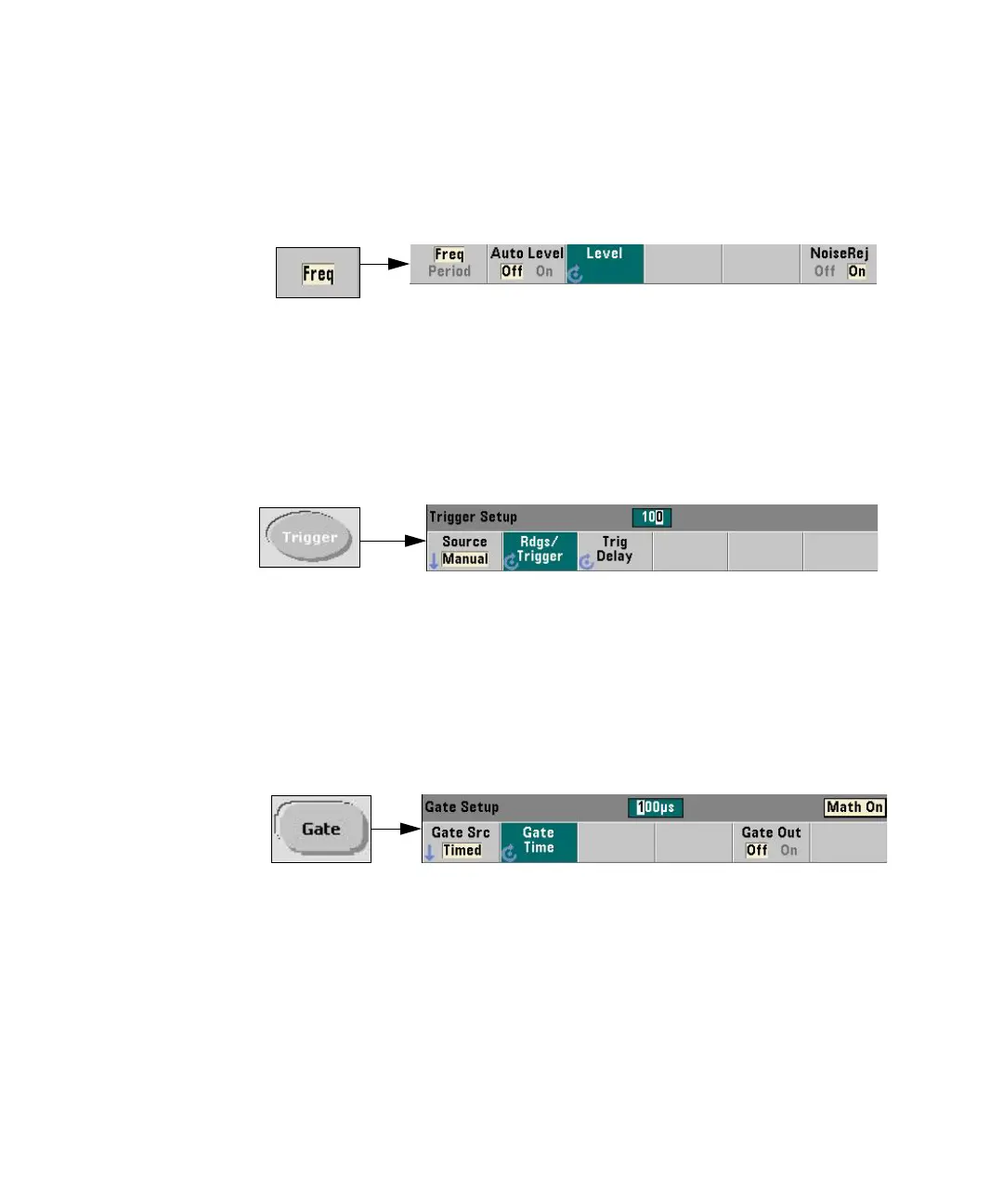

5 Press the Freq softkey.
– The following softkeys are displayed:
6 Press and set:
– Noise Rejection: Off
7 Press the Trigger key.
– The following softkeys are displayed:
8 Press and set:
– Trigger Source: Manual
– Wait For Trig is displayed.
– Rdgs/Trigger: 100
9 Press the Gate key.
–The Gate softkeys are displayed:
10 Press and set:
– Gate src: Timed
–Gate time: 10 mSec
– Gate out: On
–Polarity: Norm
