Cursors 13

Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide 207

Put the X1 cursor on one side of a pulse and the X2 cursor on the other side of the

pulse.

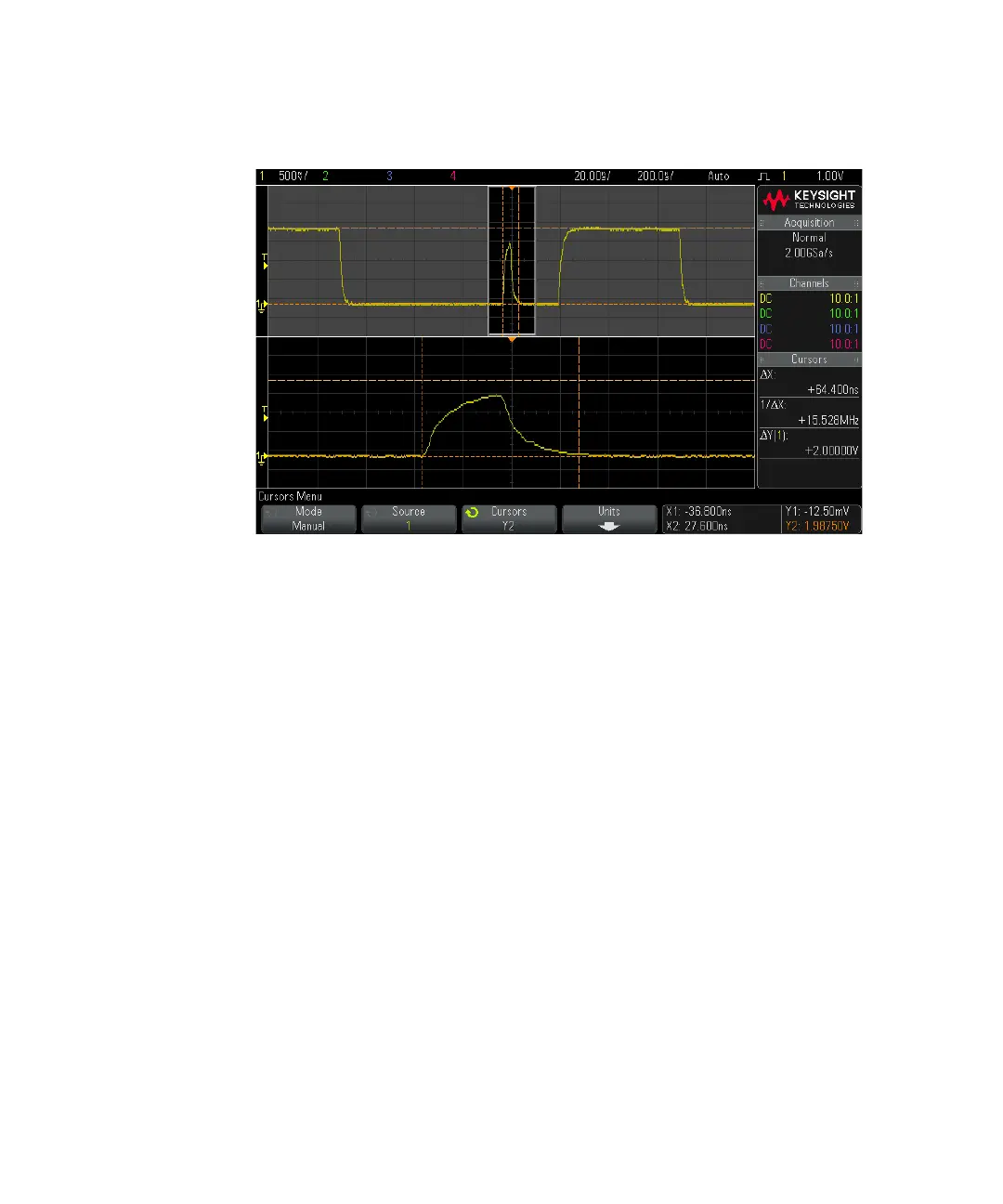

Figure 42 Cursors track Zoom window
