Web Interface 21
Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide 319
2 When the oscilloscope's web interface is displayed, select the Get Image tab
from the left side of the Welcome screen. After a delay of several seconds, the
oscilloscope's screen image will be displayed.
3 Right-click on the image and select Save Picture As... (or Print Picture...).
4 Select a storage location for the image file and click Save.
Identification Function
The Identification web interface feature is useful when trying to locate a specific
instrument in a rack of equipment.
1 Access the oscilloscope's web interface (see "Accessing the Web Interface" on
page 312).

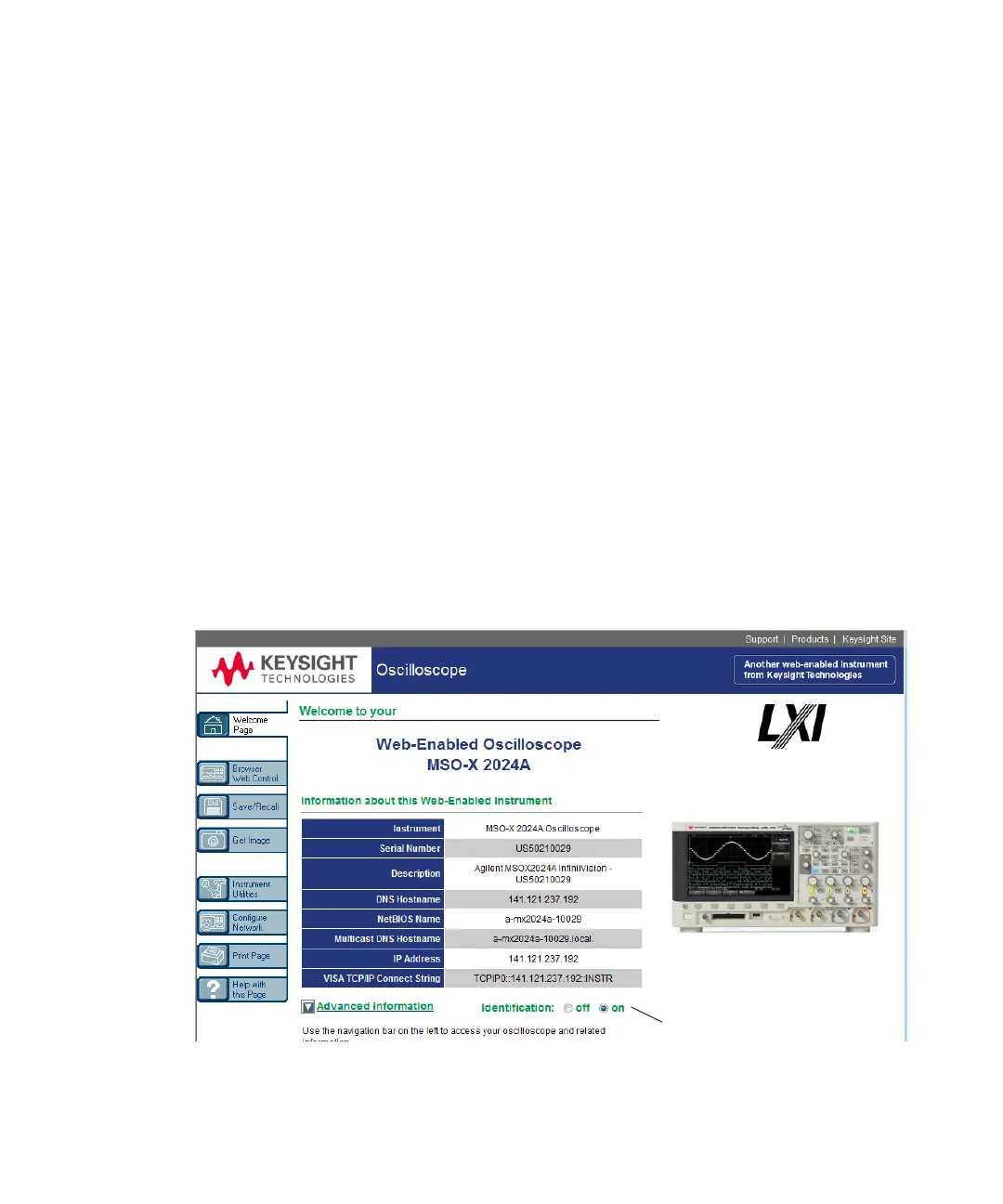

2 When the oscilloscope's web interface Welcome Page is displayed, select the
Identification on radio button.
An "Identify" message is displayed on the oscilloscope; you can either select
Identification off or press the OK softkey on the oscilloscope to continue.
