24 FlexRay Triggering and Serial Decode
2 If the decode line does not appear on the display, press the [Serial] key to turn it
on.
3 If the oscilloscope is stopped, press the [Run/Stop] key to acquire and decode
data.
You can use the horizontal Zoom window for easier navigation of the acquired data.
See Also • "Interpreting FlexRay Decode" on page 366
• "FlexRay Totalizer" on page 367
• "Interpreting FlexRay Lister Data" on page 368
• "Searching for FlexRay Data in the Lister" on page 368

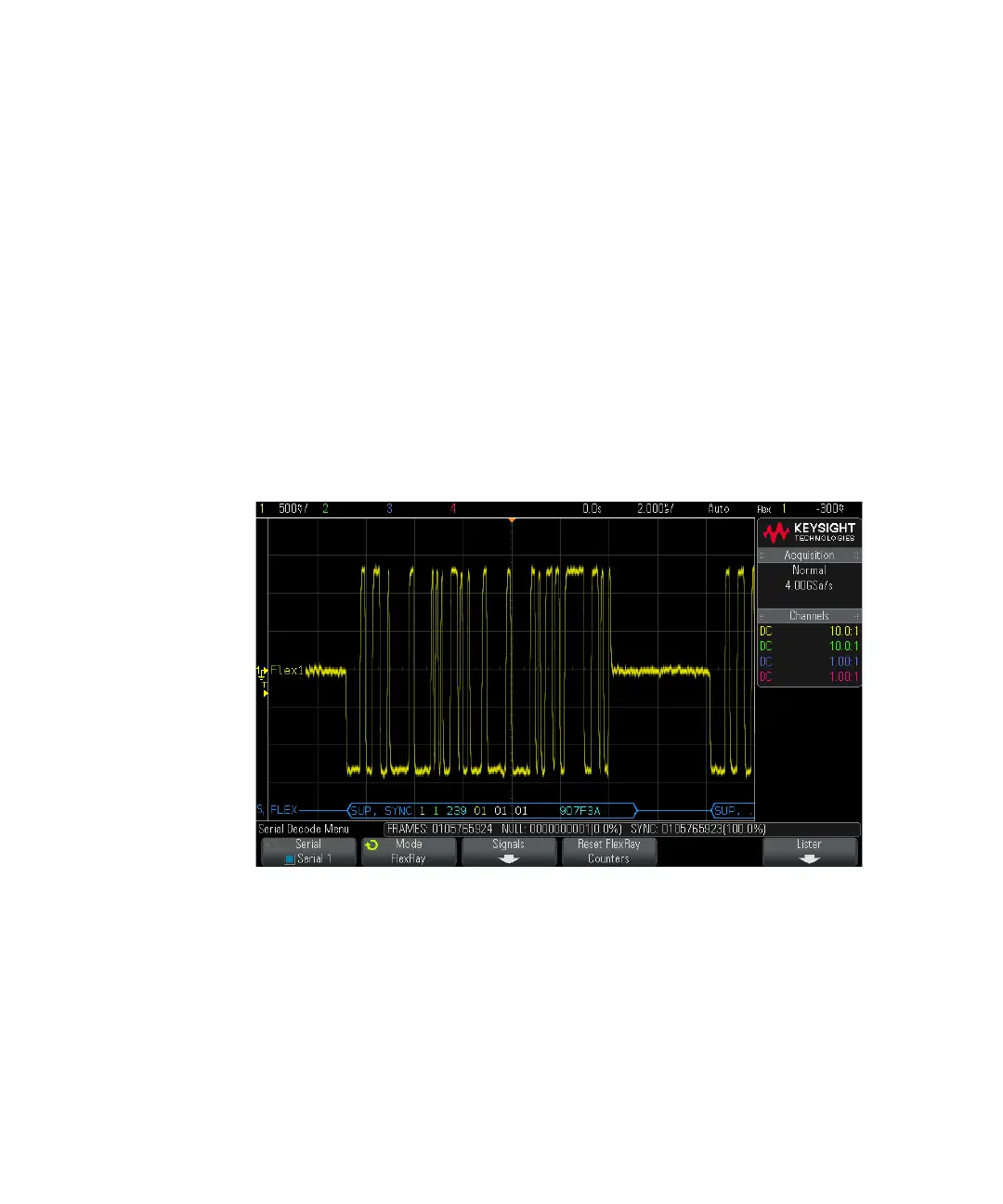

Interpreting FlexRay Decode
• Frame type (NORM, SYNC, SUP, NULL in blue).
• Frame ID (decimal digits in yellow).
• Payload-length (decimal number of words in green).
• Header CRC (hex digits in blue plus red HCRC error message if invalid).
• Cycle number (decimal digits in yellow).
• Data bytes (HEX digits in white).
