Tests, Adjustments, and Troubleshooting
System Verification
- Results of the measurements. Labeled as A in Figure 2-12.
- Data measured at the factory from the verification kit. Labeled as B in Figure
2-12.
- Upper and lower limit points as defined by the total system uncertainty
system. Labeled as C in Figure 2-12.

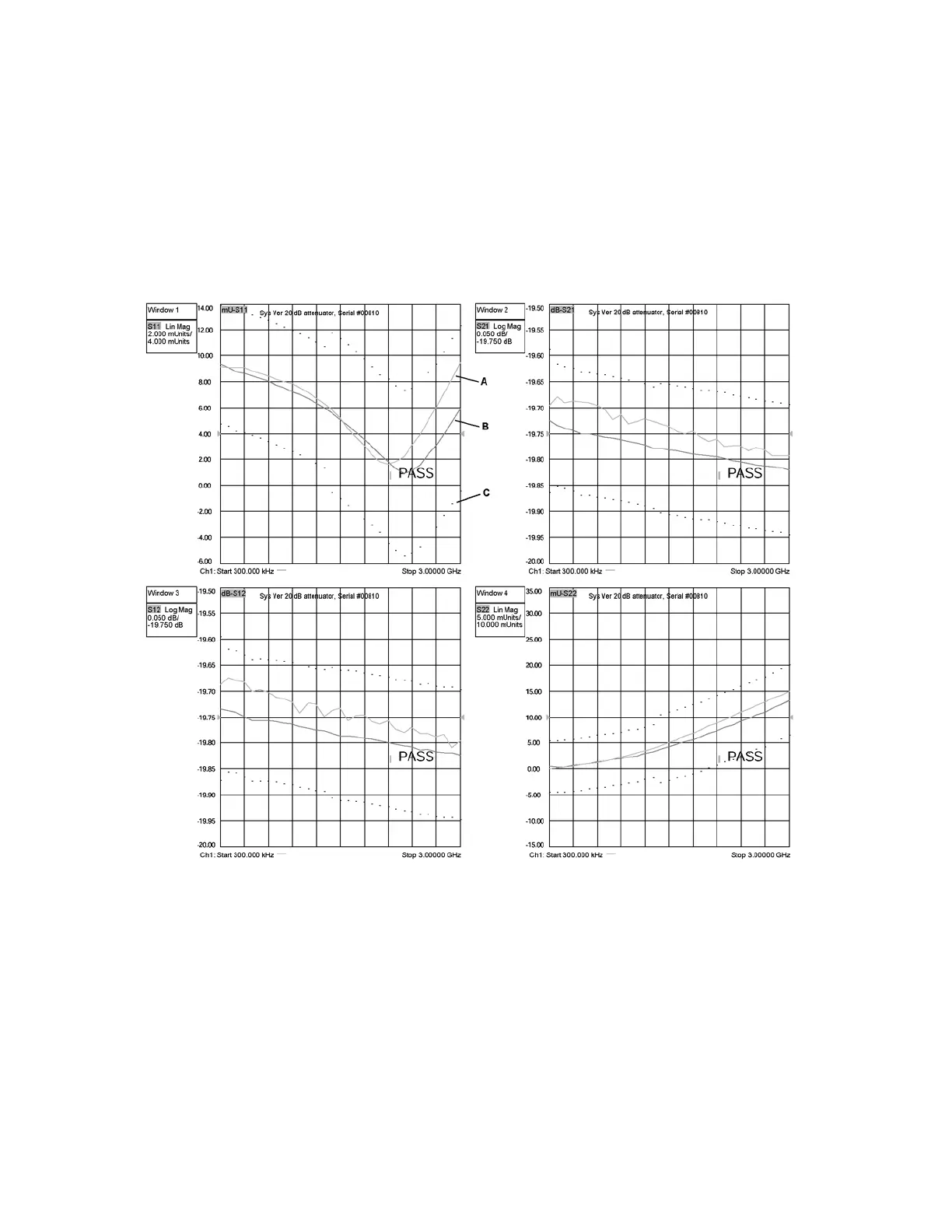

Figure 2-12 Example of Printed Graphical Verification Results
