10 Installation Note N9000-90039
Option T03 and T06, Tracking Generator Upgrade Kit

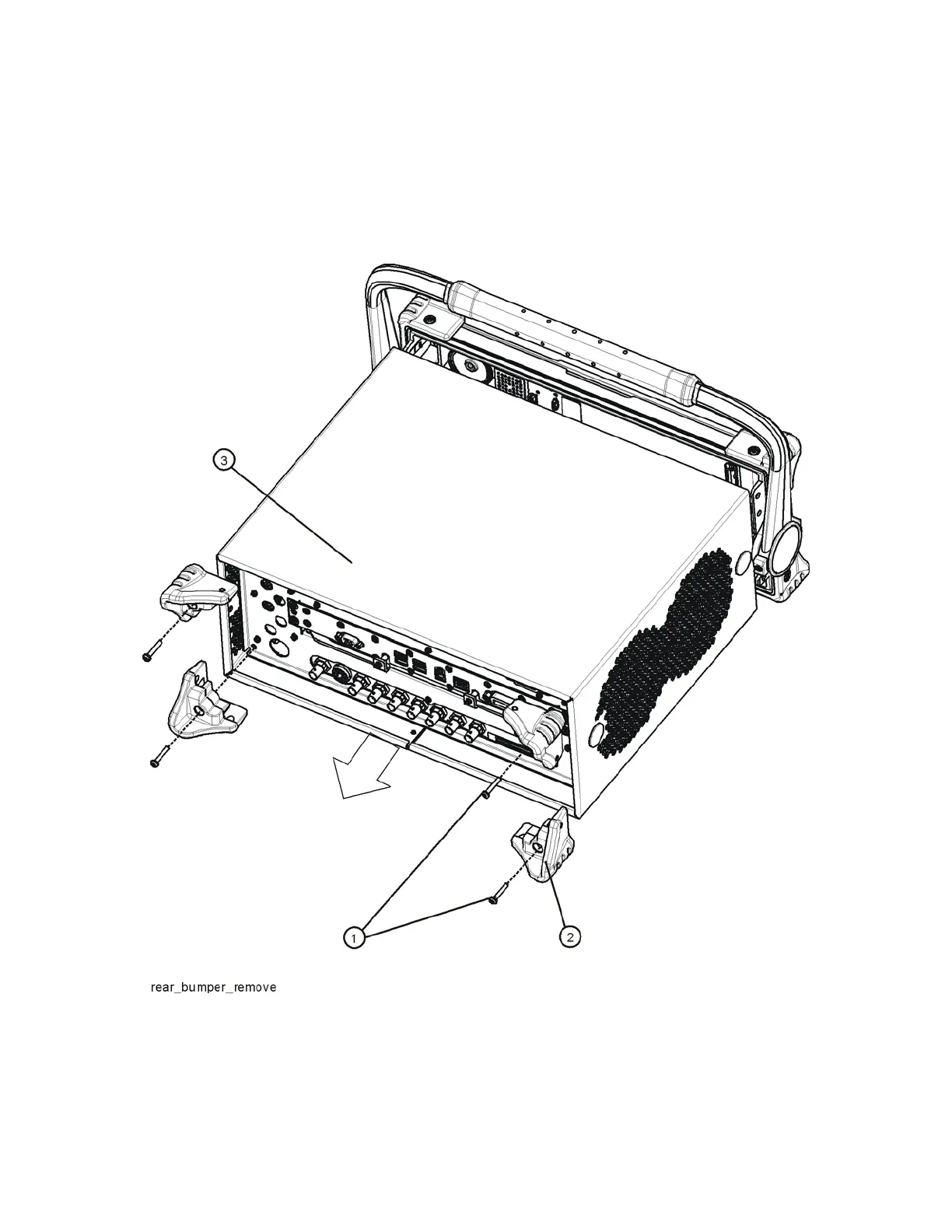

5. Refer to Figure 3. Using the T-20 driver, remove the four screws including washers (1) that
hold the rear bumpers (2) in place. The rear bumpers will not be re-used.
6. Pull the instrument cover (3) off towards the rear of the instrument. The instrument cover will
not be re-used.
Figure 3 Option PRC Instrument Outer Case Removal
