Keysight Technologies N9010B-526 Installation Note

22 Installation Note N9030-90077
Option BBA, Analog Baseband I/Q Inputs Upgrade Kit
2. Refer to Figure 15. Line up the holes and carefully attach the N9020-80166 overlay to the LED
board.
3. Install the LED board with overlay attached (1) into the front frame.
4. Secure the LED board with 0515-1946 screws (2) in two places. Torque to 9 in-lbs.

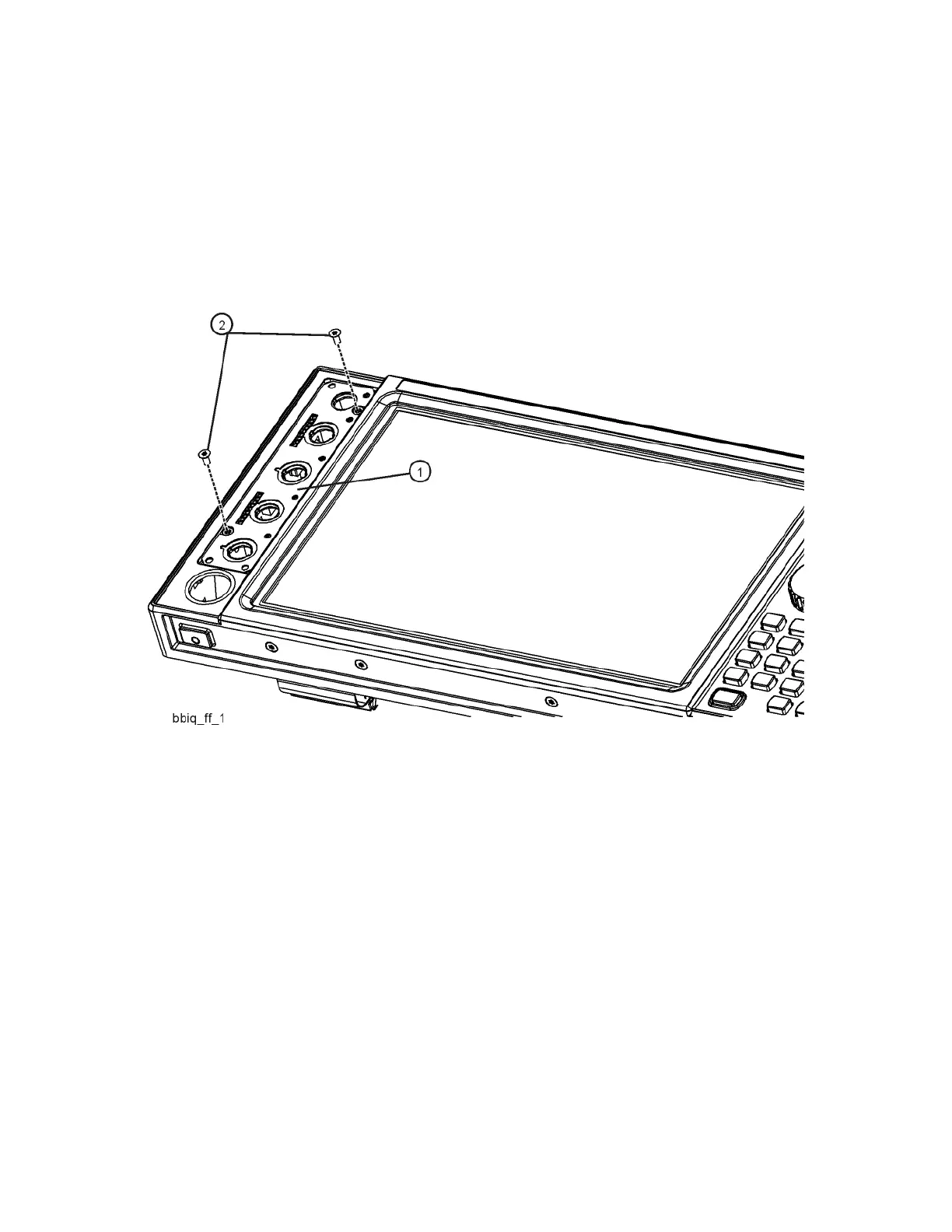

Figure 15 LED Board Installation
