Installation Note N9030-90077 25
Option BBA, Analog Baseband I/Q Inputs Upgrade Kit
9. Refer to Figure 18. Secure BBIQ Interface Board to the side of the front frame with a single
0515-2032 screw (1). Torque to 9 in-lbs.

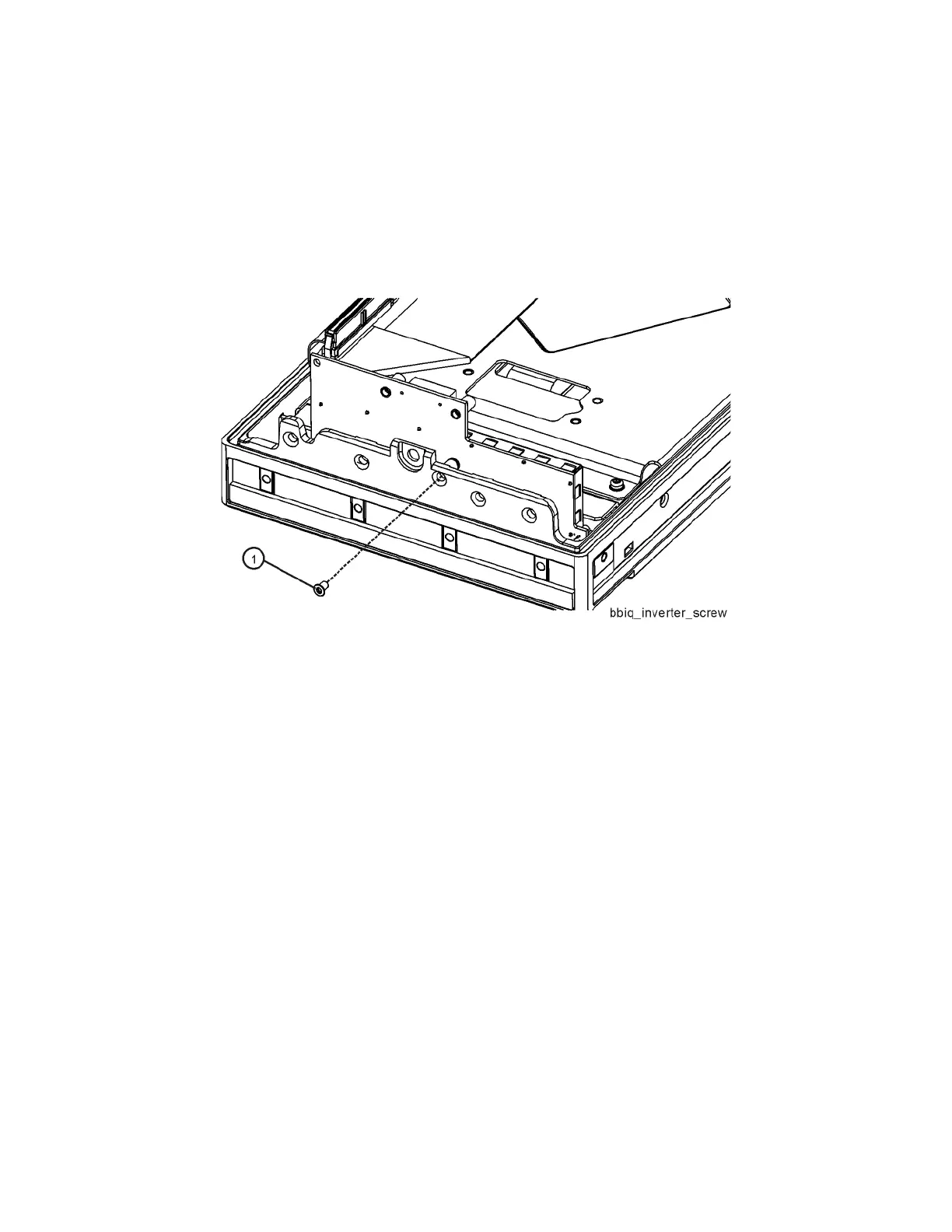

Figure 18 BBIQ Interface Board Side Screw Installation
